Sanus Systems VMPL Assembly Instructions

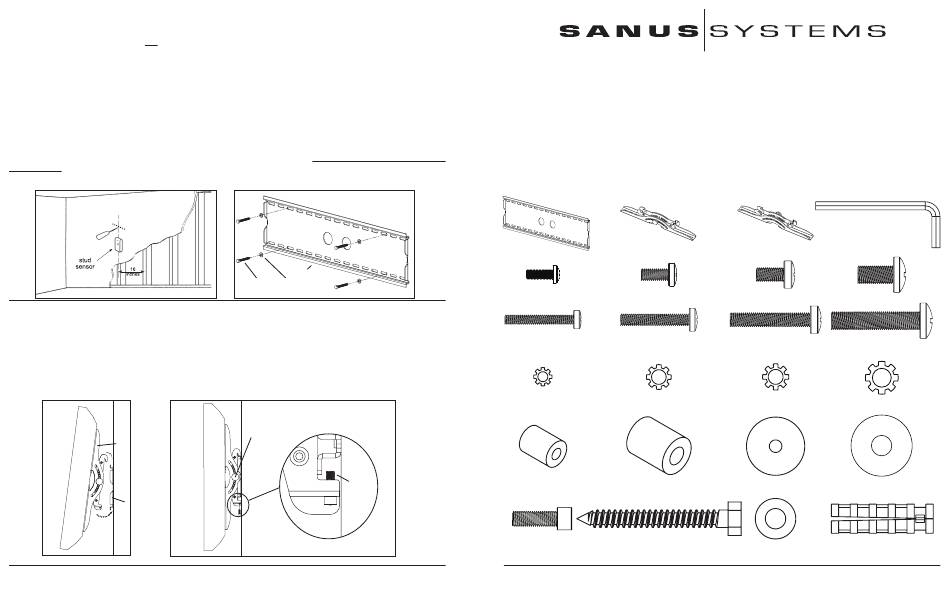

Step 3: Mounting the Wall Plate: Wood Stud, Brick, Solid Concrete, and Concrete Block mounting options are provided.
Wood Stud mounting:
The Wall Plate (a) must be mounted to two wood studs at least 12" apart. Use a high quality stud sensor to locate two adjacent
studs. It is a good idea to verify where the studs are located with an awl or thin nail shown in Diagram 3a. Pre-drill a 2.5" deep hole at
the desired height in each stud using a 3/16" drill bit. Make sure these holes are in the center area of the studs and level with each other.
Use the Wall Plate as a template to mark the location of the second hole in each stud. Drill 2.5" deep holes using the 3/16" drill bit in the
marked locations. Attach the Wall Plate to the wall using the four 1/4 x 2.5" Lag Bolts (v) and four Lag Bolt Washers (w). Make sure
the Wall Plate is oriented so the flat surface in the center of the plate is against the wall and that a set of Lag Bolts is on each side of the
two large holes in the center as shown in Diagram 3b.
Brick, Solid Concrete and Concrete Block mounting:
Use the Wall Plate (a) as a template to mark 6 hole locations on the wall. The outer holes must fall to left and right of the two holes in
the middle of the plate. Three in the top row of slots and three more in the bottom row. Make sure these holes are level and there is at
least 6" between any two holes. Pre-Drill these holes with a 1/2" masonry bit to at least 2.5" in depth. Insert a Concrete Anchor (x) into
each of these holes. Make sure the anchor is seated completely flush with the concrete surface even if there is a layer of drywall or other
material in front. Attach the Wall Plate to the wall using 6 Lag Bolts (v) and 6 Lag Bolt Washers (w).
Diagram 3a
Step 4: Attaching Monitor to Wall Plate and adding Safety Bolts
Warning: Some televisions may require 2 people to lift! Sanus is not responsible for personal injury or product damage.
First hook the Monitor Brackets (b,c) over the top of the Wall Plate (a), then let the bottom of the Monitor Brackets rotate in under
the bottom of the Wall Plate as shown in diagram 4a. Insert the Safety Bolts (u) into the threaded holes in the bottom of the Monitor
Brackets. Tighten them with the Allen Key (d) so that they sit behind the bottom tab on the Wall Plate as shown in the Detailed View of
Diagram 4b. Finally loosen the knobs to set the desired tension and you are free to adjust your new flat panel TV.
Diagram 4a
b,c
a
Sanus Systems 2221 Hwy 36 West. St. Paul, MN 55113
800.359.5520 www.sanus.com 8.17.05
Diagram 3b
a
v w
Diagram 4b
Detailed View
Knob
u
Assembly Instructions for VMPL Flat Panel Wall Mount
Thank you for choosing a Sanus Systems Vision Mount Wall Mount. This product is designed to mount flat panel televisions weighing up to 175 lb. to
a vertical wall. It allows you to tilt your new television up to 15º without the use of tools.
Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified contractor or
contact Sanus at 800.359.5520 or www.sanus.com. We can quickly assist you with installation questions and missing or damaged parts. Replacement
parts for Sanus products purchased through authorized dealers will be shipped directly to you. Check carefully to make sure there are no missing or
defective parts. Never use defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specified by Sanus Systems. Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or
incorrect use.
Note: The supplied wall mounting hardware is not for steel stud walls or old cinder block walls. If you are uncertain about the nature of your wall,
consult an installation contractor. Sanus makes every effort to assure all necessary television mounting hardware is included. If the hardware you need
is not included please consult your local hardware store or call Sanus Systems.
Required Tools: 3/16 drill bit, 1/2" Masonry Bit for brick concrete or concrete block installations, wrench or socket, Phillips screw driver.
Supplied Parts: Hardware shown as actual size *Some parts not shown at same scale
(1) Wall Plate - a* (1) Left Monitor Bracket - b*
(4) M4 x 12 Bolt - e (4) M5 x 12 Bolt - f
(4) M4 x 30 Bolt - i (4) M5 x 30 Bolt - j
(4) M4 Lock Washer - m (4) M5 Lock Washer - n
(4) M4/M5 Spacer - q (4) M6/M8 Spacer - r
(2) Safety Bolt - u (6) Lag Bolt - v
Sanus Systems 2221 Hwy 36 West. St. Paul, MN 55113
800.359.5520 www.sanus.com 8.17.05
(1) Right Monitor Bracket - c* Allen Key - d*
(4) M6 x 12 Bolt - g (4) M8 x 16 Bolt - h
(4) M6 x 35 Bolt - k (4) M8 x 40 Bolt - l
(4) M6 Lock Washer - o (4) M8 Lock Washer - p
(8) M4/M5 Washer - s (4) M6/M8 Washer - t
(6) Lag Bolt Washer - w (6) Concrete Anchor - x
