Summary of Contents for Xylem TM 40

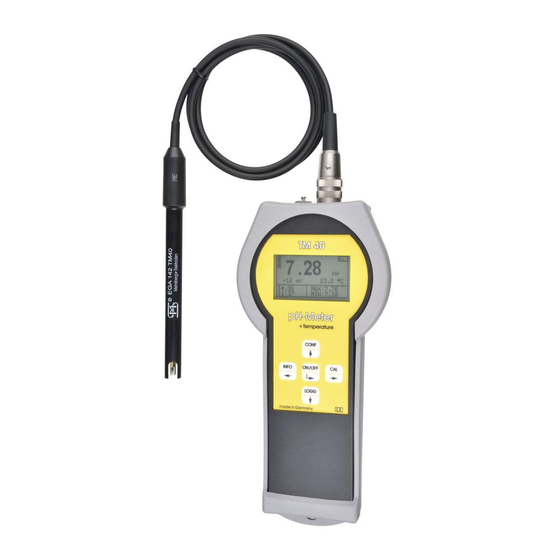

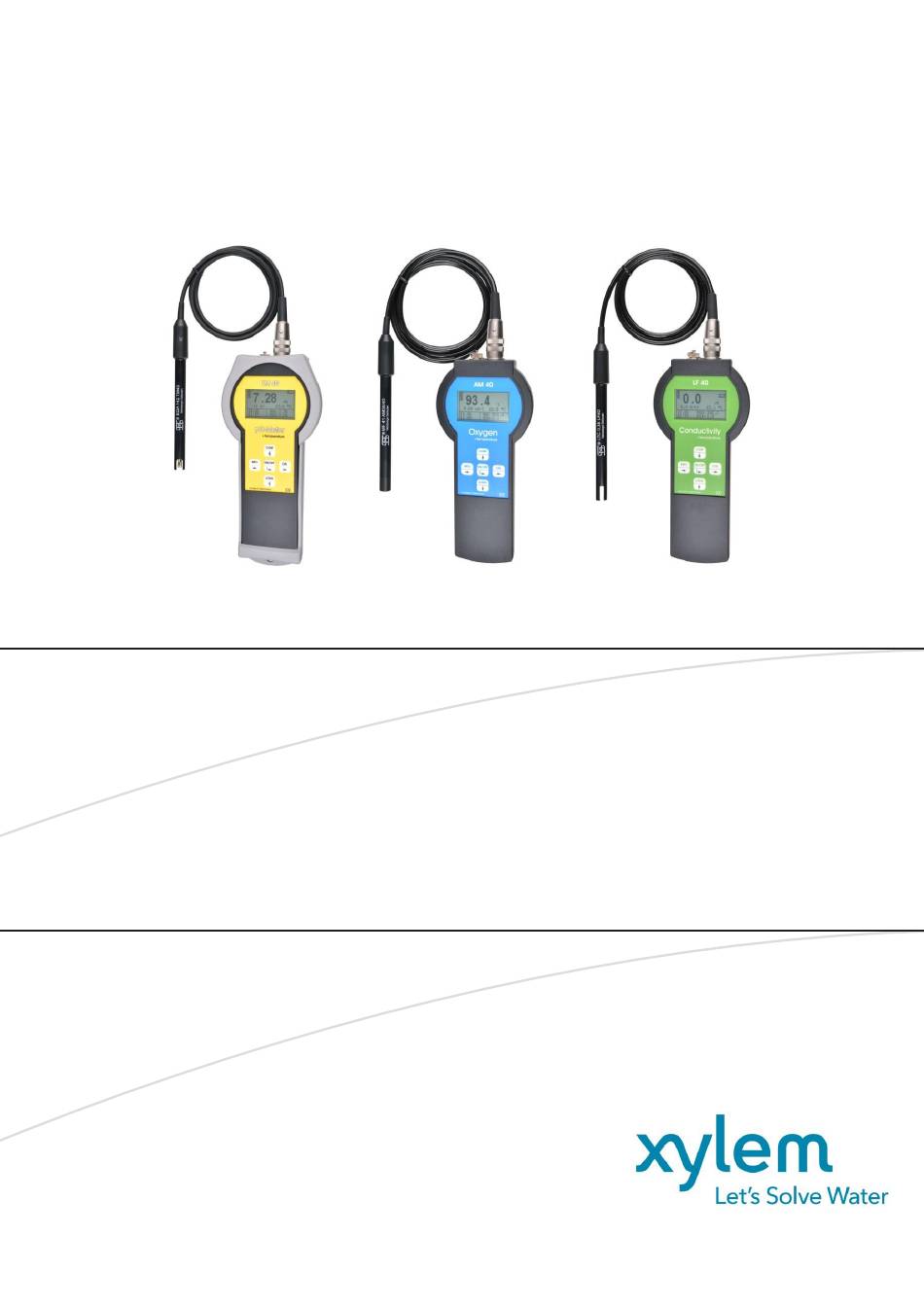

  • Page 1 2021-10-26 Operating Manual TM 40 AM 40 pH/Redox/ISE Meter Oxygen Meter LF 40 Conductivity Meter...
  • Page 2: Table Of Contents

    Data logger ............................ 9 Info ............................... 10 Interface HMG USB ..........................10 TM 40 ..............................11 Application Fields TM 40 ......................11 Composition TM 40 ........................11 Configuration TM 40 ........................11 7.3.1 Configuration of the fix temperature ................11 7.3.2...
  • Page 3 Configuration of the measuring range „meas. range“ ............ 19 9.3.2 Calibration conductivity ....................... 20 9.4.1 Data input ........................20 9.4.2 Settings of the temperature offset .................. 21 One-point-Calibration „One point“ .................. 21 9.4.3 Automatic calibration „Automatic“ ................... 21 9.4.4 9.4.5 Calibration error ......................
  • Page 4: Safety

    Safety This Operating Instructions Manual contains fundamental information that should be observed in connection with the installation, start-up, operation and maintenance of the instrument in connection with the sensor. Therefore, it is absolutely vital for the user to read this manual completly prior to working with it.
  • Page 5: Sockets

    Sockets 2 sockets for connecting the sensor and the”Interface HMG USB” are located on the front side of the instrument. Please use only the delivered original cable for the interface with the PC. For protecting the sockets against mois- ture and to avoid corrosion, the sensor should always be connected to the instrument and the „Interface HMG USB”...
  • Page 6: Button, Display, Menu Structure, Password Protection

    Button, Display, Menu structure, Password protection 3.1 Operation elements The instrument features easy operation by means of 5 buttons only and a plain text menu structure. Graphic display On / Off Enter Configuration Navigation <up> Information Calibration Navigation <left> Navigation <right> Data logger Navigation <down>...
  • Page 7: Menu Structure

    3.2 Menu structure Passwort Konfigurieren pass word configuration TM40 Datenlogger Temperatur Sensortyp Allgemein zurueck data logger temperature sensortype general back Intervall Festtemp. Display intervall fixed temp. display Automatik Temp.-Wert Backlight Redox automatic temp.-value backlight zurueck Kontrast disable back contrast AM40 zurueck Hauptanzeige enable...
  • Page 8: Configuration The Basic Settings „General

    Configuration the basic settings „General” The entire structure of the menu is displayed graphically in  chapter 3.2. Under „General“, the following device-relevant basic settings can be configured: Display Password Clock Language Off time Back 4.1 Configuration Backlight On the device the backlight for display can be switched on or off. For configuration of the backlight do the following steps: 1.
  • Page 9: Configuration Language

    4.4 Configuration language For configuration of the language do the following steps: 1. Open menu „general“ 2. Select „language“ and enter the language Select the position you would like to use by using the buttons Press the -button to accept and save the entry. To cancel the input dialogue without saving the value press 4.5 Configuration off time You can set the time when the meter switches off automatically.
  • Page 10: Info

    Menu structure data logger Back to the measurement value 1 period Next back periode Next Measurement Measurement value Info value Info Info Menu structure Info CAL INFORMATION MIN/MAX INFO MESSMODUS RESET MIN/MAX Interface HMG USB For comfortable reading out of the data logger and configuration the device, a download of the software „DinModule”...
  • Page 11: Tm 40

    BK plug) can be used in connection with TM 40. The isopotential point (25 °C) of the used electrodes must be pH 7. Plati- num combination electrodes with Ag/AgCl reference system with 3 mol/l KCl electrolyte are recommended for redox potential measurements (e.
  • Page 12: Configuration Of The Sensor Type

    7.3.2 Configuration of the sensor type The TM 40 can be connected with pH, ORP or ISE electrodes. The used sensor type has to be configured in the device. For configuration of a sensor type do the following steps: 1. open menu „sensortype“...
  • Page 13: Settings Of The Temperature Offset

    The automatic calibration of the pH measurement is a two-point type and requires knowledge of what buffer solu- tion group you want to use. The TM 40 offers the following buffer solution groups for calibration: NBS standard buffer solution as per DIN 19266: pH value at 25 °C 1.68 / 4.01 / 6.86 / 9.18 / 12.45 Technical buffer solution as per DIN 19267: pH value at 25 °C 1.09 / 3.06 / 4.65 / 6.79 / 9.23...
  • Page 14: Calibration Error

    As a result, you will now be given the new calibration values that will be save in the device. 7.4.5 Calibration error In the TM 40 predefined ranges for the calibration values are stored. If the determined calibration value is out of the range the message !Out of limit! appears in the calibration information CAL INFORMATION. The deter- mined calibration value will be stored nevertheless, so that the measuring and controlling is secured.
  • Page 15: Data Input

    7.6.1 Data input Data input stands for the input of the specific values of the connected sensor, for example as determined at the laboratory before. Select the corresponding calibration value whose settings you want to change by. An input dialogue will now ena- ble you to change the values within corresponding limits.
  • Page 16: Composition Am 40

    the oxygen content in surface water, sewage and for application in wastewater treatment. AM 40 features simul- taneous measurement of oxygen and temperature, high measuring accuracy, multi function display, easy air cali- bration, integrated data logging system and a rugged watertight IP 65 enclosure. 8.2 Composition AM 40 AM 40/Set comes completely with the accompanying dissolved oxygen sensor MF41N/AM40 and accessories in a protective case.
  • Page 17: Calibration Oxygen

    Select the position you would like to use by using the buttons . Press the -button to accept and save the entry. To cancel the input dialogue without saving the value press 8.4 Calibration oxygen Menu structure Passwort Kalibrieren pass word calibrate Eingabe Temp.Offs.
  • Page 18: Single-Point Calibration „One Point

    8.4.3 Single-Point Calibration „One point“ Calibrate the measuring signal at this one point using a defined calibration solution or a known set point value, e. g. determined by a separate method or by means of another laboratory/field instrument. At first, you will be prompted to dip the sensor into the corresponding calibration medium.
  • Page 19: Configuration Lf 40

    9.3 Configuration LF 40 The entire structure of the menu is displayed graphically in  chapter 3.2. Open with + password the configuration menu. Select the menu item you would like to configuration. data logger temperature meas.range general back 9.3.1 Configuration of the fix temperature The analysis parameter conductivity can be calculated with a temperature compensation.
  • Page 20: Calibration Conductivity

    9.4 Calibration conductivity Menu structure Passwort Kalibrieren pass word calibrate Eingabe Temp.Offs. Einpunkt Automatik zurueck input temp.offs. one point automatic back Zellkonst. cell const. LIN TempKoef LIN TempCoef Kabeloffset cable offset TDS Faktor TDS factor zurueck CAL INFORMATION back Open with + password the calibration menu.
  • Page 21: Settings Of The Temperature Offset

    Select the position you would like to change by using the buttons and change with Press the -button to accept and save the entry. To cancel the input dialogue without saving the value press 9.4.2 Settings of the temperature offset This menu item enables you to set a temperature value offset.
  • Page 22: Calibration Error

    ABS, IP 65 Dimensions 200 x 95 x 40 mm (B x H x T) Weight 290 g incl. batteries Measuring range TM 40 pH -2.00...16.00, -1999...1999 mV Temperature: -10.0...100.0 °C Measuring range AM 40 0...200.0 %, 0...20.00 mg/l Temperature: -10.0...100.0 °C 0...200.0 µS/cm, TDS 0 …200 mg/l...
  • Page 23: Delivery Volume

    11 Delivery volume TM 40/Set - pH- / Redox- / ISE- / temperature- pocket meter TM 40, incl. batteries - pH- / temperature- sensor EGA142-K010-U-X - case with accessories (buffer solution, KCl-solution) - Manual TM 40 - pH- / Redox- / ISE- / temperature- pocket meter TM 40, incl. batteries...
  • Page 24: Service And Returns

    Our products and services move, treat, analyze, monitor and return water to the en- vironment, in public utility, industrial, residential and commercial building services settings. Xylem also provides a leading portfolio of smart metering, network technologies and advanced analytics solutions for water, electric and gas utilities.
