Data logger

The meter has an integrated ring memory data logger with real-time clock for 4,000 data sets
(date, time, main measured value, secondary measured value, measuring temperature).
The saved data can either be viewed directly on the display or read via the USB interface.
(CONF) will take you to the menu item "Configuration" and on to the submenu item "Data logger".
The entire structure of the menu (CONF) is displayed graphically for each meter.
Lab 745 see  8.4, Lab 845 see  9.4, Lab 945 see  10.4
5.1

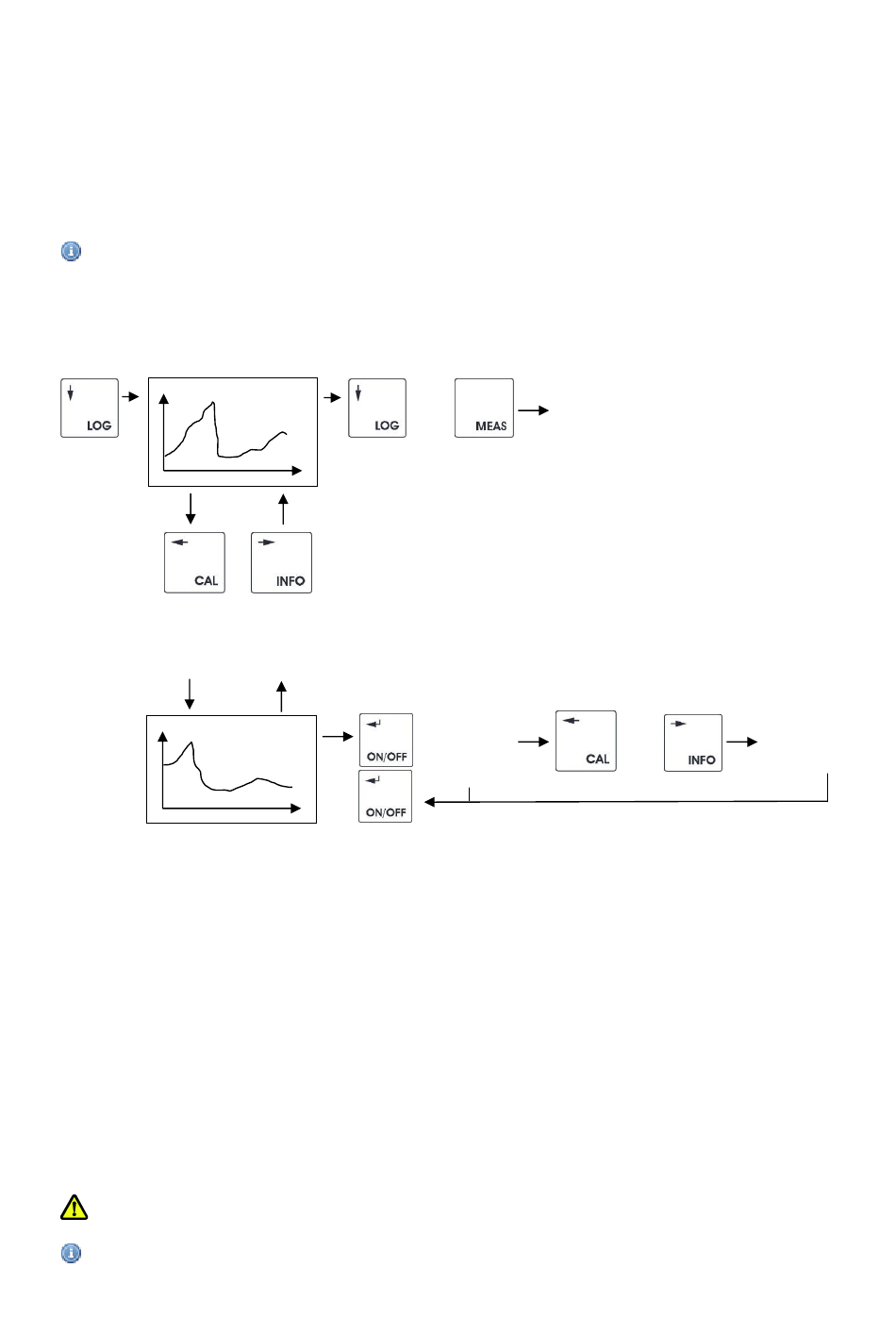

Menu structure data logger

Back 1
period
5.2

Interval

You can set up the memory intervals in the submenu point "Interval".
Via (INFO) or (CAL) you select the position to change.
Via (CONF +1) or (LOG -1) you change the position.
(ON/OFF) confirms and saves your setting.
(MEAS) terminates the entry dialog without transferring the value.
5.3

Automatic

You can set up the automatic function of the data logger in the submenu item "Automatic".
Automatic function "Off"> the logger only logs while the device is switched on
Automatic function "On"> the logger logs with the device switched on or off
The correct setting of the real-time clock is required for the proper function of the data logger.
During the reading of the logger data, no further data is recorded!
Next period
(at the same time the power supply connected)!
or
Back to the measurement value
measurement
value Info
or
measurement
value Info
Next
