EE 4. PANEL DESCRIPTION

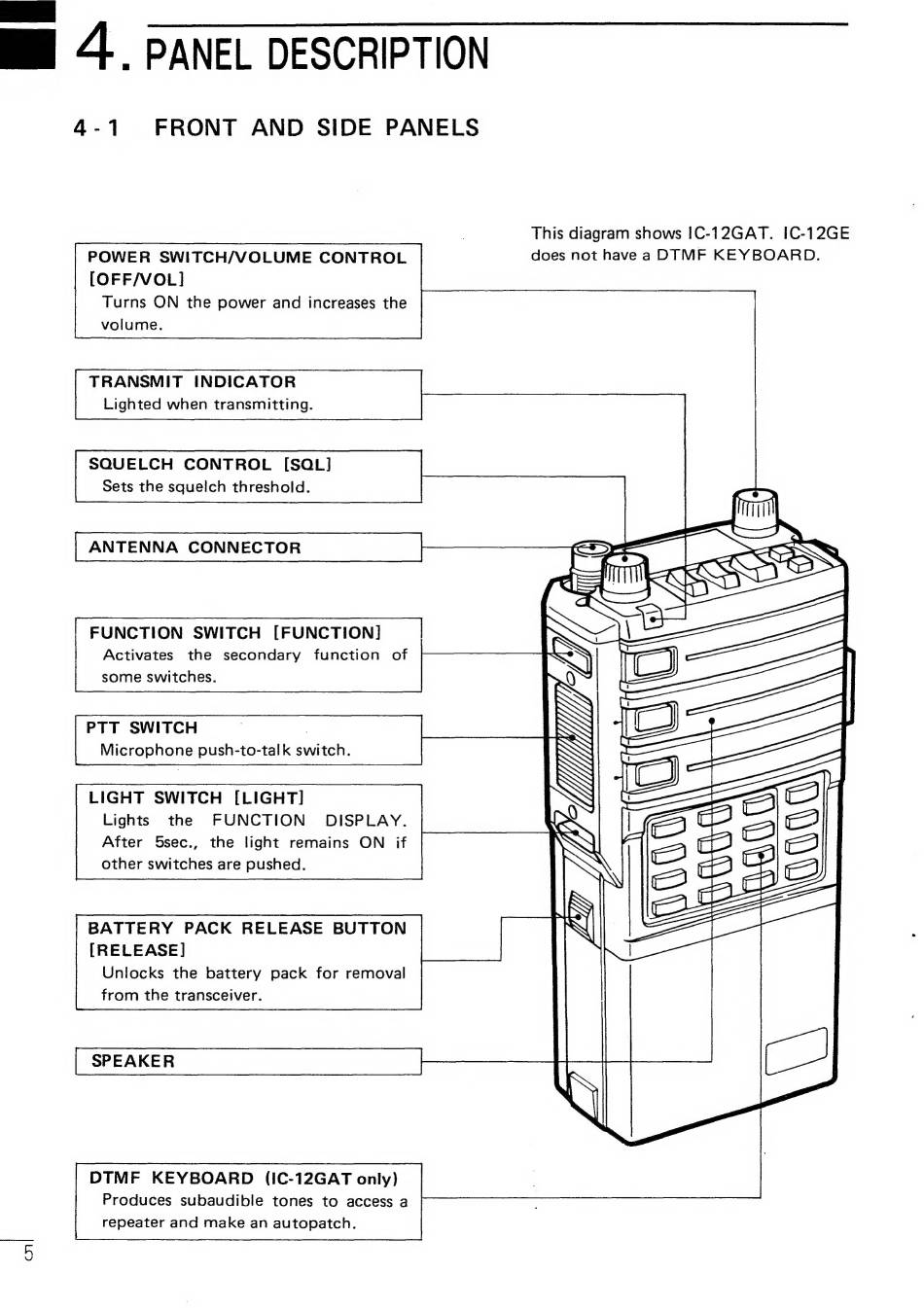

4-1 FRONT AND SIDE PANELS
This diagram shows IC-12GAT. IC-12GE
POWER SWITCH/VOLUME CONTROL does not have a DTMF KEYBOARD.
[OFF/VOL]
Turns ON the power and increases the
volume.
TRANSMIT INDICATOR
Lighted when transmitting.
SQUELCH CONTROL [SQL]
Sets the squelch threshold.
ANTENNA CONNECTOR
FUNCTION SWITCH [FUNCTION]
Activates the secondary function of
some switches.
PTT SWITCH l
Microphone push-to-talk switch.
LIGHT SWITCH [LIGHT]
Lights the FUNCTION DISPLAY.
After 5sec., the light remains ON if
other switches are pushed.
BATTERY PACK RELEASE BUTTON
[RELEASE]
Unlocks the battery pack for removal
from the transceiver.
DTMF KEYBOARD (IC-12GAT only)
Produces subaudible tones to access a
repeater and make an autopatch.
