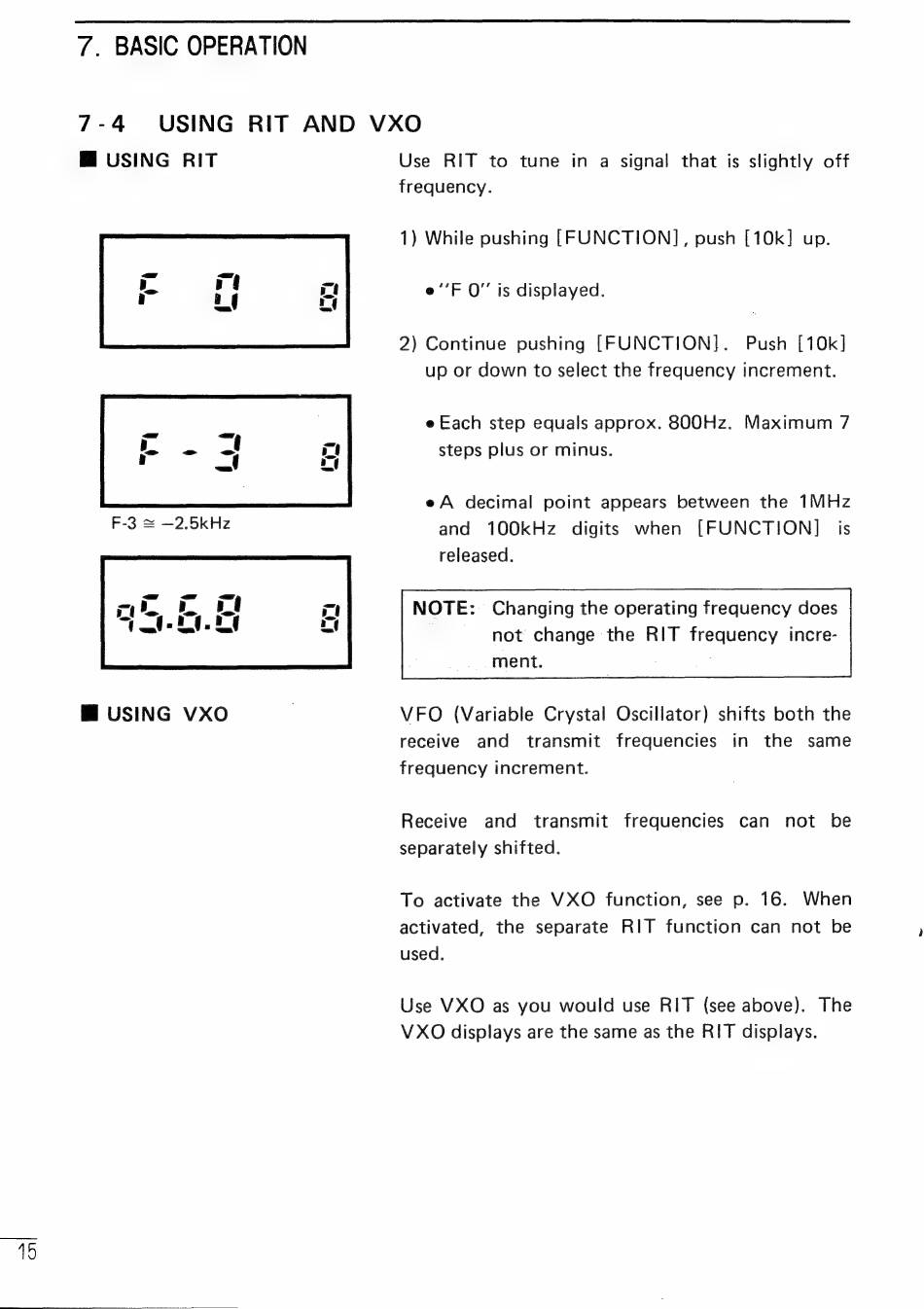

7. BASIC OPERATION
7-4 USING RIT AND VXO
B USING RIT Use RIT to tune in a signal that is slightly off
frequency.
1) While pushing [FUNCTION], push [10k] up.
e "F O" is displayed.
2) Continue pushing [FUNCTION]. Push [10k]
up or down to select the frequency increment.
e Each step equals approx. 800Hz. Maximum 7
steps plus or minus.
r eA decimal point appears between the 1MHz
F-3 = —2.5kHz and 100kHz digits when [FUNCTION] is
released.
NOTE: Changing the operating frequency does
not change the RIT frequency incre-
ment. |
B USING VY XO | VFO (Variable Crystal Oscillator) shifts both the
receive and transmit frequencies in the same
frequency increment.
Receive and transmit frequencies can not be
separately shifted.
To activate the VXO function, see p. 16. When
activated, the separate RIT function can not be
used.
Use VXO as you would use RIT (see above). The
V XO displays are the same as the RIT displays.
