l GENERAL
e Frequency coverage*
e Mode
e Tuning steps
@ Memory channels
€ Antenna impedance
è Power supply requirement
e Ground
è Current drain (at 13.2V)
€ Usable temperature range
e Frequency stability
e Dimensions
e Weight
B TRANSMITTER
® Output power (at 8.4V DC)
e Modulation system
e Maximum frequency deviation
e Spurious emissions
e Microphone impedance
B RECEIVER
e Heceiver system
e intermediate frequency
e Sensitivity
€ Squelch sensitivity (threshold)
e Selectivity
e Spurious response rejection
@ Audio output power
* Audio output impedance
pore

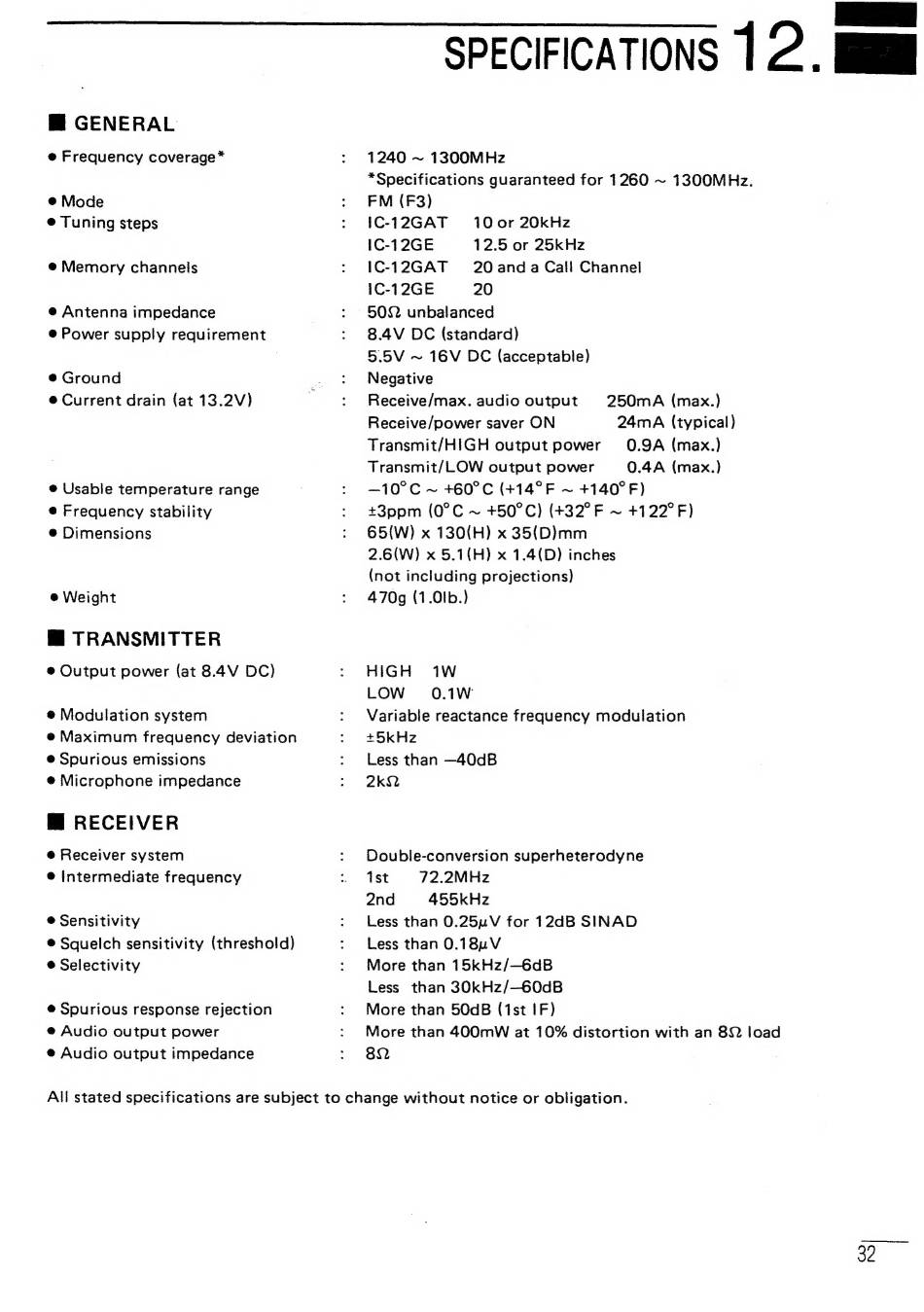

SPECIFICATIONS 12. EB
1240 ~ 1300MHz
*Specifications guaranteed for 1260 ~ 1300MHz.
FM (F3)
IC-12GAT 10or 20kHz
IC-12GE 12.5 or 25kHz
IC-12GAT 20 and a Call Channel
IC-12GE 20
BOX) unbalanced
8.4V DC (standard)
5.5V — 16V DC (acceptable)
Negative
Receive/max. audio output 250mA (max.)
Receive/power saver ON 24mA (typical)
Transmit/HIGH output power 0.9A (max.)
Transmit/LOW output power 0.4A (max.)
—10?C ~ +60°C (414? F ~ +140°F)
+3ppm (0°C ~ +50°C) (+32°F ~ +122°F)
65(W) x 130(H) x 35(D)mm
2.6(W) x 5.1(H) x 1.4(D) inches
(not including projections)
470g (1.0lb.)
HIGH 1W
LOW O.1W
Variable reactance frequency modulation
+5kHz
Less than —40dB
2k
Double-conversion superheterodyne
1st 72.2MHz
2nd 455kHz
Less than 0.254 V for 12dB SINAD
Less than O.18u V
More than 15kHz/—6dB
Less than 3OkHz/—60dB
More than 50dB (1st IF)
More than 400mW at 10% distortion with an 8Q load
82
All stated specifications are subject to change without notice or obligation.
