HEDS-9930PRGEVB User Guide
Evaluation Board & Programming Kit
4.0 Code Wheel Drawing
For AEDR-9930 evaluation board sample, the matching code wheel sample drawing is as shown in Figure 6 below.

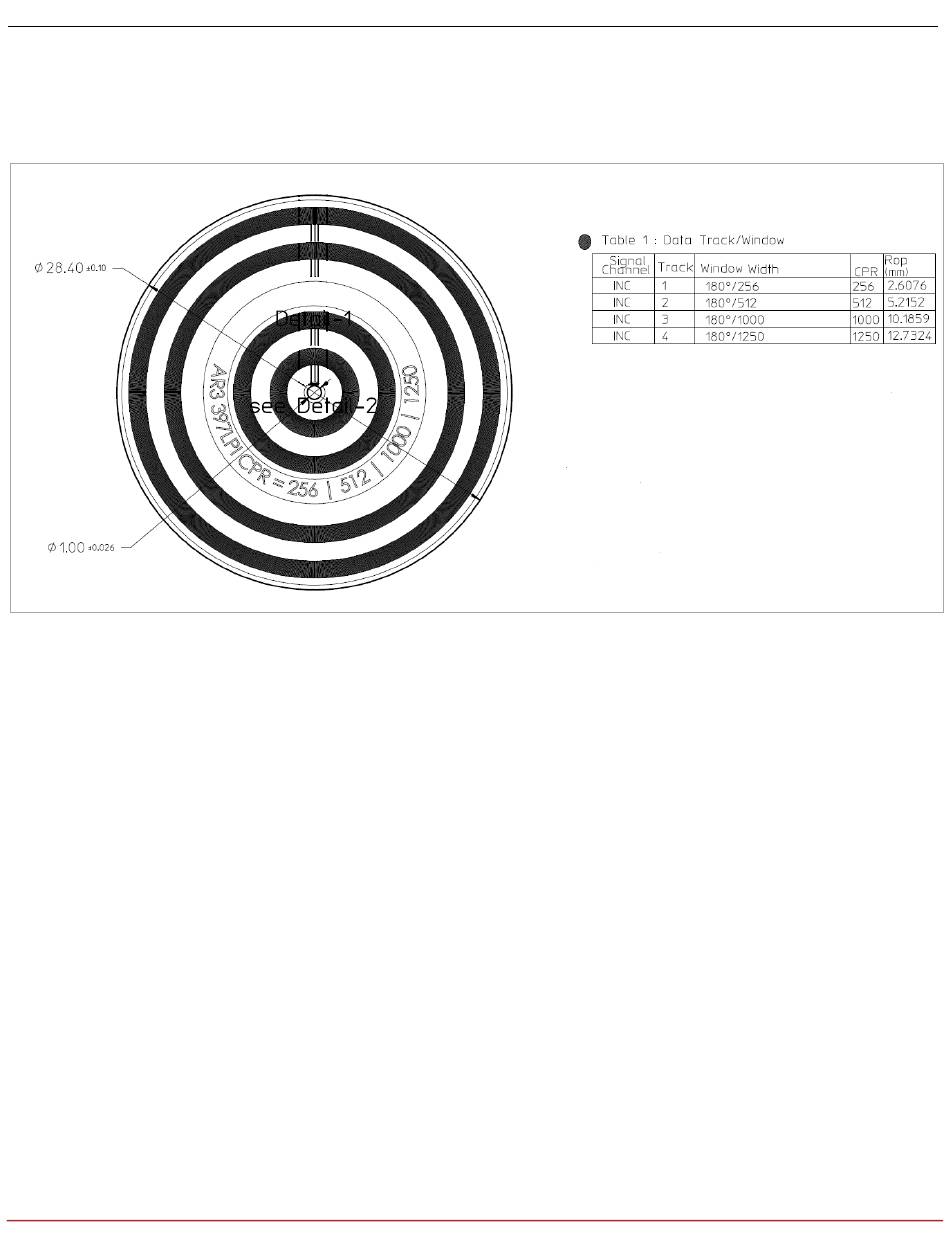

Figure 2: AEDR-9930 397 LPI 4-track (CPR) sample code wheel drawing
For the detailed drawing of the sample code wheel, please do request from regional FAE.
Note:
a) Ignore 256CPR codewheel track, is not valid to use with auto calibration.
b) All other codewheel tracks with base resolution 512, 1000 and 1250CPR required Auto
Calibration
HEDS-9930
HEDS-9930PRGEVB _UG100
12
