HEDS-9930PRGEVB User Guide

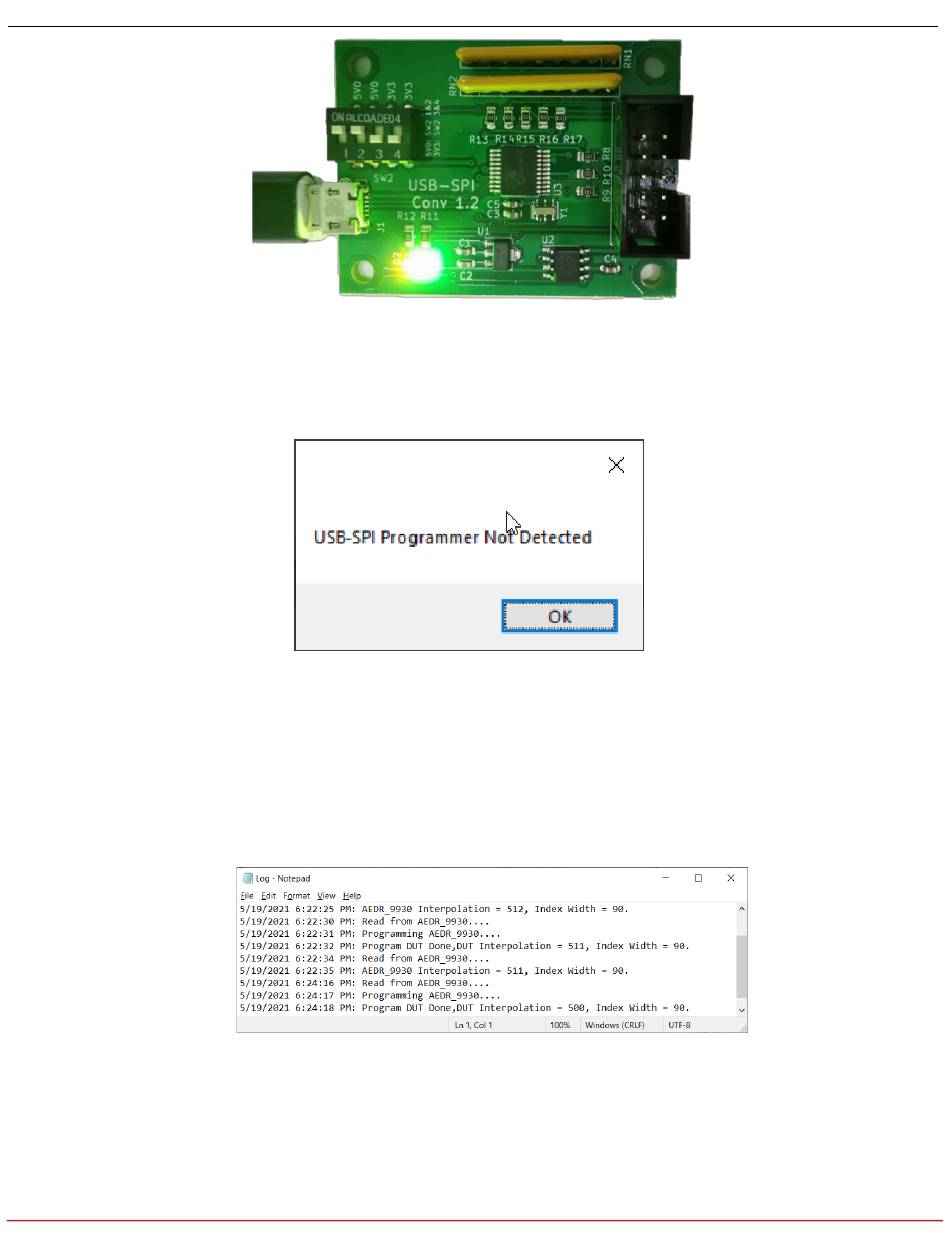

Figure 5: Both amber & green LEDs detected by the AR3_AEDR-9930_Gateway program
f.
If the following message appears, please do check on board connections & try again.
g. Click "Read" button to read back saved settings from AEDR-9930 encoder ASIC,
i.
If existing settings is read out successfully, it will display Interpolation Factor & Index Width settings
saved, as in the example below on the left.
If AEDR-9930 is not connected or detected, the program will terminate. Please refer to "log.txt" in the
ii.
same folder to check the failure status, refer to picture on the right.
HEDS-9930
Evaluation Board & Programming Kit
HEDS-9930PRGEVB _UG100
16
