HEDS-9930PRGEVB User Guide Evaluation Board & Programming Kit

5.0 HEDS-9930PRGEVB Programming USB-SPI Kit

In order to program interpolation value other than the ones offered in Table 1 via the SEL1, SEL2 & SEL3 option pins,
user may connect to the AEDS-9930 encoder ASIC via SPI interface.
Broadcom offers a simple USB to SPI programming kit, together with a PC-based custom program for end user to
program in the desired interpolation value.

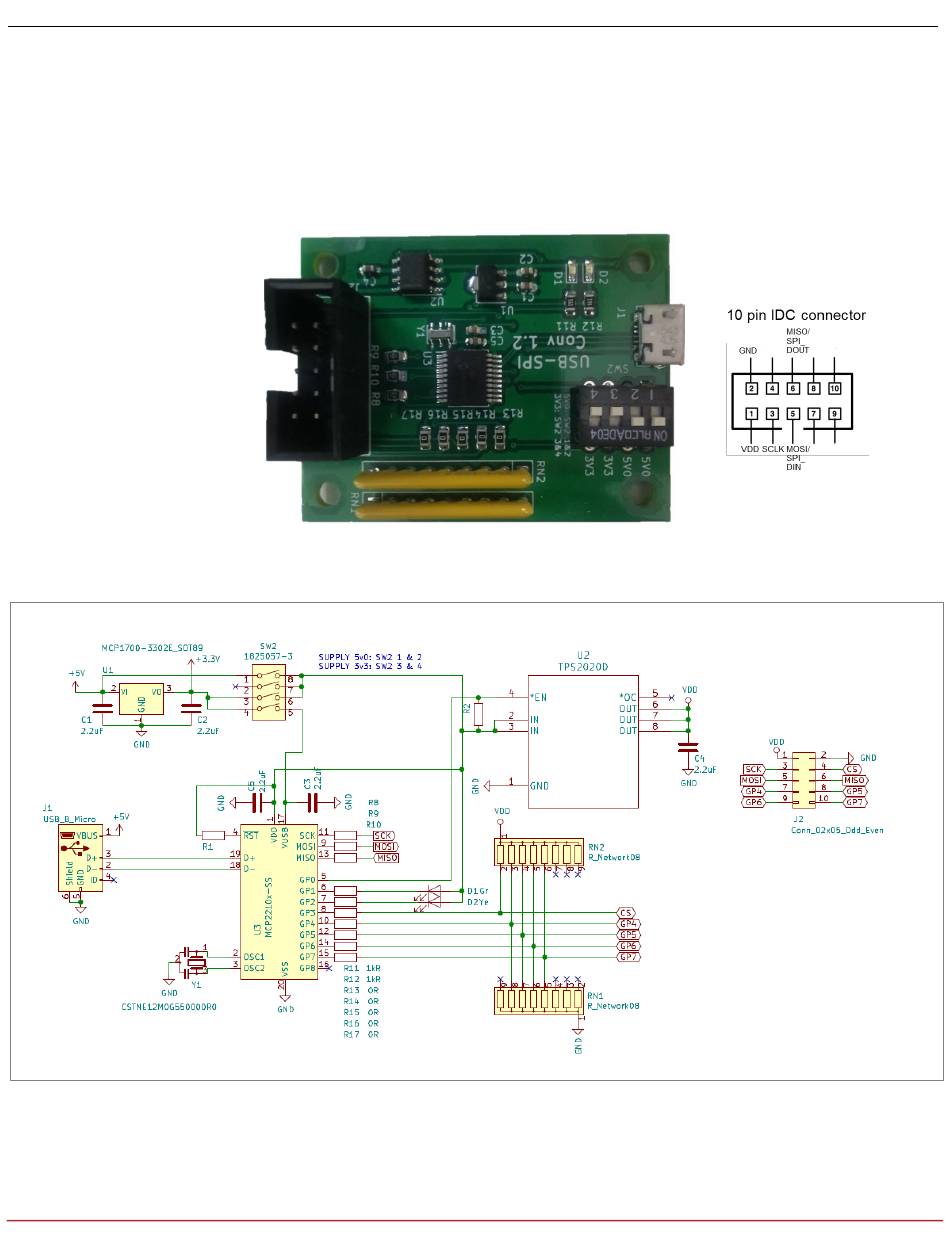

Figure 3: The HEDS-9930PRGEVB USB to SPI Programmer Kit
Figure 4: The HEDS-9930PRGEVB USB to SPI Programmer Kit Schematic
HEDS-9930 HEDS-9930PRGEVB _UG100
13
