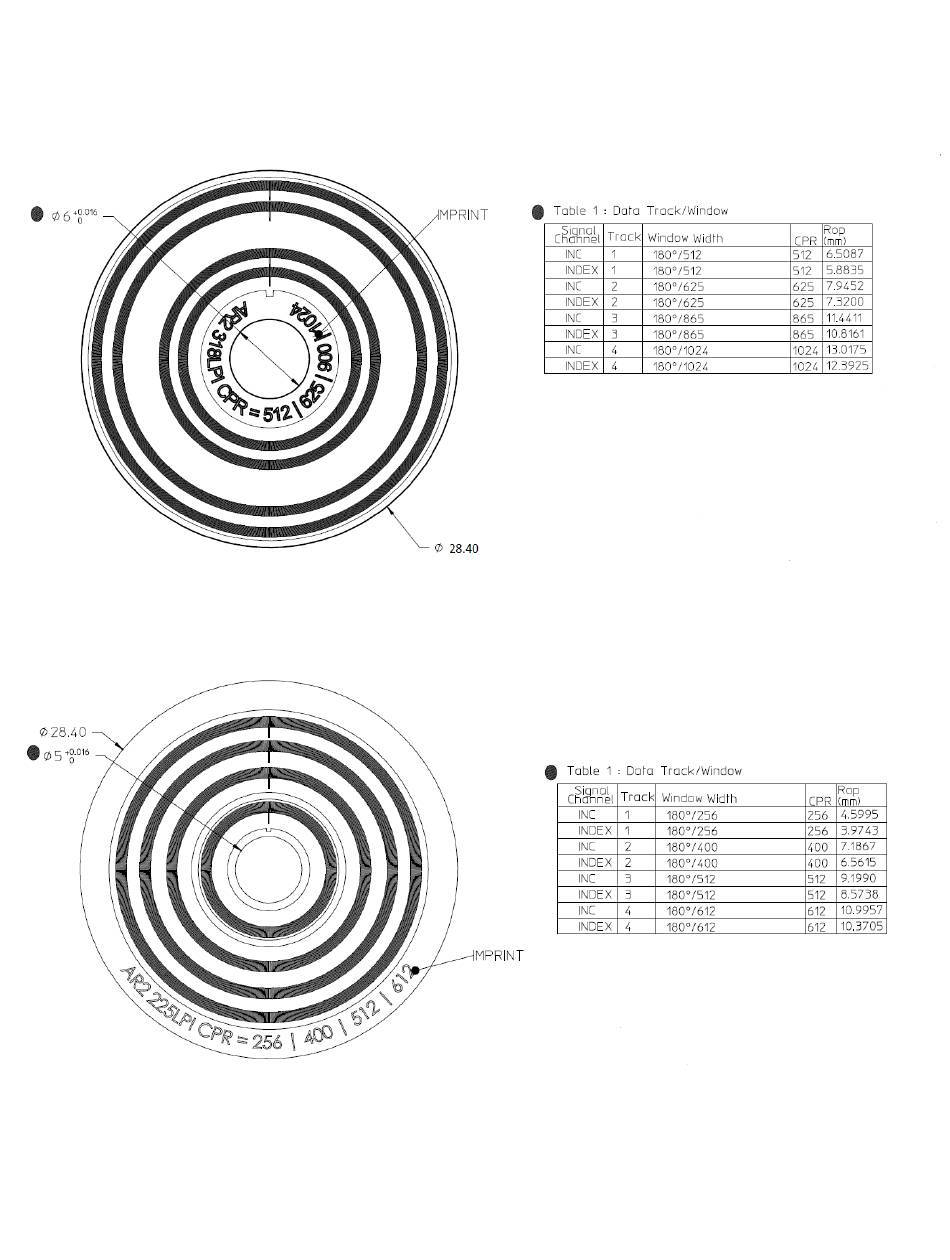

4.0 Code Wheel Drawing
For AEDR-9830 evaluation board sample, the matching code wheel sample drawing is as shown in Figure 4 below.
Figure 6 318 LPI 4-track (CPR) code wheel drawing
For AEDR-9820 evaluation board sample, the matching code wheel sample drawing is as shown in Figure 5 below.
Figure 7 225 LPI 4-track (CPR) code wheel drawing
For the detailed drawing of the sample code wheel, please do request from regional FAE.
