INSTRUCTION MANUAL
M
Model No. : UT-1206
FLOW
RATE INDICATOR AND TOTALIZER [LCD]
RL-1
RL-2
COM.
VADODARA
External Box : Ex. Flameproof / MS Or Ip65 Box
Available size : 96x48, 96x96-LCD/LED
@
www.utplindia.in
sales@utplindia.in
+91 7046223333 , 9427301436
www

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UT-1206 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitech UT-1206

Summary of Contents for Unitech UT-1206

  • Page 1 INSTRUCTION MANUAL Model No. : UT-1206 FLOW RATE INDICATOR AND TOTALIZER [LCD] RL-1 RL-2 COM. VADODARA External Box : Ex. Flameproof / MS Or Ip65 Box Available size : 96x48, 96x96-LCD/LED www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
  • Page 2 FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 PRE CAUTIONS, WARNING AND DISPOSAL ACTION WARNING Electrical Consideration / Precautions The controller is considered “Rack and panel mounted equipment” per EN 61010-1, Safety Requirements for electrical equipment for Measurement, Control and Laboratory Use, Part 1: General Requirements. Conformity with 2/23/EEC Low Voltage Directive, requires the user to provide adequate protection against a shock hazard.

  • Page 3: Table Of Contents

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 CONTENTS OVERVIEW ....................INTRODUCTION ..................NSTALLATION ........................................MOUNTING ....................EXTERNAL DIMENSION TECHNICAL SPECIFICATIONS ........................................WIRING DIAGRAM PROGRAMMING ..................................OPERATION INTERFACE ..............MODE ACCESS FLOW CHART OPERATIONAL MODES ................................

  • Page 4: Overview

    Introduction Function Steam Flow Computer UT-1206 are designed to measure the Flow of Superheated Steam & Saturated Steam in Mass or in terms of normalized Volume. This Flow Meter Computes Compensated Steam Flow by receiving input From Vortex Flow Meter, From Volumetric Flow, Orifice Plate, ISO 5167 Computation,Venturi & Verabar Computations.

  • Page 5: Technical Specifications

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 Technical Specifications TECHNICAL SPECIFICATIONS Current : 0~20mA dc, 4~20mA dc, 0-10 vdc Voltage : 0~20mA dc, 4~20mA dc, 0-10 vdc Type Of Input Pulse : RTD PT 100 3 wire. / 4~20mA Accuracy + 0.

  • Page 6: Wiring Diagram

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 Wiring Diagram 7 8 9 OUTPUT (Analog Out) CAUTION WIRING CONSIDERATION [PULSE INPUT] Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication.

  • Page 7: Programming

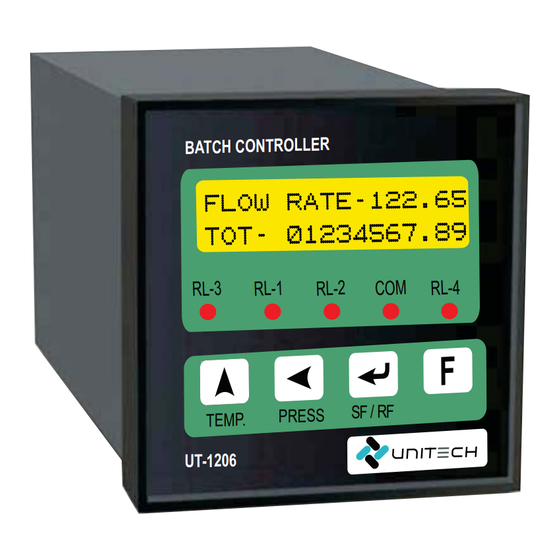

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 PROGRAMMING Operation Interface FRONT VIEW FLOW TOTALIZER UT-1206 Present Flow FLOW : 12345.6 m3/hr Rate Display Total Flow Tot. : 1234567890.1 Display Relay-2 LED Relay-3 LED Relay-4 LED Relay-1 LED COM LED PASS Key...

  • Page 8: Mode Access Flow Chart

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 Mode Access Flow Chart. Mode Selection Normal Mode Press key to enter into Flow:1234.5 m3/Hr the Programming mode from Tot.:1234567890.1 Normal mode Configuration Setup Reset Change Calibration Mode Mode Mode Password Mode Mode...

  • Page 9: Operational Modes

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 OPERATIONAL MODES 4.1 Configuration Mode ‘Configuration Mode’ Mode will shown by pressing key, after Setup Mode display. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Values between Password : 0000. Scroll the digit by key, increase by key.

  • Page 10: Setup Mode

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 Seup Mode ‘Setup Mode’ will shown by pressing key in the Normal Mode. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Values between Password : 0000 Scroll the digit by key, increase by key.

  • Page 11: Calibration Mode

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 Calibration Mode ‘Calibration Mode’ Mode will shown by pressing key, after Configuration Mode display. Display Range Parameter Default Value PASSWORD FOR PARAMETER SETTING Values between Password : 0000 Password for Calibration Mode Parameters...

  • Page 12: Reset Mode

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 Reset Mode ‘Reset Mode’ Mode will shown by pressing key, after Change Password Mode display. Display Range Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Values between Password for Calibration Mode Parameters...

  • Page 13: Error Message

    FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1206 Error Message. In case the following error messages appear in the display of controller, please refer to the Error message table below, or call technical support. Sign Description Solution Open the Input Connection...

  • Page 14: Communication [Modbus Rtu] Protocol

    DATA+ RS-485 BUS Ethernet DATA- CONVERTER www.utplindia.in UNITECH TECHNOCRATS PVT LTD All content are subject to change without notice FACTORY:- 78/1/Z/3-Makarpura G I D C .., due to continuous improvements. +91 7046223333 , 9427301436 N/R Vadasar Bridge. /p-Gayatri emple Doc.
