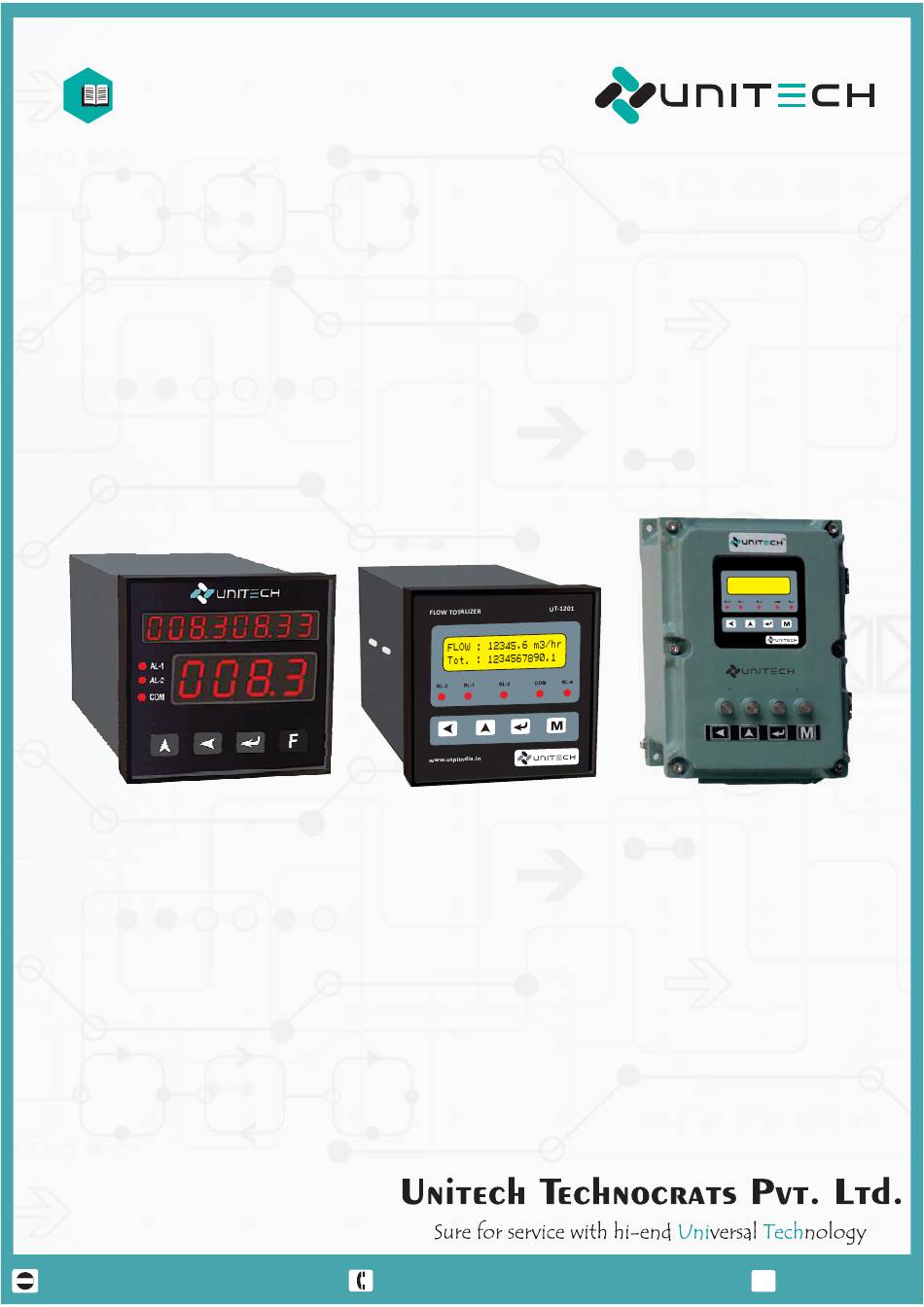

- Page 1 INSTRUCTION MANUAL Model No. : UT-1201 FLOW RATE INDICATOR AND TOTALIZER [LCD] FLOW TOTALIZER UT-1201 FLOW : 12345.6 m3/hr Tot. : 1234567890.1 www.utplindia.in 96 x 96 [LED] 96 x 96 [LCD] Flame Proof www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 2 12 / 24 VDC – a switch, fuse (1A, 125A) or a circuit breaker. The above items should be installed together with UT-1201 for the products electrical protection. The switch, Fuse or circuit-breaker should be located close to the controller, within easy reach operator.
-
Page 3: Table Of Contents
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 CONTENTS OVERVIEW ....................INTRODUCTION ..................NSTALLATION ........................................MOUNTING ....................EXTERNAL DIMENSION TECHNICAL SPECIFICATIONS ........................................WIRING DIAGRAM PROGRAMMING ..................................OPERATION INTERFACE ..............MODE ACCESS FLOW CHART OPERATIONAL MODES ................................ -
Page 4: Overview
Totalizer of alarm or control application. Unitech flow totalizer are available for liquid and gas duties and are available as field/wall mounting or alternatively in an explosion proof housing to the latest international standards and will work with. Orifice any type of flowmeter. -
Page 5: Technical Specifications
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 Technical Specifications TECHNICAL SPECIFICATIONS CURRENT [Analog] Linear : 4 ~20mA DC, 0~20mA DC VOLTAGE [Analog] Linear : 0~5VDC, 1~5VDC, 0~10VDC Type Of Input PULSE PNP / NPN / 2 wire namur type. Accuracy + 0.1% of Full Scale... -
Page 6: Wiring Diagram
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 Wiring Diagram 1 2 3 4 5 6 7 8 9 OUTPUT 24VDC (Analog Out) CAUTION WIRING CONSIDERATION Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication. -
Page 7: Programming
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 PROGRAMMING Operation Interface FRONT VIEW FLOW TOTALIZER UT-1201 Present Flow FLOW : 12345.6 m3/hr Rate Display Total Flow Tot. : 1234567890.1 Display Relay-2 LED Relay-3 LED Relay-4 LED Relay-1 LED COM LED PASS Key... -
Page 8: Mode Access Flow Chart
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 Mode Access Flow Chart. Mode Selection Normal Mode Press key to enter into Flow:1234.5 m3/Hr the Programming mode from Tot.:1234567890.1 Normal mode Setup Configuration Change Calibration Reset Mode Mode Mode Password Mode Mode... -
Page 9: Operational Modes
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 OPERATIONAL MODES Seup Mode ‘Setup Mode’ will shown by pressing key in the Normal Mode. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Values between Password : 0000. Scroll the digit by key, increase by key. -
Page 10: Configuration Mode
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 Configuration Mode ‘Configuration Mode’ Mode will shown by pressing key, after Setup Mode display. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Scroll the digit by key, increase by key. -
Page 11: Calibration Mode
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 Calibration Mode ‘Calibration Mode’ Mode will shown by pressing key, after Configuration Mode display. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Password for Calibration Mode Parameters Values between... -
Page 12: Change Password Mode
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 Change Password Mode ‘Change Password Mode’ Mode will shown by pressing key, after Calibration Mode display. Display Range Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Values between Password for Calibration Mode Parameters... -
Page 13: Error Message
FLOW RATE INDICATOR AND TOTALIZER [LCD] UT-1201 Error Message. In case the following error messages appear in the display of controller, please refer to the Error message table below, or call technical support. Sign Description Solution Open the Input Connection... -
Page 14: Communication [Modbus Rtu] Protocol
DATA+ RS-485 BUS Ethernet DATA- CONVERTER www.utplindia.in UNITECH TECHNOCRATS PVT LTD All content are subject to change without notice FACTORY:- 78/1/Z/3-Makarpura G I D C .., due to continuous improvements. +91 7046223333 , 9427301436 N/R Vadasar Bridge. /p-Gayatri emple Doc.
