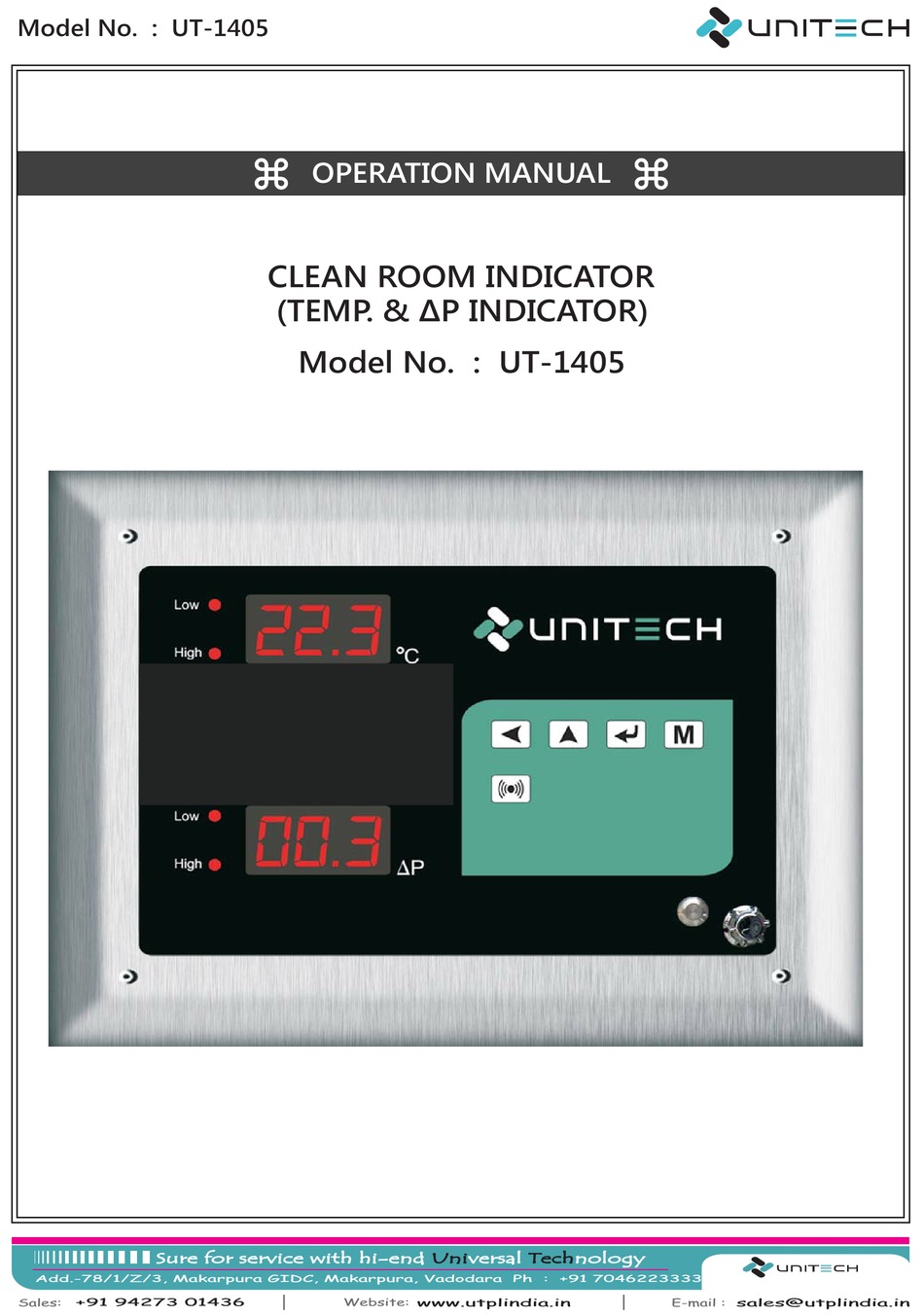

- Page 1 Model No. : UT-1405 OPERATION MANUAL CLEAN ROOM INDICATOR (TEMP. & P INDICATOR) Δ Model No. : UT-1405 Sure for service with hi-end Sure for service with hi-end versal versal Tech Tech nology nology Add.-78/1/Z/3, Makarpura GIDC, Makarpura, Vadodara +91 7046223333...
- Page 2 ERROR MESSAGE AND TROUBLESHOOTING COMMUNICATION PROTOCOL INTRODUCTION Unitech Instrument’s Clean Room Indicator is designed to display Temperature and Room Pressure Difference in one unit. These instrument accepts inputs from standard Temp. sensor or internal sensor. The instrument displays the temperature (ºC) in the range of 0 to 100ºC and press.
-
Page 3: Front Panel Description

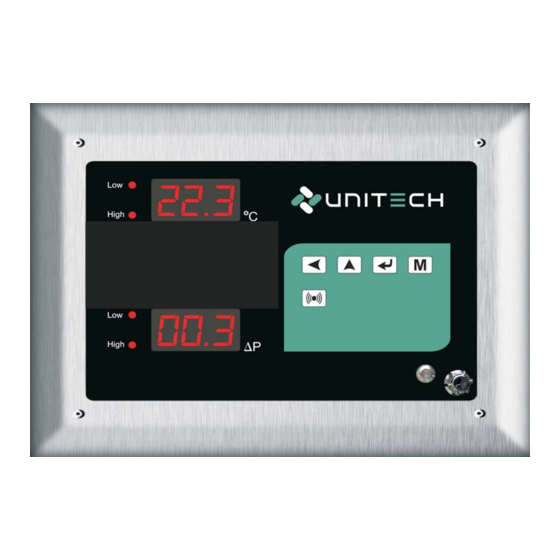

Model No. : UT-1405 PAGE : 2 FRONT PANEL DESCRIPTION ºC High High DISPLAY DESCRIPTION Seven Segment LED displays of Temp and Diff. Press. Red LED will glow on low Process values of ºC & P Δ High Red LED will glow on high Process values of ºC & P Δ... -
Page 4: Technical Specification
Model No. : UT-1405 PAGE : 3 TECHNICAL SPECIFICATION FDA 21 CFR part 11 - GAMP-4 compatible. Microcontroller based indicator with inbuilt Temperature & DP measurement in single enclosure. Incorporates highly stable built-in or Remorte Temp. & DP sensor. 3 Digit, 0.56" bright LED display for displaying Temperature and DP Process parameter Hi and Low LEDs. -
Page 5: Installation
Model No. : UT-1405 PAGE : 4 INSTALLATION Terminal Detail T + RH SENSOR TERMINAL CONNECTION T + RH SENSOR TEMP & RH SENSOR : 4 Wire TEMP. + HUMIDITY SENSOR WITH WIRE CODE. COMMUNICATION : RS-485 interface Terminal POWER SUPPLY : 24VDC Supply Voltage. -
Page 6: Programming Flow Chart
Model No. : UT-1405 PAGE : 5 PROGRAMMING FLOW CHART Configuration Setup Change Mode Calibration Selection Mode Mode Mode Password Press Press Press Press Press new - Sure for service with hi-end Sure for service with hi-end versal versal Tech... -
Page 7: Configuration Mode
Model No. : UT-1405 PAGE : 6 CONFIGURATION MODE CONFIGURATION MODE PARAMETER Description Range Parameter Default Value Password for Parameter Setting Scroll the digit by key, increase by 000 to 999 Values between Password for Configuration Parameter Temperature Alarm-1 type... -
Page 8: Setup Mode
PAGE : 7 Model No. : UT-1405 Description Range Default Value Pressure Offset Factory set Value Change the value by key or key. 00 to 62 Values between Note: Factory set Value Pressure Gain Factory set Value Change the value by key or key. -
Page 9: Calibration Mode
Model No. : UT-1405 PAGE : 8 Range Description Parameter Default Value Factory set Value Factory set Value Temperature Offset Scroll the digit by key, increase by 000 to 999 Values between Offset to Temp. value Pressure Offset Scroll the digit by... -
Page 10: Error Message And Troubleshooting
Model No. : UT-1405 PAGE : 9 CHANGE PASSWORD MODE Description Range Parameter Default Value Old Password. Scroll the digit by key, increase by key. Values between 000 to 999 Existing Password New Password. Scroll the digit by key, increase by key. - Page 11 Model No. : UT-1405 PAGE : 10 NOTES : Sure for service with hi-end Sure for service with hi-end versal versal Tech Tech nology nology Add.-78/1/Z/3, Makarpura GIDC, Makarpura, Vadodara +91 7046223333 Sales: +91 94273 01436 Website: www.utplindia.in E-mail :...
