Summary of Contents for Unitech UT-1206

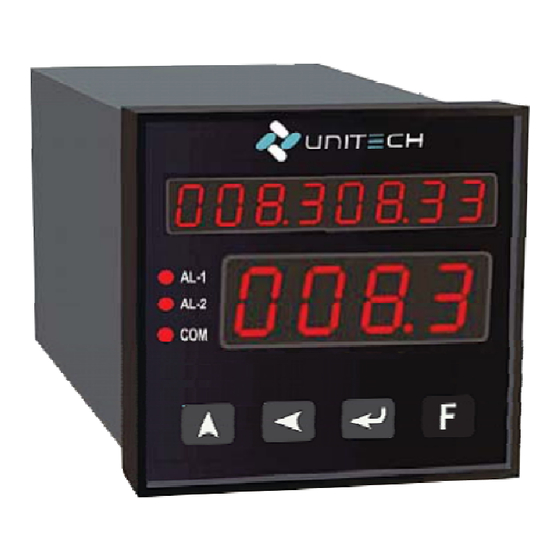

- Page 1 INSTRUCTION MANUAL Model No. : UT-1206 BATCH CONTROLLER [LCD] FLOW TOTALIZER UT-1206 FLOW : 12345.6 m3/hr Tot. : 1234567890.1 www.utplindia.in 96 x 96 [LED] 96 x 96 [LCD] Flame Proof www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 2 BATCH CONTROLLER [LCD] UT-1206 PRE CAUTIONS, WARNING AND DISPOSAL ACTION WARNING Electrical Consideration / Precautions The controller is considered “Rack and panel mounted equipment” per EN 61010-1, Safety Requirements for electrical equipment for Measurement, Control and Laboratory Use, Part 1: General Requirements. Conformity with 2/23/EEC Low Voltage Directive, requires the user to provide adequate protection against a shock hazard.
-
Page 3: Table Of Contents
BATCH CONTROLLER [LCD] UT-1206 CONTENTS OVERVIEW ....................INTRODUCTION ..................NSTALLATION ........................................MOUNTING ....................EXTERNAL DIMENSION TECHNICAL SPECIFICATIONS ........................................WIRING DIAGRAM PROGRAMMING ..................................OPERATION INTERFACE ..............MODE ACCESS FLOW CHART OPERATIONAL MODES ................................CONFIGURATION MODE .................... -
Page 4: Overview
Introduction Function Unitech Instrument’s Model 1206 represents BATCH CONTROLLERS for Monitor your flow rate, keep a cum- ulative total, or select batch control. Models are available to accommodate virtually any need in flow moni- toring and control. Choose from models that accept pulse or analog signal, and have a digital (RS-485) and analog signal output. -
Page 5: Technical Specifications
BATCH CONTROLLER [LCD] UT-1206 Technical Specifications TECHNICAL SPECIFICATIONS CURRENT [Analog] Linear : 4 ~20mA DC, 0~20mA DC VOLTAGE [Analog] Linear : 0~5VDC, 1~5VDC, 0~10VDC Type Of Input PULSE PNP / NPN / 2 wire namur type. Accuracy + 0.1% of Full Scale... -
Page 6: Wiring Diagram
BATCH CONTROLLER [LCD] UT-1206 Wiring Diagram 1 2 3 4 5 6 7 8 9 OUTPUT 24VDC (Analog Out) CAUTION WIRING CONSIDERATION Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication. -
Page 7: Programming
BATCH CONTROLLER [LCD] UT-1206 PROGRAMMING Operation Interface FRONT VIEW FLOW TOTALIZER UT-1206 Present Flow FLOW : 12345.6 m3/hr Rate Display Total Flow Tot. : 1234567890.1 Display Relay-2 LED Relay-3 LED Relay-4 LED Relay-1 LED COM LED PASS Key MODE Key... -
Page 8: Mode Access Flow Chart
BATCH CONTROLLER [LCD] UT-1206 Mode Access Flow Chart. Mode Selection Normal Mode Press With < key to enter into Flow:1234.5 m3/Hr the Programming mode from Tot.:1234567890.1 Normal mode Batch setting Setup Configuration Change Calibration Mode Mode Mode Mode Password Mode... -
Page 9: Operational Modes
BATCH CONTROLLER [LCD] UT-1206 OPERATIONAL MODES Batch Setting Mode ‘Batch Setting mode’ will shown by pressing with key in the Normal Mode. < Range Display Parameter Default Value Batch Setting for Batch - 1 Values between Batch Setting 000000000.0 Scroll the digit by key, increase by key. -
Page 10: Configuration Mode
BATCH CONTROLLER [LCD] UT-1206 Configuration Mode ‘Configuration Mode’ Mode will shown by pressing key, after Setup Mode display. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Scroll the digit by key, increase by key. Values between... -
Page 11: Calibration Mode
BATCH CONTROLLER [LCD] UT-1206 Calibration Mode ‘Calibration Mode’ Mode will shown by pressing key, after Configuration Mode display. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Password for Calibration Mode Parameters Values between 0000 Enter Password... -
Page 12: Change Password Mode
BATCH CONTROLLER [LCD] UT-1206 Change Password Mode ‘Change Password Mode’ Mode will shown by pressing key, after Calibration Mode display. Display Range Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Values between Password for Calibration Mode Parameters 0000... -
Page 13: Error Message
BATCH CONTROLLER [LCD] UT-1206 Error Message. In case the following error messages appear in the display of controller, please refer to the Error message table below, or call technical support. Sign Description Solution Open the Input Connection Check the Input sensor wiring... -
Page 14: Communication [Modbus Rtu] Protocol
DATA+ RS-485 BUS Ethernet DATA- CONVERTER www.utplindia.in UNITECH TECHNOCRATS PVT LTD All content are subject to change without notice FACTORY:- 78/1/Z/3-Makarpura G I D C .., due to continuous improvements. +91 7046223333 , 9427301436 N/R Vadasar Bridge. /p-Gayatri emple Doc.
