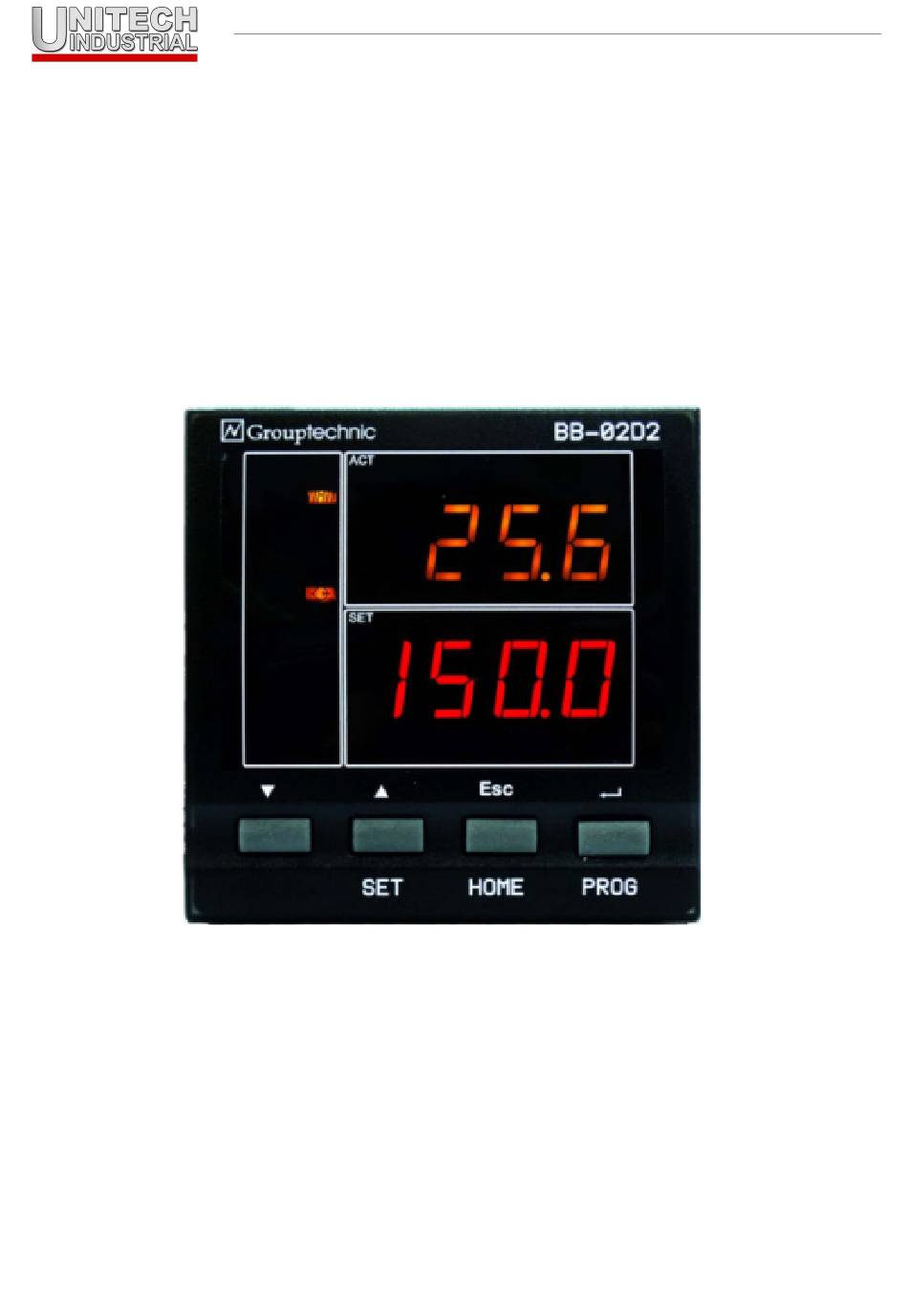

- Page 1 BB-02D2 DIGITAL INDICATOR USER GUIDE BB-02D2 Digital Indicator...
- Page 2 The Unitech UB series pipe bending machines utilize the BB-02D2 digital indicator. This document details the functionality of the BB-02D2 digital indicator. General Precautions: 1. Ensure the power is switched off before making connections or carrying out maintenance. 2. Verify the supply voltage before installing the device.
- Page 3 Buttons and Indicators Indicators ACT: Indicates the current actual location value. SET: Specifies the limit value for forward movement. Buttons: All buttons have two functions; SET: Used to input the "set" parameter either automatically or manually. It facilitates adjusting the parameter and entering the value.
- Page 4 Adjusting HOME Position Values 1. Press the “Home” button until the “Home” screen appears in the “Act” window. 2. Utilize the pedal to position the machine at the desired zero point. 3. Input the password using the “Up/down” keys. 4. The default password is either “20” or “1”. 5.
- Page 5 Calibrating the Measurement “Pr – 3 & Pr – 4: This setting controls the hydraulic operations of our system. It's calculated using engineering math and needs expertise for accurate calculation. *** Changing this value is not recommended. Setting the Measurement Unit System (mm or cm) Pr - 5: Use this parameter to specify the decimal place for the number.
- Page 6 Establishing the minimum and maximum values that can be input. Pr – 6: Identify the minimum allowable input value. Pr – 7: Identify the maximum allowable input value. (suggested value 180)
- Page 7 Indicator Descriptions Setting parameters in program mode indicates the correct password. Indicates that program mode is currently active. Flashes to warn when the stop button is pressed. Shows that the system is operational. The left pedal is being used. It is currently pressed. The right pedal is being pressed, activating the right pedal input.
