Summary of Contents for Unitech UT-1210

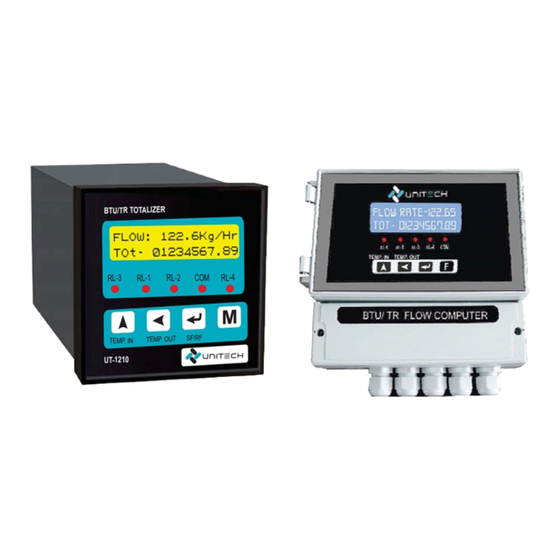

- Page 1 INSTRUCTION MANUAL Model No. : UT-1210 BTU / TR TOTALIZER [LCD] RL-1 RL-2 COM. VADODARA Available size : 96x96-LCD,96x96-LED,96x48 External Box : Ex. Flameproof / M S or S S Box www.utplindia.in sales@utplindia.in +91 7046223333 , 9427301436...
- Page 2 12 / 24 VDC – a switch, fuse (1A, 125A) or a circuit breaker. The above items should be installed together with UT-1210 for the products electrical protection. The switch, Fuse or circuit-breaker should be located close to the controller, within easy reach operator.
-
Page 3: Table Of Contents
BTU / TR TOTALIZER [LCD] UT-1210 CONTENTS OVERVIEW ....................INTRODUCTION ..................NSTALLATION ........................................MOUNTING ....................EXTERNAL DIMENSION TECHNICAL SPECIFICATIONS ........................................WIRING DIAGRAM PROGRAMMING ..................................OPERATION INTERFACE ..............MODE ACCESS FLOW CHART OPERATIONAL MODES ................................CONFIGURATION MODE .................... -
Page 4: Overview
Introduction Function Steam Flow Computer UT-1210 are designed to measure the Flow of Superheated Steam & Saturated Steam in Mass or in terms of normalized Volume. This Flow Meter Computes Compensated Steam Flow by receiving input From Vortex Flow Meter, From Volumetric Flow, Orifice Plate, ISO 5167 Computation,Venturi & Verabar Computations. -
Page 5: Technical Specifications
BTU / TR TOTALIZER [LCD] UT-1210 Technical Specifications TECHNICAL SPECIFICATIONS Flow : 0~20mA dc, 4~20mA dc, 0-10 vdc Temperature-1 : RTD PT 100 3 wire. / 4~20mA Type Of Input Temperature-2 : RTD PT 100 3 wire. / 4~20mA Accuracy + 25 0. -
Page 6: Wiring Diagram
BTU / TR TOTALIZER [LCD] UT-1210 Wiring Diagram 1 2 3 4 5 6 7 8 9 OUTPUT 24VDC (Analog Out) CAUTION RTD PT-100 INPUT TEMP. WIRING CONSIDERATION Shielded twisted pair wire is used for all analog I/P, Process sensors RTD, Thermo-couple, mV-mA DC, Volt DC, Linear input and Communication. -
Page 7: Programming
BTU / TR TOTALIZER [LCD] UT-1210 PROGRAMMING Operation Interface FRONT VIEW FLOW TOTALIZER UT-1210 Present Flow FLOW : 12345.6 m3/hr Rate Display Total Flow Tot. : 1234567890.1 Display COM LED PASS Key MODE Key UP Key ENTER Key www.utplindia.in NORMAL VIEWS Present Flow Rate 5 Digit first line to display the present Flow rate value. -
Page 8: Mode Access Flow Chart
BTU / TR TOTALIZER [LCD] UT-1210 Mode Access Flow Chart. Mode Selection Normal Mode Press key to enter into Flow:1234.5 m3/Hr the Programming mode from Tot.:1234567890.1 Normal mode Reset Change Configuration Calibration Setup Mode Password Mode Mode Mode Mode Config Mode... -
Page 9: Operational Modes
BTU / TR TOTALIZER [LCD] UT-1210 OPERATIONAL MODES 4.1 Configuration Mode ‘Configuration Mode’ Mode will shown by pressing key, after Setup Mode display. Range Display Parameter Default Value PASSWORD FOR PARAMETER SETTING Values between Password : 0000. Scroll the digit by key, increase by key. -
Page 10: Calibration Mode
BTU / TR TOTALIZER [LCD] UT-1210 Calibration Mode ‘Calibration Mode’ Mode will shown by pressing key, after Configuration Mode display. Display Range Parameter Default Value PASSWORD FOR PARAMETER SETTING Values between Password : 0000 Password for Calibration Mode Parameters 0000... -
Page 11: Change Password Mode
BTU / TR TOTALIZER [LCD] UT-1210 Change Password Mode ‘Change Password Mode’ Mode will shown by pressing key, after Calibration Mode display. Display Range Parameter Default Value PASSWORD FOR PARAMETER SETTING Password : 0000 Values between Password for Calibration Mode Parameters... -
Page 12: Error Message
BTU / TR TOTALIZER [LCD] UT-1210 Error Message. In case the following error messages appear in the display of controller, please refer to the Error message table below, or call technical support. Sign Description Solution -Sensor break error -Replace sensor... -
Page 13: Communication [Modbus Rtu] Protocol
DATA+ RS-485 BUS Ethernet DATA- CONVERTER www.utplindia.in UNITECH TECHNOCRATS PVT LTD All content are subject to change without notice FACTORY:- 78/1/Z/3-Makarpura G I D C .., due to continuous improvements. +91 7046223333 , 9427301436 N/R Vadasar Bridge. /p-Gayatri emple Doc.
