superbrightleds ALDS2 Series User Manual

Important: Read all instructions prior to installation.

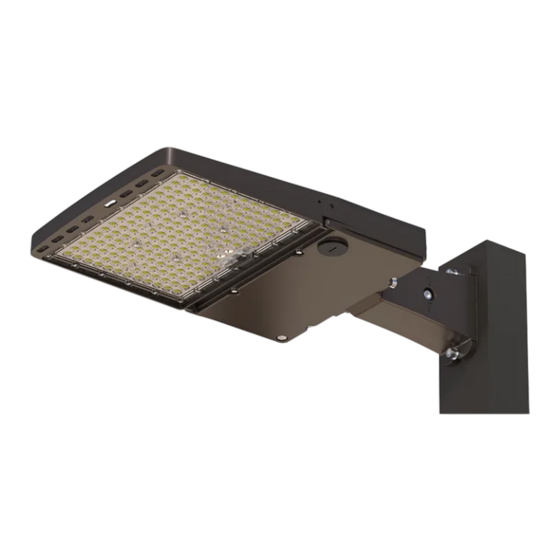

LED Parking Lot/Area Light
ALDS2-SW3B300-CDS3
Specifications
Environmental Specifications
Operating Temperature
IP Rating
Mounting Options
Fixed Pole Mount (ALDS2-PM)
Trunnion Mount (ALDS2-TR)
-40°–113° F (-40°–45° C)
IP65
Knuckle Slipfitter Mount (ALDS2-SF)
Yoke Mount for 240-500W Fixtures
(ALDS2-YK2450)
Safety and Notes
• Product should be installed and serviced by a certified electrician
in accordance with applicable national, state, and local building
and electrical codes.
• To reduce the risk of electric shock, ensure that the main power
source and circuit breakers are switched off before performing
any installation or wiring procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the
weight of the fixture. Failure to properly support fixture may
result in damage or injury, for which the manufacturer does not
assume responsibility.
CCT and Wattage Selection
To select wattage and/or CCT, remove the cap covering
the switch on the bottom of the light or open the access
panel, then make the appropriate selections.
Photocell Installation
1. Photocell plugs in and twists to lock.
2. With supply power off, make all wiring
connections according to the diagram.
Install
Rev Date: V1 02/10/2024
4400 Earth City Expy, St. Louis, MO 63045
User Manual
ALDS2 Series
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Photocell
Remove
