SMC Networks VNC Series Operation Manual page 9

Fluid velocity, m/s
Equation to obtain fluid velocity
(Symbols)
v: fluid velocity (m/s)
Q: flow rate (l/min)
d: internal diameter of pipe (mm)
VNC / VNH Series
Solenoid Valves for Fluid Control
Specific Product Precautions 2
Be sure to read this before handling.

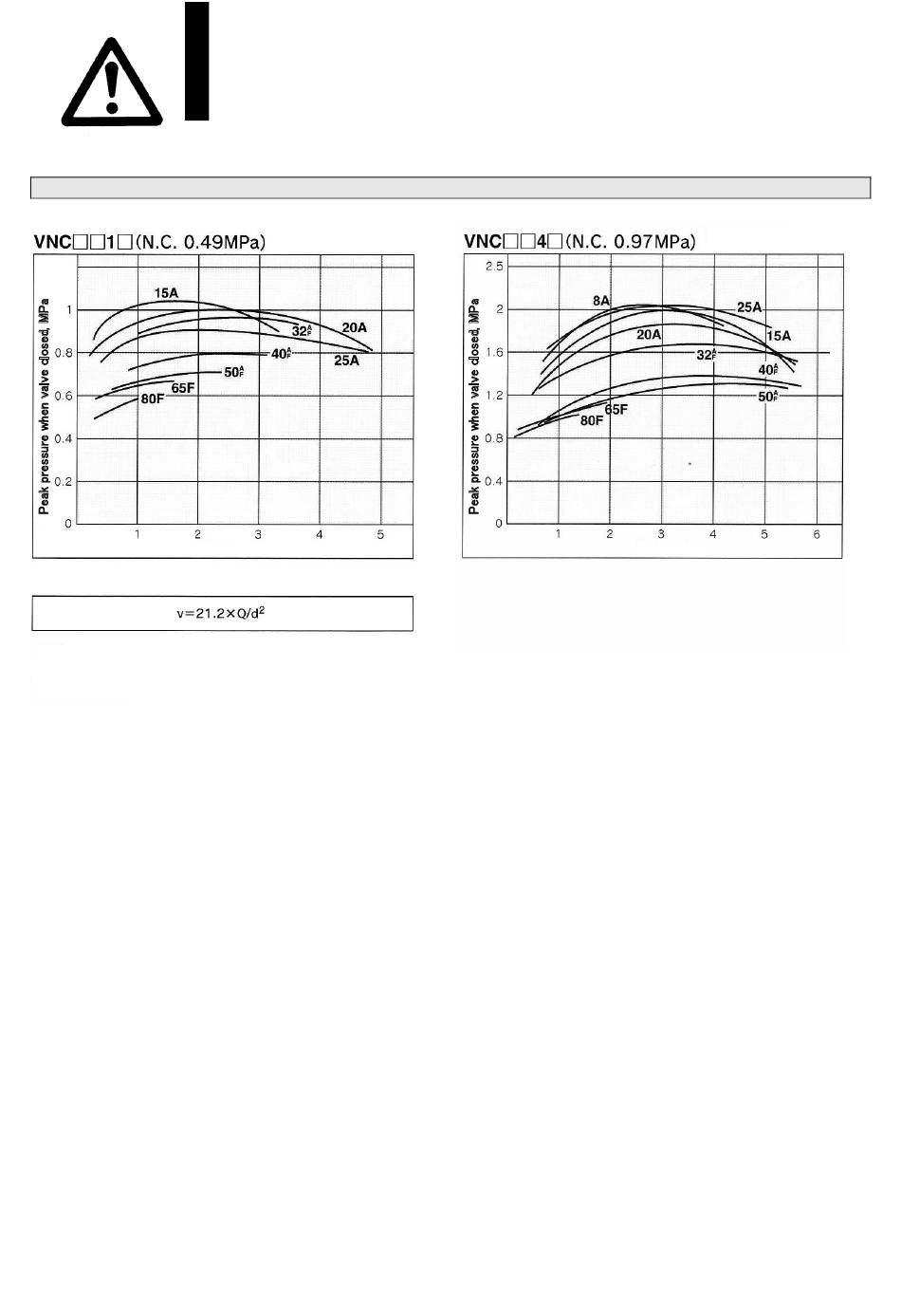

Water Hammer (Series VNC)
Conditions : piping length/ 30 m
total pressure in
copper tube/ 0.49 MPa
- 8 -
Conditions : piping length/ 30 m
total pressure in
copper tube/ 0.49 MPa
Fluid velocity, m/s
