Summary of Contents for StarTech.com SDOCK2U313
Page 1

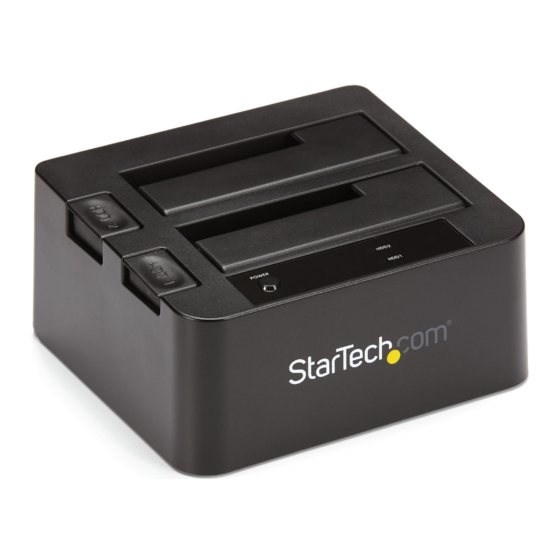

USB 3.1 (10 Gbps) Dual-Bay Dock for SATA Drives SDOCK2U313 *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com...
Page 2
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
Table of Contents Product diagram ..................1 Front view ..............................1 Rear view ..............................1 Introduction ....................2 Packaging contents ..........................2 System requirements ..........................2 Installation ....................3 Connect the docking station ........................ 3 Install a drive ............................... 3 Prepare the drive for use ........................3 About driver installation .........................
Product diagram Front view HDD2 slot HDD1 slot HDD2 Eject button HDD1 Eject button Power button Power and activity Rear view USB 3.1 port Power adapter port Instruction manual...
HDD ejection buttons make it easy to quickly remove drives. SDOCK2U313 supports both 2.5 in. and 3.5 in. SSDs and HDDs. The USB 3.1 capabilities of SDOCK2U313 provide you with greater bandwidth and speed with file transfer rates up to 10Gbps, twice the speed of USB 3.0 (USB 3.1 Gen 1)
Installation Connect the docking station Warning! Drives and storage enclosures should be handled carefully, especially when they’re transported. If you’re not careful with your drives, you may lose data as a result. Always handle storage devices with caution. 1. Connect the external power adapter from the docking station to a power outlet. 2.
2. Click Manage. 3. On the Computer Management screen, click Disk Management. 4. A dialog window appears and asks you to initialize the drive. Depending on the version of Windows that you’re running, you have the option to create either an MBR or a GPT disk.
Using the docking station Disconnect a drive from your computer If the computer that you’re using is running a version of Windows, complete the following steps: 1. On the task bar notification area on your desktop, click the Safely remove Hardware and Eject Media icon.
About the LED indicators The docking station includes a power LED indicator (blue) and an activity LED indicator (red) for each HDD slot. For more information about what the LED indicators represent, consult the table below. LED behavior Meaning LED indicator is solid blue The dock is turned on and receiving power.
Troubleshooting Test the components in your setup If you followed the steps to set up your docking station and it still isn’t working, you can test to make sure that the components of your setup are working correctly and aren’t the source of the issue. Tip: When you test the cables in your setup, you should test each cable individually and use short cables where possible.
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Page 12
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
