Summary of Contents for StarTech.com UNIDOCK2U

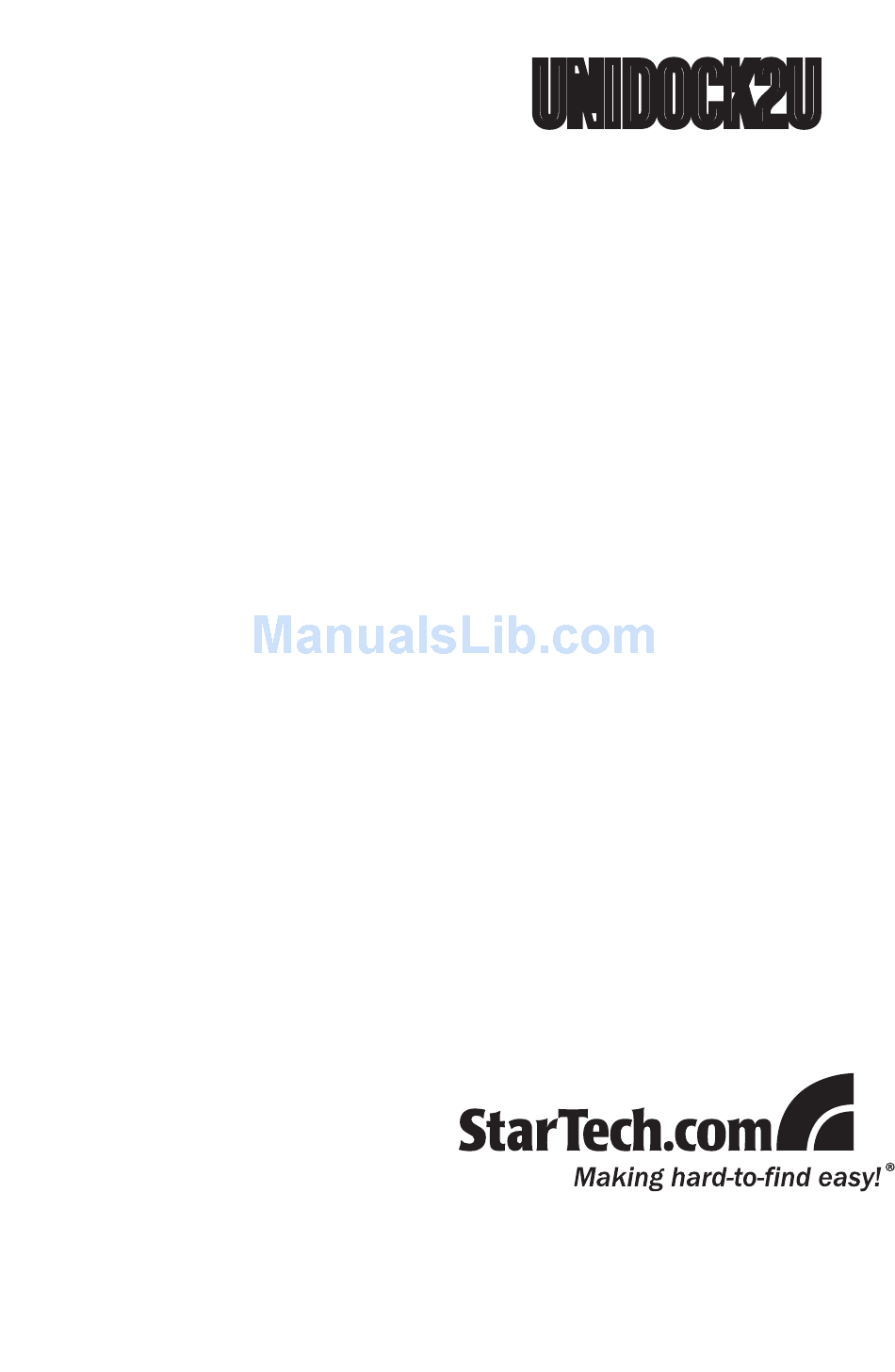

- Page 1 UNIDOCK2U Instruction Manual Serial ATA Hard Drive Docking Station USB to SATA, IDE External Hard Drive Docking Station for 2.5” or 3.5” Hard Drives...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Front View ..................2 Rear View ..................2 Hardware Installation ..............3 Driver Installation .................3 Using the Hard Drive Dock ............4 Specifications ..............6 Technical Support ............7 Warranty Information ............7... -
Page 4: Introduction
Introduction This external SATA and IDE hard drive docking station provides full and instant access to any 2.5in or 3.5in IDE and SATA (SATA 1.5Gb/s or 3.0Gb/s) hard drive up to 2 TB without having to mount the hard drive inside a computer or enclosure. -
Page 5: Front View

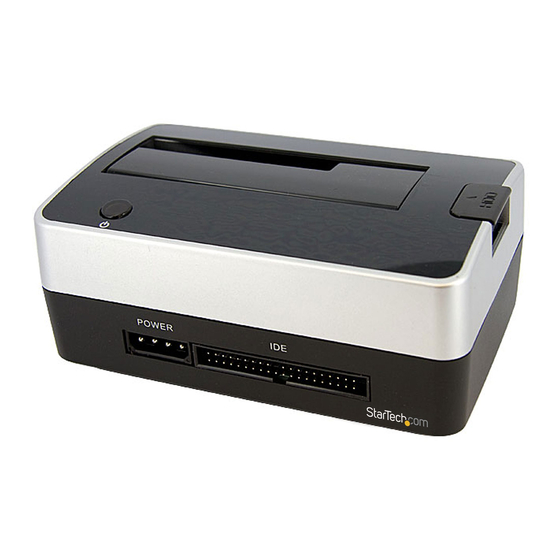

Front View Drive Eject Power SATA drive slot button button LP4 Molex power connector 40-pin IDE Rear View connector Power Connector connector... -
Page 6: Hardware Installation
Hardware Installation Plug the power and USB cable from the rear side of the hard drive dock to a power outlet and the USB port on the computer respectively. If connecting a SATA hard drive, simply insert the drive, into the top loading slot on the hard drive dock. -
Page 7: Using The Hard Drive Dock
Using the Hard Drive Dock Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. - Page 8 If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within “My Computer”. You can verify or change the drive letter through Disk Management, as outlined above.
-
Page 9: Specifications
Specifications Bus Interface USB 2.0 Front 1 x 40-pin IDE male 1 x 4-pin LP4 molex Connectors 1 x 7+15 SATA Rear 1 x USB type B 1 x Power Adapter Chipset JMicron JM20337 2.5” or 3.5” SATA 1.5 or 3.0 Gb/s with max capacity of 1.5TB Hard Drive Compatibility 2.5”... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
