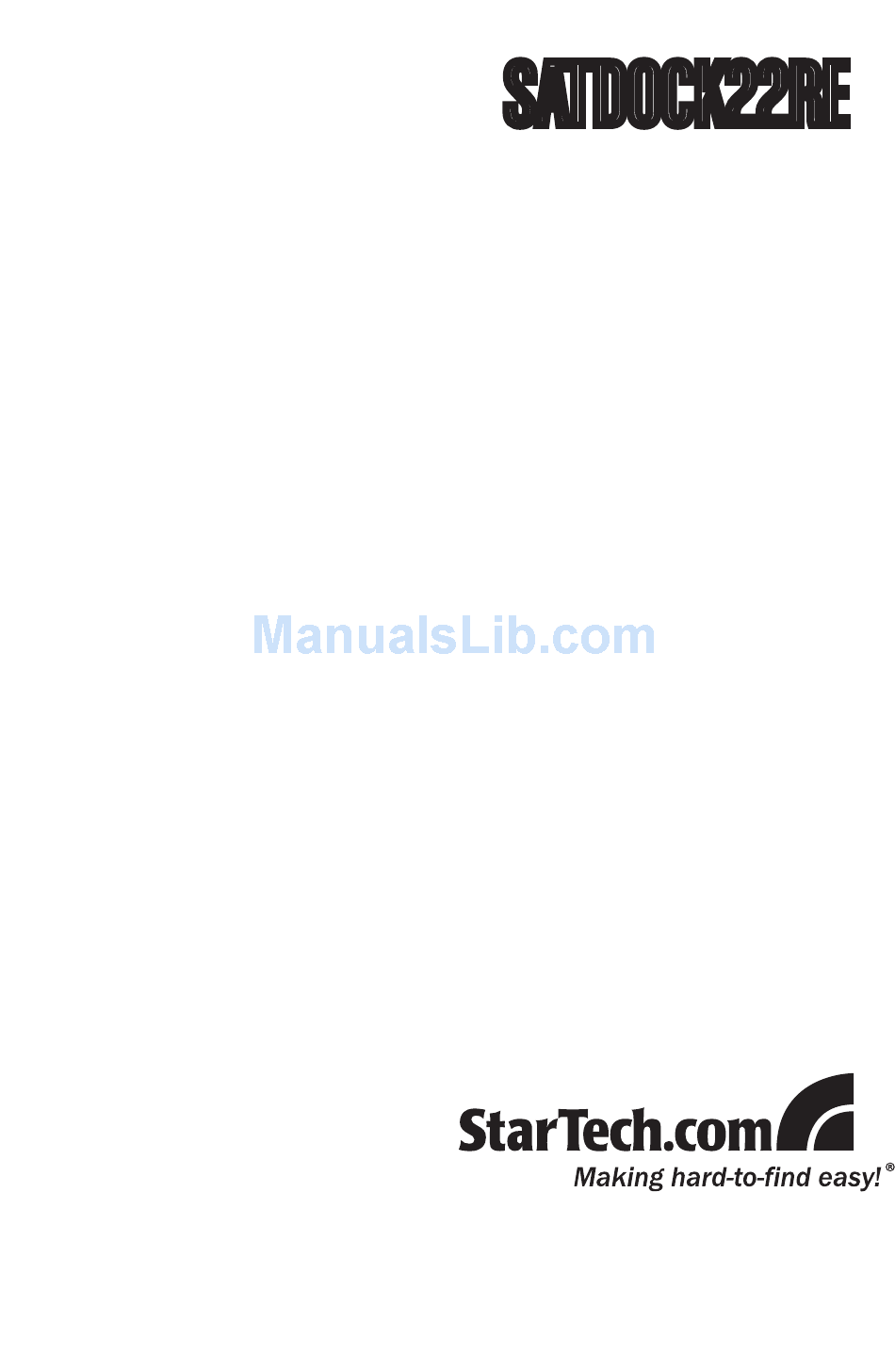

- Page 1 SATDOCK22RE Instruction Manual Serial ATA Hard Drive Dock USB 2.0 and eSATA to SATA Standalone Hard Drive Duplicator Dock Manual Revision: For the most up-to-date information, please visit www.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............3 Driver Installation .................4 How to Use ..............4 LED Status ..................4 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction

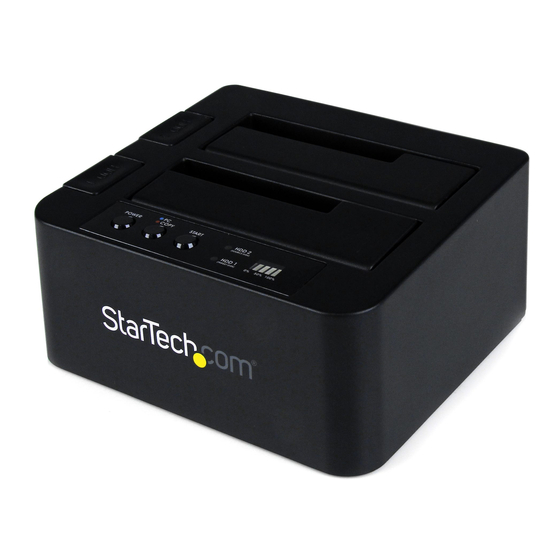

Introduction The SATDOCK22RE Dual Drive SATA Hard Drive Duplicator functions as both an external SATA hard drive docking station for 2.5” or 3.5” SATA 1.5/3.0 Gbps compatible hard drives and a convenient standalone hard drive imaging solution, delivering an exact 1 to 1 sector disk copy. -
Page 5: Installation
Installation Top View Drive Ejection Button Drive Bay (Source) Drive Bay Power (Destination) button/LED Duplicate Progress LED Duplicate/JBOD Mode button Duplicate Start button Drive Power/Activity LEDs Rear View eSATA USB type B DIN Power connector connector connector *actual product may vary from photos... -
Page 6: Hardware Installation
Hardware Installation JBOD (PC) Mode Connect the external power adapter to the hard drive dock. Install 1 or 2 hard drives into the dock in either drive bay. Power on the hard drive dock by pressing the power button. The Mode button LED should be blue to indicate JBOD mode. Press and hold the Mode button for 3 seconds to switch modes if necessary. -
Page 7: Driver Installation
Driver Installation Windows 2000/XP/Vista/Server 2008 R2/7, Mac OS X, Linux No driver installation is required for these operating systems, as this hard drive dock is natively supported, so the drivers are already installed. How to Use LED Status Name State Description Blue Drive detected... -
Page 8: Specifications
Specifications USB 2.0 Bus Interface SATA 3.0Gb/s 1 x USB type B External Connectors 1 x eSATA female* 1 x DIN power connector Chipset JMicron JMB352U Hard Drive Bays 1 x Power 1 x Mode LEDs 2 x Drive Power/Activity 1 x Duplication progress bar 2.5”... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
