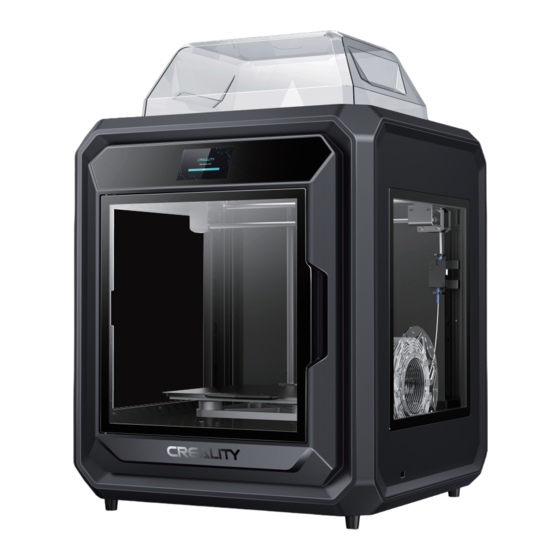

- Page 1 Create reality，achieve dreams Sermoon D3 Sermoon D3 3D Printer User Manual V1.0...
- Page 2 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes; Creality will not be responsible for any violators' legal liability under any circumstance;...
-
Page 3: Table Of Contents
....................................................4.1 Platform Calibration 14-14 ......................................................4.2 Filament Retreat 15-15 ......................................................4.3 Network Settings 16-16 ....................................................4.4 Bind the Creality Cloud 17-18 ..............................................4.5 Description of External Material Rack 19-19 ................................................ 5. Tips and Routine Maintenance 20-25 ....................................................... 20-20 5.1 Maintenance Items .................................................... -
Page 4: About The Device
1. About the Device 1.1 About the Printer External material rack Top cover Y-axis kit X-axis kit Extruder kit User interface Side door Filament runout sensor Front door Side door push switch Internal material rack USB flash disk port Intelligent Door Built-in live camera Air filtration system Z-axis optic axis... -
Page 5: Device Specifications
1.2 Device Specifications General Specifications Product Model Sermoon D3 Dimensions 553*578*656mm Max.Build Dimensions 300*250*300mm Rated Voltage 100-240V~,50/60Hz Rated Power 500W Ambient Temperature 10℃-30℃ Extruder Sprite Direct Drive Number of Nozzles Nozzle Diameter 0.4mm Slicing Thickness 0.1-0.4mm Precision ±0.1mm Printing Speed Standard printing speed: 100 mm/s; PLA max printing speed: 150 mm/s; ABS max printing speed: 250 mm/s Filament Diameter 1.75mm... -
Page 6: Packing List
1.3 Packing List Material Rack ×1 Spool & Nut ×1 PC Plate ×1 PEI Plate ×1 Printer ×1 Quick Guide ×1 Tool Box ×1 Filament ×1 Power Cable ×1 Clear Top Cover ×1 Teflon tube ×1 Tool Box List Material rack Blade ×1 Socket spanner ×1 Wrench and Screwdriver... -
Page 7: About The User Interface
2. About the User Interface 1. No further temperature setting or printing operation within 30 minutes after the temperature of extruder has been set, and the extruder starts to cool down. Set extruder temperature 2. After the temperature of hotbed has been set and there is no re-setting or printing operation within 60 Set heated bed temperature minutes, the hotbed starts to cool down. -
Page 8: First Printing
3. First Printing 3.1 Unboxing Move the extruder Remove the belt fasteners Remove the belt fasteners Remove the top foam. Remove the belt fasteners and move the Remove the foam that Lift the transparent cover in order extruder kit in the order shown. holds the extruder. - Page 9 3. First Printing 3.1 Unboxing Remove foam B from the Place the printing plate Thread the thick Teflon Tube through the fixing hole (to be placed tight against from top to bottom, then the thin Teflon Tube on the bottom of the platform in the printing platform).
-
Page 10: Filament Loading
3.2 Filament Loading Click on Print Settings → Feed/Retreat Click on Feed Load filaments as prompted by the Complete filaments loading by figure. following the UI prompts. Tips: The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest firmware UI published on the official website. -
Page 11: Start Printing
3.3 Start Printing 3.3.1 USB flash drive printing Creality Print Download at (www.creality.com) or find the software Choose a language Choose a region on a USB flash drive and install it. ermoon D3 Choose a Printer Click on "Import Model" and select the model file Tips：The current interface is for reference only. - Page 12 3.3.1 USB flash drive printing Open the model and click on “Start Slicing" Click on "Export" when the slicing is finished and then save the finished file ermoon D3 ermoon D3 ermoon D3 Generate a G-code file → Save to USB flash disk Tips：The current interface is for reference only.
- Page 13 3.3.1 USB flash drive printing Insert the USB flash disk into Click on Print File. Select the file and click on Print. the device. On the print page, you can view a preview of the You can also adjust the parameters by clicking When the printing is finished, Wait on the Settings during printing.
-
Page 14: Lan Printing
Click on the Print Settings → Network Connection, and perform networking as prompted on the user interface. Open the Creality Print, click on LAN Machine Control in the menu and select Connect Machine. With the help of the LAN, printers can be automatically scanned, and the devices can be added for multi-machine control and printing operations at the device control interface. -
Page 15: Functional Specification
4. Functional Specification 4.1 Platform Calibration This function is ON by default. The Z-axis compensation value needs to Adjust the hand-screwed nut be adjusted manually after switch-off. according to the UI prompts. Click for auto leveling Auxiliary leveling: detect the printing platform using the CR-Touch, and then adjust the printing platform using a hand-tight nut. Auto leveling: when leveling, the machine uses CR-Touch to detect the flatness of the printing platform and performs the bed mesh algorithm compensation automatically. -
Page 16: Filament Retreat
4.2 Filament Retreat Click on Settings →Feed/Retreat. Click on Retreat. Upon setting, wait for heating to reach the target temperature. Tips：The current interface is for reference only. Due to the continu- ous upgrading of functions, it shall be subject to the latest firmware UI published on the official website. -
Page 17: Network Settings
4.3 Network Settings 4.3.1 Ethernet Connection After the network cable is inserted to the machine, click on Print Settings → Network Connection → Connection Method → Ethernet on the homepage of the user interface to finish the connection to wired network. 4.3.2 WiFi Connection Click Print Settings →... -
Page 18: Bind The Creality Cloud
4.4 Bind the Creality Cloud Scan the QR code and download the app Creality cloud for 3D Printing Sign up for an account Log in Download... - Page 19 4.4 Bind the Creality Cloud Add a new device Choose Sermoon D3 Make sure the device is networked Enter the binding code Note:The language selection page of the first use guide page will also select the server environment. The Chinese language is the Chinese environment, and the non Chinese language is the international environment.
-
Page 20: Description Of External Material Rack
4.5 Description of External Material Rack Material Rack x1 Material rack screws x 2 Installation mode of external material rack... -
Page 21: Tips And Routine Maintenance
5.Tips and Routine Maintenance 5.1 Maintenance Items Maintenance instructions Machine cleanup Clean the debris inside the machine to ensure that its operation is not affected. Before each print Solution to extruder blockage: After preheating and removing the filaments, raise the temperature of the extruder and poke into the extruder from top After extruder blockage to bottom using an extruder cleaner until the blocked filaments are poked out. -
Page 22: Error Code Instructions
In the event that any of the above problems arise and cannot be resolved: ① Please visit https://www.crealitycloud.com/product, click “Products" and select the right model, and then click “Related" to view the tutorials on after-sales service; ② Or contact our after-sales service center at +86 755 3396 5666, or send e-mail to cs@creality.com. - Page 23 5.3 Maintenance instructions 5.3.1 Lubrication and Maintenance Y-axis optic axis 1 X-axis optic axis 1 Y-axis optic axis 2 X-axis optic axis 2 Z-axis optic axis 1 Z-axis optic axis 2 Tips: please grease and lubricate the designated areas regularly (as shown in the picture). Screw rod...
- Page 24 5.3.2 Use and Maintenance of the Printing Plate The residue of the platform filaments can be scraped When the first layer of the model is not glued, it is recommended off with a blade. Be cautious of safety when using. to apply glue stick evenly on the surface of the platform.
- Page 25 5.3.4 Rapid change of heat block After loosening the three top screws, Loosen the extruder top cover screws Loosen the screws and remove remove the thermal protective sleeve. and remove the extruder top cover, and the heat block. then remove the thermal plug and heater plug.
- Page 26 5.3.5 Replacement of carbon filter Pull out the air filter cartridge Remove the screws that secure the upper cover; Unplug the filter fan terminals and then Pull out the air filter cartridge. loosen the fixing screws on the rear cover.
- Page 27 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 28 Since each model is different, the actual product may be different from the picture. Please refer to the actual product. The final interpretation right belongs to Shenzhen Creality 3D Technology Co., Ltd. 18th Floor, JinXiuHongDu Building, Meilong Road, Xinniu Community, Minzhi Street, Longhua District, Shenzhen City, China.
