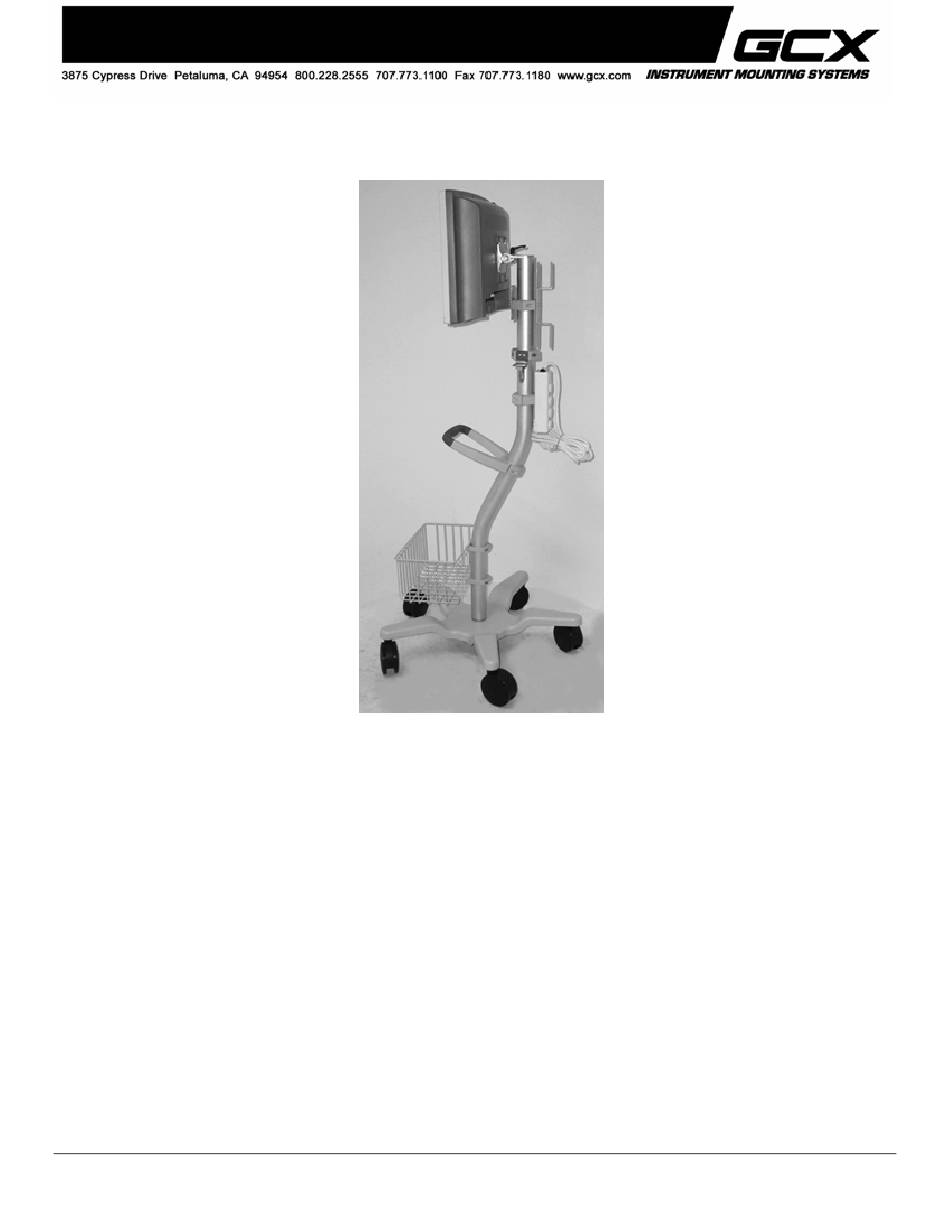

Installation Guide LiDCO Hemodynamic Monitor - Roll Stand Kit (US Version) The purpose of this guide is to describe assembly of the roll stand kit and mounting of applicable devices. Table of Contents 1.0 Assembling the Roll Stand with Counterweight and Utility Basket ................. 2 2.0 Attaching the Roll Stand Handle ..........................
#8-32 Hex Nuts (2) 5/16 Flat Washer 5/16 Lock Washer 5/16-18 x 1'' HHCS 4. Slide Basket to desired mounting position on Post and tighten two (2) Basket Clip screws to secure Basket. DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 2 of 11...
#10-32 x 9/16'' Pan Head Machine Screw (PHMS) Tools Required Phillips screwdriver (not provided). 1. Fasten Handle to Post with two (2) #10-32 x 9/16'' PHMS as shown below. #10-32 x 9/16'' PHMS (2) DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 3 of 11...
2. Position Power Outlet Strip on Roll Stand Post and fasten Rear Clamping Block to Front Block with two #10-32 x 9/16'' PHMS (below right). #8-32 x 3/4'' PHMS (2) #10-32 x 9/16'' PHMS (2) Front Clamping Block Mounting Holes on Rear of Power Outlet Strip DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 4 of 11...
#10-32 x 9/16'' Pan Head Machine Screw (PHMS) Tools Required Phillips screwdriver (not provided). 1. Fasten Syringe/Bag Holder around Post with two (2) #10-32 x 9/16'' PHMS as shown below. #10-32 x 9/16'' PHMS (2 Syringe/Bag Holder DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 5 of 11...
2. Mount Sensor Interface by inserting four (4) mounting studs into slots in mounting bracket and sliding downward into locking position (below center). Sensor Interface #10-32 x 9/16'' PHMS (2 DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 6 of 11...
2. Remove backing from black Screw Cover and press Cover over screw heads as shown below center. #10-32 x 7/8'' FHMS (3) Screw Cover DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 7 of 11...
1. Locate four (4) threaded mounting holes on rear housing (below left). 2. Fasten Mounting Adapter to PPC-150 with four (4) M4 x 10mm PHMS as shown below right. M4 x 10mm PHMS (4) Threaded Mounting Holes (4) Mounting Adapter DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 8 of 11...
Page 9
M4 x 10mm PHMS (2) VESA Mounting Plate 5. Thread two (2) M4 x 10mm screws into two (2) lower mounting holes (below left). Tighten all mounting screws. M4 x 10mm PHMS (2) DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 9 of 11...
Page 10
Step 3. M4 x 20mm PHMS (2) 3. Thread two (2) M4 x 20mm screws into two (2) lower mounting holes. Tighten all mounting screws. M4 x 20mm PHMS (2) DU-LC-0002-60 Rev C 6/14/06 GCX Corp. Page 10 of 11...
All fasteners associated with the mounting system should be inspected periodically and tightened as necessary. Cleaning the Mounting Assembly CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted devices or accessory equipment, refer to the specific instructions delivered with those products.
