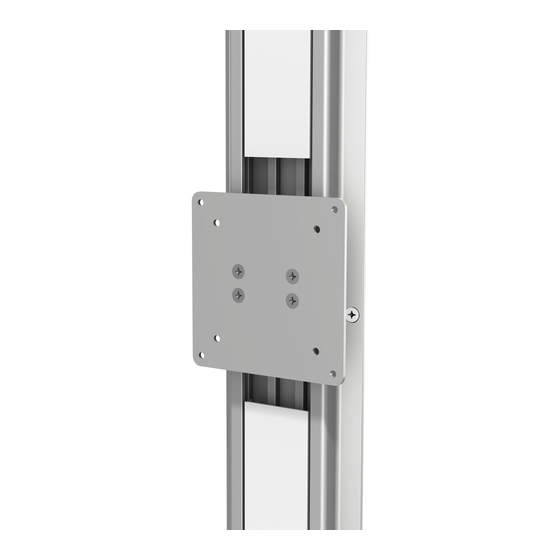

Fixed (non-swiveling/non-tilting) Flush Mount for VESA-compatible Flat Panel Display
The purpose of this guide is to:
1. Describe attachment of Flush Mount to display.
2. Describe mounting of Flush Mount in Channel.
Parts Reference
The following parts and hardware are included in this installation kit (hardware not shown):
Item #
Description
1
Flush Mount
2
Mounting Kit for 75/100 VESA Compatible Flat Panel Displays
3
Adjustable Stop (not shown)
Tools Required: Phillips screwdriver (not provided).
Installation Note: This installation procedure requires hardware from the Mounting Kit for 75/100 VESA Compatible Flat
Panel Displays (item #2 in Parts Reference). If the display has a 75 x 75mm mounting pattern (rear of display), follow the
procedure below. If the display has a 100 x 100mm mounting pattern: 1) follow instructions (DU-FLP-0002-17) included
with the Mounting Kit for 75/100 VESA Compatible Flat Panel Displays before attaching the Flush Mount.

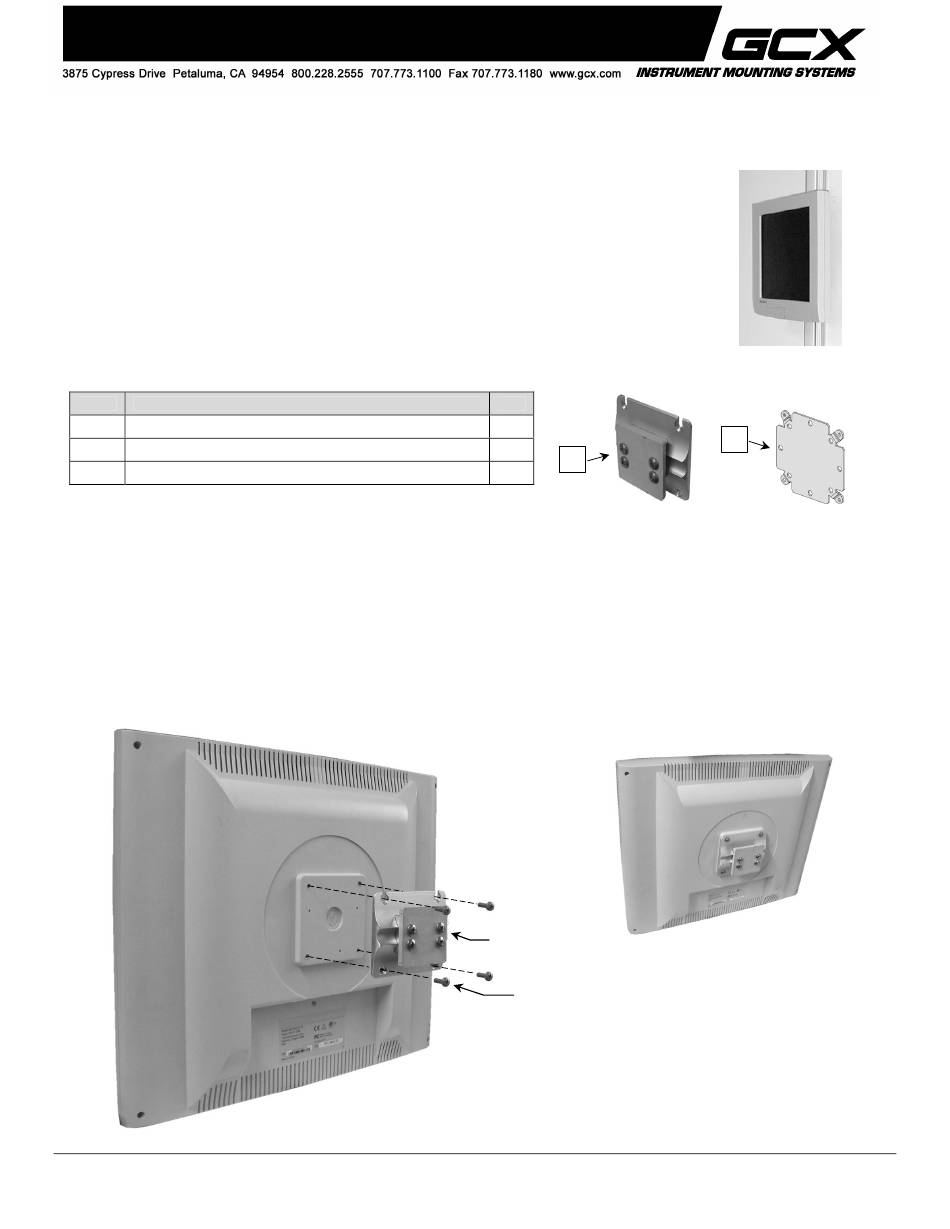

1. Using M4 pan head machine screws (PHMS) from the Mounting Kit (Item #2), fasten Flush Mount to display (or
Mounting Adapter) as shown below.
Installation Guide
Qty
1
1
1
1
Flush Mount
M4 PHMS (4)
DU-FLP-0001-10 Rev A 1/31/07 GCX Corp. Page 1 of 2
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GCX DU-FLP-0001-10
Summary of Contents for GCX DU-FLP-0001-10
- Page 1 1. Using M4 pan head machine screws (PHMS) from the Mounting Kit (Item #2), fasten Flush Mount to display (or Mounting Adapter) as shown below. Flush Mount M4 PHMS (4) DU-FLP-0001-10 Rev A 1/31/07 GCX Corp. Page 1 of 2...
- Page 2 3. Insert the Channel Slide (rear of Flush Mount) into the channel and guide the display down the channel until the Slide contacts the Adjustable Stop. Insert Slide in channel and guide to rest against Adjustable Stop Adjustable Stop DU-FLP-0001-10 Rev A 1/31/07 GCX Corp. Page 2 of 2...
