2.4. Connecting PC with Drive Module

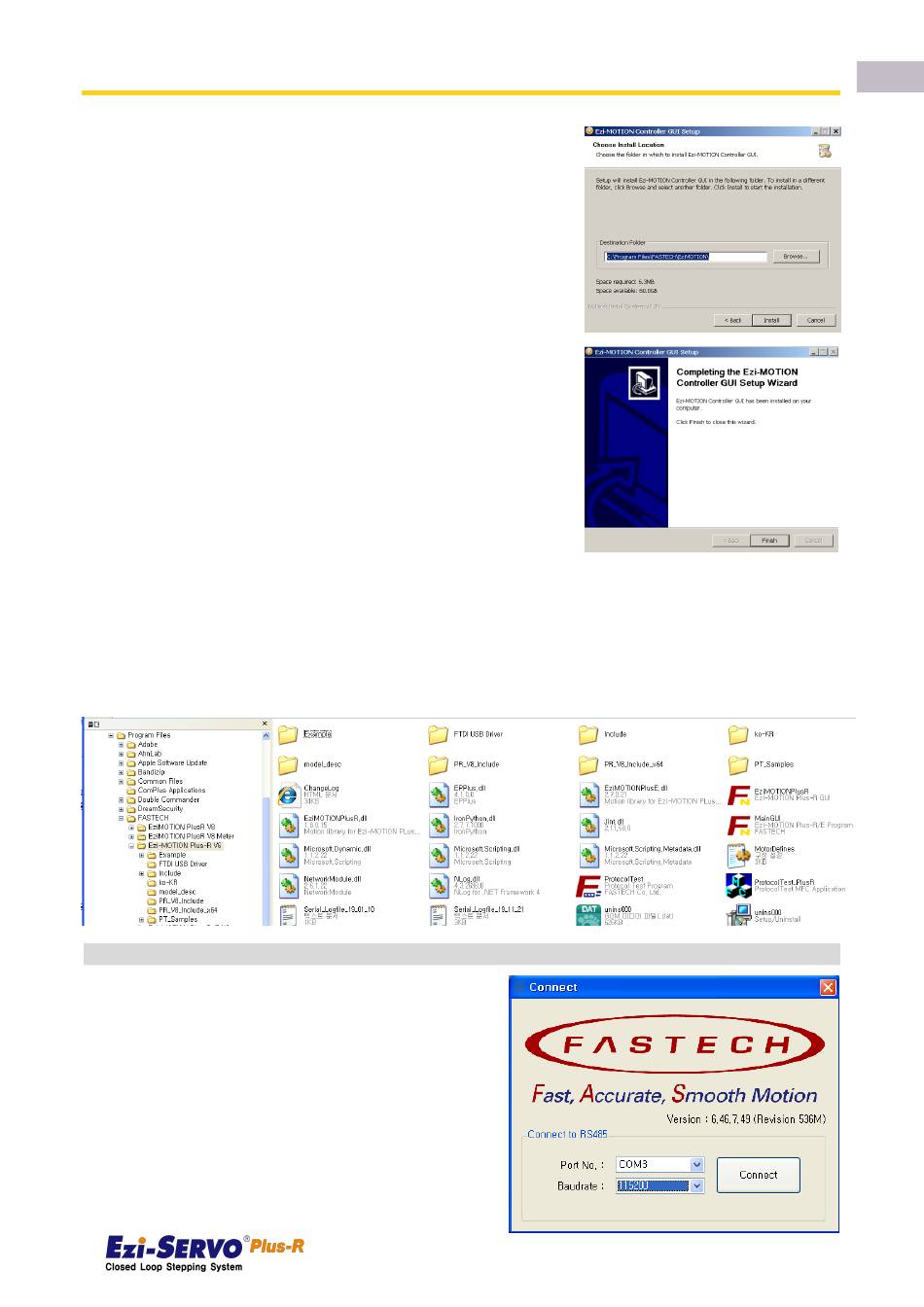

Select a folder where the program is installed,
and click 'Install' button.
Installation is completed.
Then installation is completed at the selected folder, 'Program Files/FASTECH/Ezi MOTION Plus-R
V6' folder is created and also GUI icon and program folders are installed.
1) Include folder : *dll, *.lib, *.h files
2) Example folder : source code for sample
3) PT_Samples folder : sample data files for position table.
2.4 Connecting PC with Drive Module
Execute which is User Program(GUI),
click 'Connect' button,
and the following window will be displayed.
