Fastech Ezi-Servo Plus R User Manual
  1. Manuals
  2. Brands
  3. Fastech Manuals
  4. Controller
  5. Ezi-servo plus-R
  6. User manual

Fastech Ezi-Servo Plus R User Manual

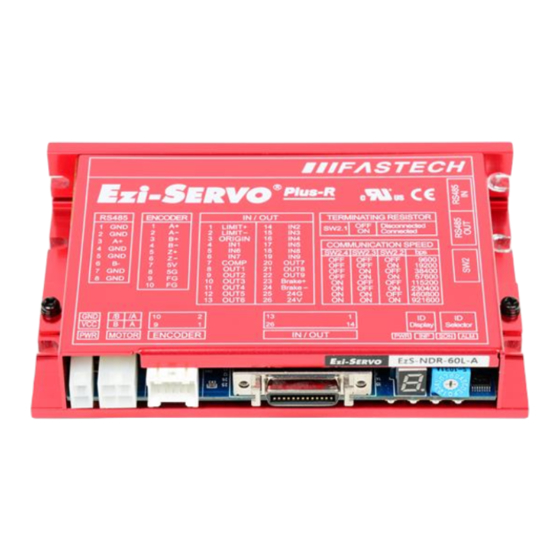

Closed loop stepping system with network based motion controller
