3.8. I/O Setting

16
The first signal 'COMP' is used to specific purpose only.
Therefore other signals cannot be
connected and used with this pin. The user can set up to 9 signals to Output 9 pins at one time.
'OUT1'~'OUT9' indicators are displayed to current setting signals.
When each signal is [ON] through CN1 connecter, icon is changed into 'red'. When the signal is
[OFF], it returns to 'white' to the original state.
4) Virtual Output Function:
After assigning the 'User OUT 0' ~ 'User OUT 8'signals to OUT1' ~ 'OUT9', when click that button
the signal changed [ON]/[OFF] through that pin.
5) I/O Logic Setting button : ④
Click this icon, and the following window will be displayed. Then he can assign a pertinent signal to
the physical pin of CN1 connecter and define 'Active Level' of the signal.
3.8 I/O Setting

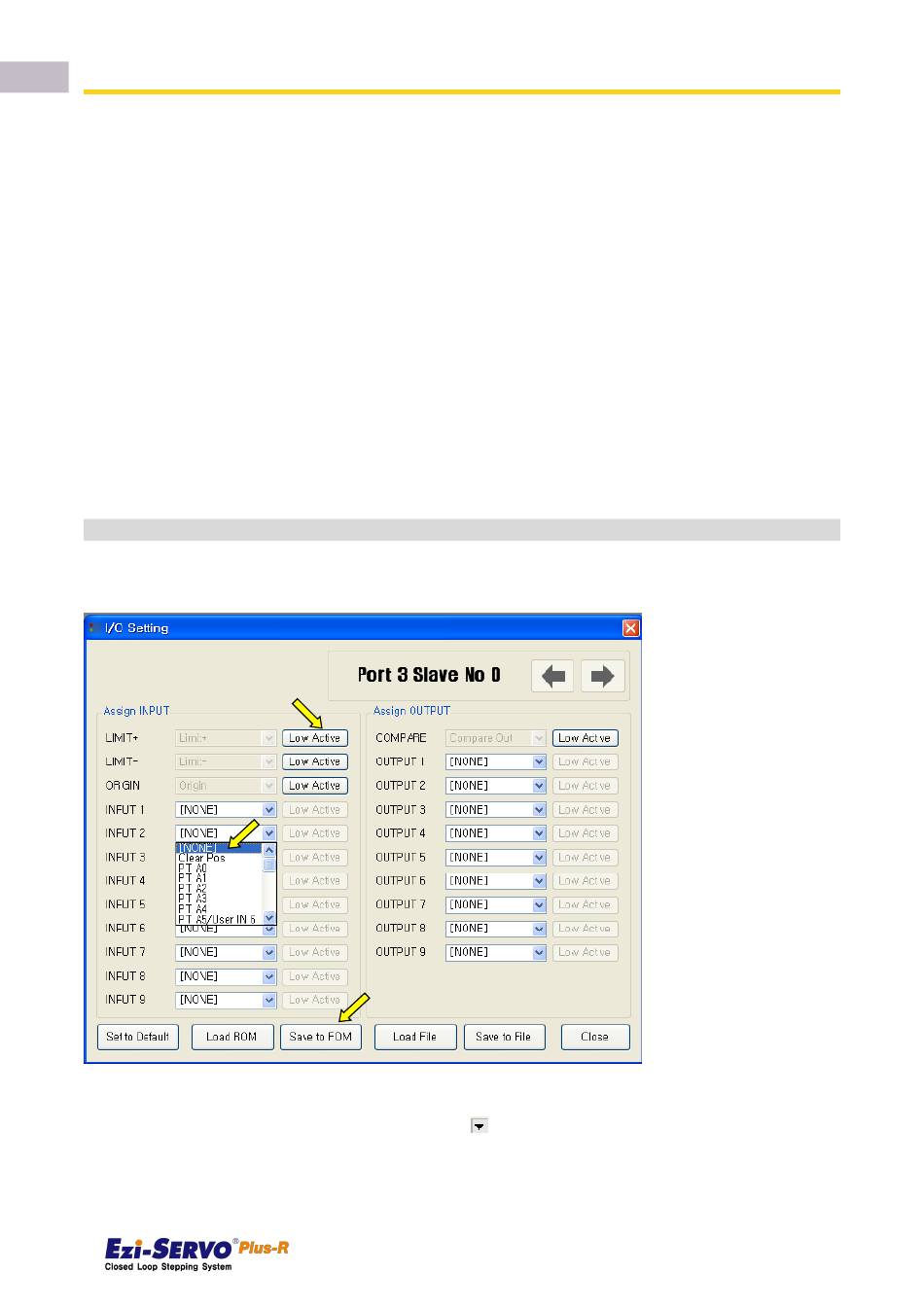

Click 'I/O Logic Setting' icon at the I/O Monitor window, and the following window will be displayed
.
standard for Ezi-SERVO Plus-R)
(
②
①
③
1) Signal Assignment : ①
To change pin assignment of CN1 connecter, click button to the right of the corresponding signal
.
name as showed above, and select signals will be displayed at the drop-down menu
