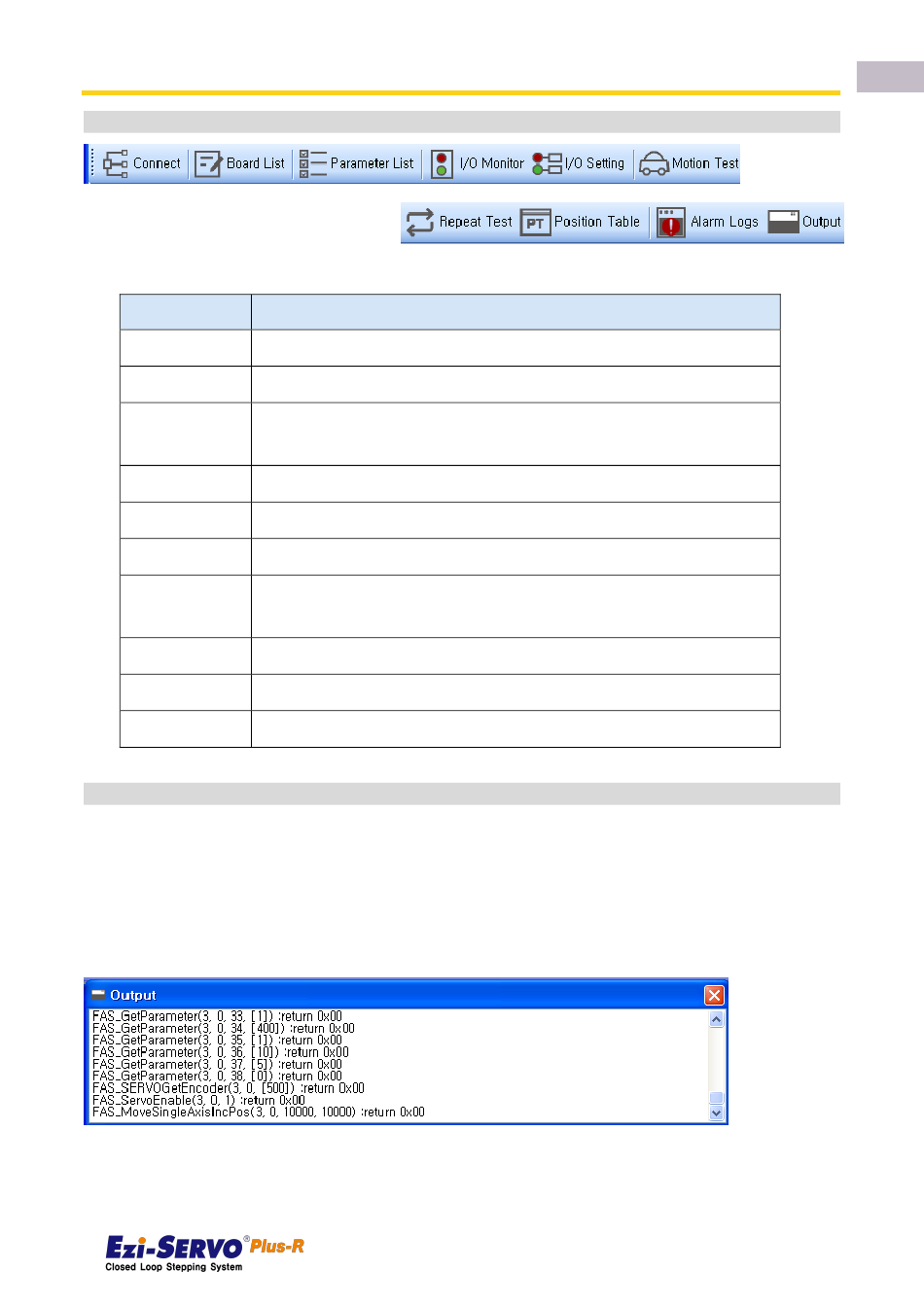

3.2. Toolbar

3.2 Toolbar
Click each button, and the following functions will be executed
Button
Connect
Board List
Parameter list
I/O Monitor
I/O Setting
Motion Test
Repeat Test
Position Table
Alarm Log

Output

3.3 Output
Click 'Output Bar' at the toolbar or check 'Menu –View – Output Bar', and the above window will be
displayed. This window includes commands used for the controller. The user can check that which
function is used, how parameter values are inputted, and how they are normally processed.
The above window displays functions which the user inputs or functions used when he clicks. For
more information of commands, refer to
To connect or disconnect with the drive
To display connected module information and communication status
To set parameter values related to operation control like a position
command
To sort parameters that the user can change them easily
To monitor digital I/O signals of CN1 connector
To set digital I/O signal assignment of CN1 connector
To execute motion commands such as Jog operation, Position operation,
Origin return operation
To input and execute position table data
To display DLL function corresponding to the command being executed
To display the DLL command that is excuted.
「User Manual-Communication
www.fastech.co.kr
Description
Function」.
