ENHANCED VISION merlin elite Pro User Manual page 24

HDMI/VGA Toggle
On the back of Merlin Elite Pro Monitor is an HDMI Dongle and VGA port which allows
for a computer or tablet signal to be attached to the Merlin Elite Pro display (additional
peripherals may be required). This port makes it possible to use the Merlin Elite Pro
display as a computer monitor to save desk space.
1. To toggle from the camera image to the computer image ensure that the
computer is connected to Merlin Elite Pro in the location indicated in Figure 12
HDMI &
VGA Port
buttons on the Control Console.
2. There are 3 different video channels
(CCTV, PC Input 1-VGA and PC Input 2-
HDMI) so to toggle from the computer
image back to the camera image, press
the [Find/Enter] and [Pause/Play] button
again on the Control Console until you
see the desired display.
3. When using Merlin Elite Pro Display as a
computer monitor, the controls for the camera (e.g. Zoom, Mode, & Marker) will
not work for the computer image.
4. Using the Merlin Elite Pro LCD as a computer monitor is similar to attaching a
typical computer monitor to your computer, or connecting a secondary display to
your laptop. Refer to your computer or laptop user manual on how to connect a
display. The Merlin Elite Pro LCD supports resolutions up to 1920 x 1080.
or HDMI Dongle then press the "[Find/Enter] and [Pause/Play]"
HDMI

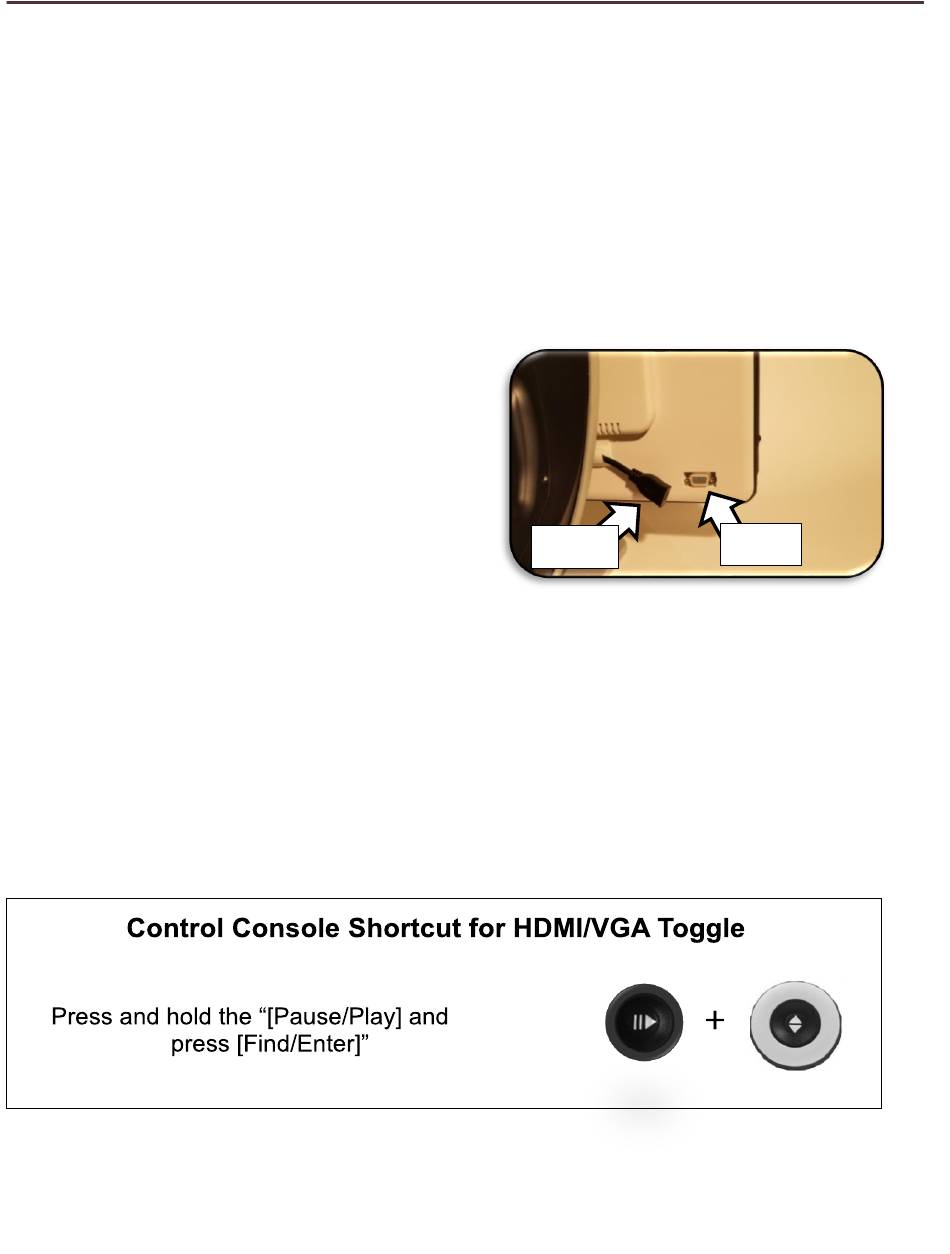

Figure 12 HDMI & VGA Port
VGA
