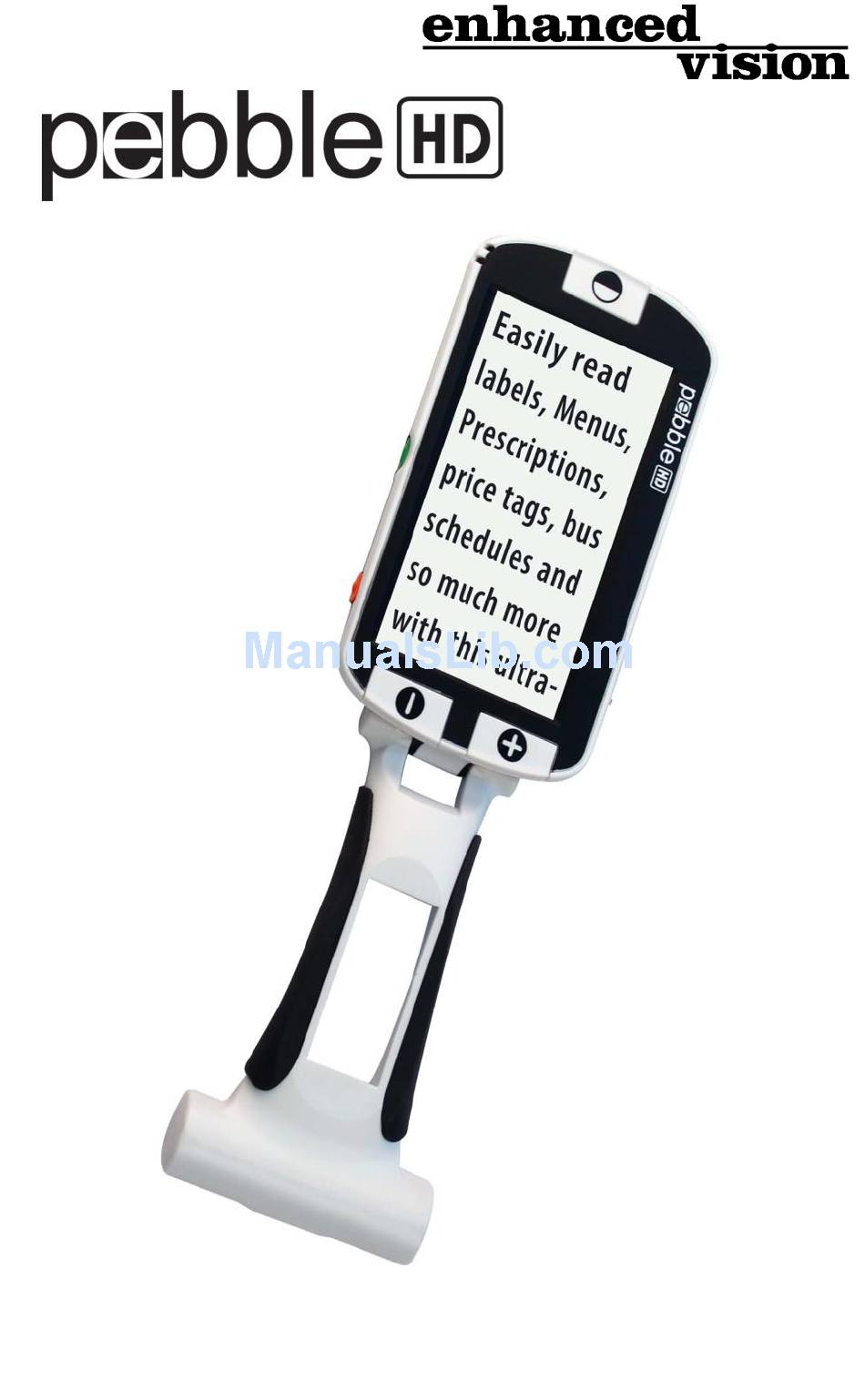

- Page 1 Screen Size 4.3” Users Manual...
- Page 2 Small enough to fit in your pocket or purse, the Pebble HD is the ideal companion to provide magnification, on the go. With the Pebble HD, you can easily read bank...
- Page 3 FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Package Contents & Controls ....8-9 Chapter 3: Using the Pebble HD Connecting the Power supply....10 Power Supply. - Page 5 EV Products ......36-38 Accessories & Pebble HD Stand ... 38-39 Contact Information.
-
Page 6: Chapter 1: Safety Precautions
Please refer all service to an authorized repair facility. Do not use the Pebble HD in, near, or around water. The Pebble HD is not designed to offer protection against contact with liquids of any kind. -
Page 7: Transportation
Always turn the power OFF on the Pebble HD when the system is not in use. If needed, clean the surface of the Pebble HD with a soft damp cloth or an electrostatic dusting wipe. DO NOT use liquid cleaners on the plastic surfaces. -
Page 8: Chapter 2 Package Contents & Controls
PACKAGE CONTENTS & CONTROLS Please refer to the illustrations on the next page to identify the package contents and controls of your Pebble HD. In addition to this users guide, you’ll find the following items inside the box: 1. Pebble HD 2. -
Page 9: Package Contents & Controls
Chapter 2 Package Contents & Controls... -
Page 10: Chapter 3: Using The Pebble Hd
Your Pebble HD is packaged with the integrated battery partially charged. We highly recommend that you plug your Pebble HD into wall power in order to fully charge the integrated battery prior to using the device for the first time. (See Page 13 for charging... -
Page 11: Power Supply
POWER SUPPLY Included within your Pebble HD box (International orders is multiple inserts for the outlets of various ONLY) countries. 1. To install choose the correct insert for your country (See figure 1). 2. Find the tab that is located at the top of your... -
Page 12: Charging The Battery
Important Points When Using Battery Power ▶ The rechargeable battery should be fully charged prior to the first use. ▶ When fully charged your Pebble HD should last up to 2.5 to 3.0 hours battery life depending on the LCD Brightness setting. -
Page 13: Battery Charger Status Indicators
[-] ZOOM and Orange GALLERY Button for 2 seconds on the live video screen. (Pebble HD battery at full charge) (Pebble HD with low charge will power off after 3-5 seconds if not connected to adaptor) Chapter 3 Using the Pebble HD... -
Page 14: Turning The Power On/Off
LCD display. Figure 1 To turn off the Pebble HD, press and hold the [POWER] button again for 2 seconds or more. A short, confirmation tone will be heard when the unit is powered Off. -
Page 15: Entering The Menu & Adjusting The Image Size
Figure 1 on the LCD. There are 5 ‘fixed’ zoom levels on the Pebble HD. Pressing and Holding the [+] or [-] ZOOM button for more than 1 second activates a ‘continuous zoom’ mode. Chapter 3 Using the Pebble HD... -
Page 16: Viewing Modes / Deluxe & Basic
• Full Color Image (Factory Default – always ON) • Black and White Image • Positive Image (Factory = White background / Black text) • Negative Image (Factory = Black background / White text) Chapter 3 Using the Pebble HD... -
Page 17: Freezing An Image (Snapshot Function)
To save an image, press and hold the [FREEZE] button for 2-3 seconds. You will see Figure 2 Saving Icon which will be displayed and the Pebble HD will then return to normal operation mode when save is complete. Figure 2... -
Page 18: Saving, Gallery & Deleting Images
4. To go back to the Image Gallery press the [FREEZE] button 5. To resume normal operation press the [GALLERY] for 3 seconds if you entered from Live screen or [MODE] button if you entered via menu. Chapter 3 Using the Pebble HD... - Page 19 25 You will have two options on this screen: o Display Images - Pebble HD enters Gallery Mode and you view your pictures normally o Delete All Images – a confirmation message will pop up with CANCEL or CONFIRM.
-
Page 20: Turning Led On/Off
Use the following procedure to turn off the LED lighting: 1. With the Pebble HD power turned on, Press and Hold the BLUE [Mode] button then press the [+] SIZE together. -
Page 21: Using The Clock & Time/Date
Using the Clock & Time/Date Feature The Pebble HD can maintain, and display, the current Time & Date once it is set. To set the current Time/Date please see pages 25 & 27 for Menu List and Instructions: To View the clock on live screen •... -
Page 22: Adjusting The Handle & Positions
Adjusting the Handle The Pebble HD features a unique adjustable handle, which can rotate, allowing you to easily magnify a wide variety of objects in various positions. Refer to the illustration below for more information on how the handle can be positioned according to your needs. - Page 23 Hand-Held Position (180˚ open) Open the handle as shown below. Adjusting the handle in this position is convenient for magnifying a wide variety of objects. (See Figures 2a & 2b) Figure 2a Figure 2b Chapter 3 Using the Pebble HD...
- Page 24 Adjusting the handle in this position is convenient when both hands are needed to perform other tasks. (See Figures 4a, 4b & 4c) Figure 4a Figure 4b Figure 4c Chapter 3 Using the Pebble HD...
-
Page 25: Chapter 4: Using The Menus
USING THE MENU User Settings User Settings is designed to allow users to set their own custom configuration and preferences. Upon exiting the User Settings submenu, all selected options are saved. Languages Select from any of the available languages. ... -
Page 26: Factory Settings & Image Gallery
Factory Settings The Factory Settings submenu is designed to provide access to product and system information as well as reset the device to factory settings when needed. Product Information Product SN: Software RN: Boot RN: Board SN: Language Group-x ... -
Page 27: Setting Clock Time/Date
Setting the Clock Time/Date The Pebble HD can maintain, and display, the current Time & Date once it is set. To set the current Time/Date: 1. Enter the Menu by pressing the [MODE] button and the Red [FREEZE] buttons (on the top and left side) together. -
Page 28: Connecting To Your Pc
Image folder. Figure 2 5. Drag or copy the images to your desktop or the desired location on your PC. Firmware Update To keep your Pebble HD up to date visit our software support page http://www.enhancedvision.com/support/software.html Chapter 4 Using the Menu... -
Page 29: Product Information & Master Reset
Basic or Deluxe Configurations. Master Reset If the Pebble HD is powered on, but is unresponsive – ‘Press and Hold’ the [Mode] button and press the ‘Orange’ button to reset the Pebble HD. Press the Green power button to power the Pebble HD on again. -
Page 30: Chapter 5: Troubleshooting
Video image on LCD is blurry or not clear • Clean the LCD display and/or camera lens using the included cleaning cloth. • Adjust the distance of the Pebble HD from your reading material or adjust the handle angle as needed to improve image quality (focus) •... - Page 31 If the battery is nearly empty, and ready to shutoff, the battery icon will be displayed with a partial ‘Red’ bar. At this point if the Pebble HD is not plugged in within 1-2 minutes it will turn off. Unit becomes warm to the touch...
-
Page 32: Chapter 6: Specifications
LCD Brightness: 500cd/m2 (at full brightness) • Viewing Angle: ~60˚ Physical Dimensions: ~ 5.5”L x 3.1”W x 1.25” H (with handle closed for Pebble HD 4.3”) ~ 10.2”L x 3.1”W x 1”H (with handle fully extended for Pebble HD 4.3”) Weight: ~ 7.1 oz. - Page 33 Storage temperature: -4˚ – 140˚F (-20˚ – 60˚C) Battery: • 1x 3.7V Li-Ion rechargeable battery, 3100mAh (included in Pebble HD) Estimated Charge times (using rechargeable batteries): ~4 hours (standby mode), ~ 5.5 hours (live mode), ~ 9.5 hours (PC USB)
-
Page 34: Chapter 7: Warranty Information
All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal use; e) Damage due to operation of the Pebble HD with equipment not supplied or designed by Enhanced Vision. You must provide proof of purchase, bearing the date of purchase, in order to receive warranty service. -
Page 35: Service Process
Enhanced Vision representative or the Enhanced Vision warranty service center. If warranty service is required, please contact Enhanced Vision at (800) 440-9476 Monday through Friday, between 8 a.m. and 5 p.m. Pacific Standard Time (PST) to request a return authorization number. -
Page 36: Chapter 8 Other Enhanced Vision Products
(OCR). High definition color and contrast provides a beautiful, crystal clear picture and vibrant colors. Merlin elite’s unique design allows for a wide field of view, displaying more text on the screen. Magnification: 2.4x - 70x Chapter 8 Other Enhanced Vision Products... - Page 37 Sony® Full HD 1080p 3-in-1 camera for reading, writing, and viewing magnified images at any distance. Wi-Fi capability, and optional Full Page Text-to-Speech (OCR) makes it a perfect solution for school, work or home Chapter 8 Other Enhanced Vision Products...
-
Page 38: Accessories & Pebble Hd Stand
(With extended zoom up to 25x) Convenient cases for storage and transport of all Enhanced Vision products. Power Supplies Spare power supplies for your Enhanced Vision products Pebble Stand Hands-free stand for your Enhanced Vision products Contact Information: (US Office) Phone: (714)465-3400 Fax: (714)374-1821... - Page 39 Pebble Stand If you intend on using your Pebble HD frequently on a variety of Materials, The Pebble HD Stand provides many advantages and benefits: It allows for a significant increase in Field of View at Low Magnification – adding almost 3x more Field of View.
- Page 40 The extent to which Pebble HD can improve the ability to see images and text depends on a person’s individual condition and level of visual impairment. The...
