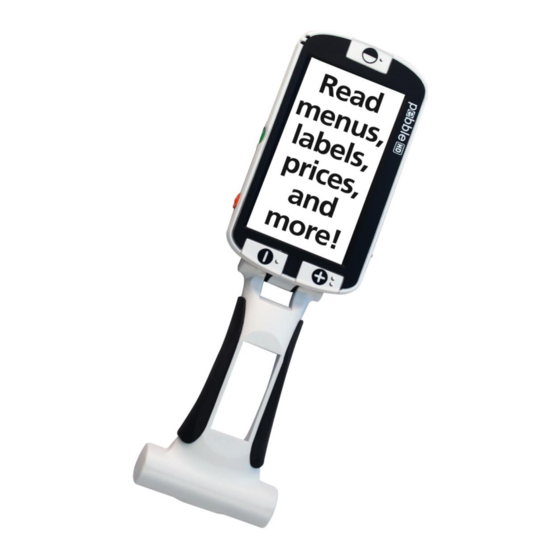

ENHANCED VISION Pebble HD User Manual

Screen size 4.3"
Hide thumbs Also See for Pebble HD:
Table of Contents

Advertisement

Quick Links

TM
Screen Size
4.3"
Users Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pebble HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENHANCED VISION Pebble HD

Summary of Contents for ENHANCED VISION Pebble HD

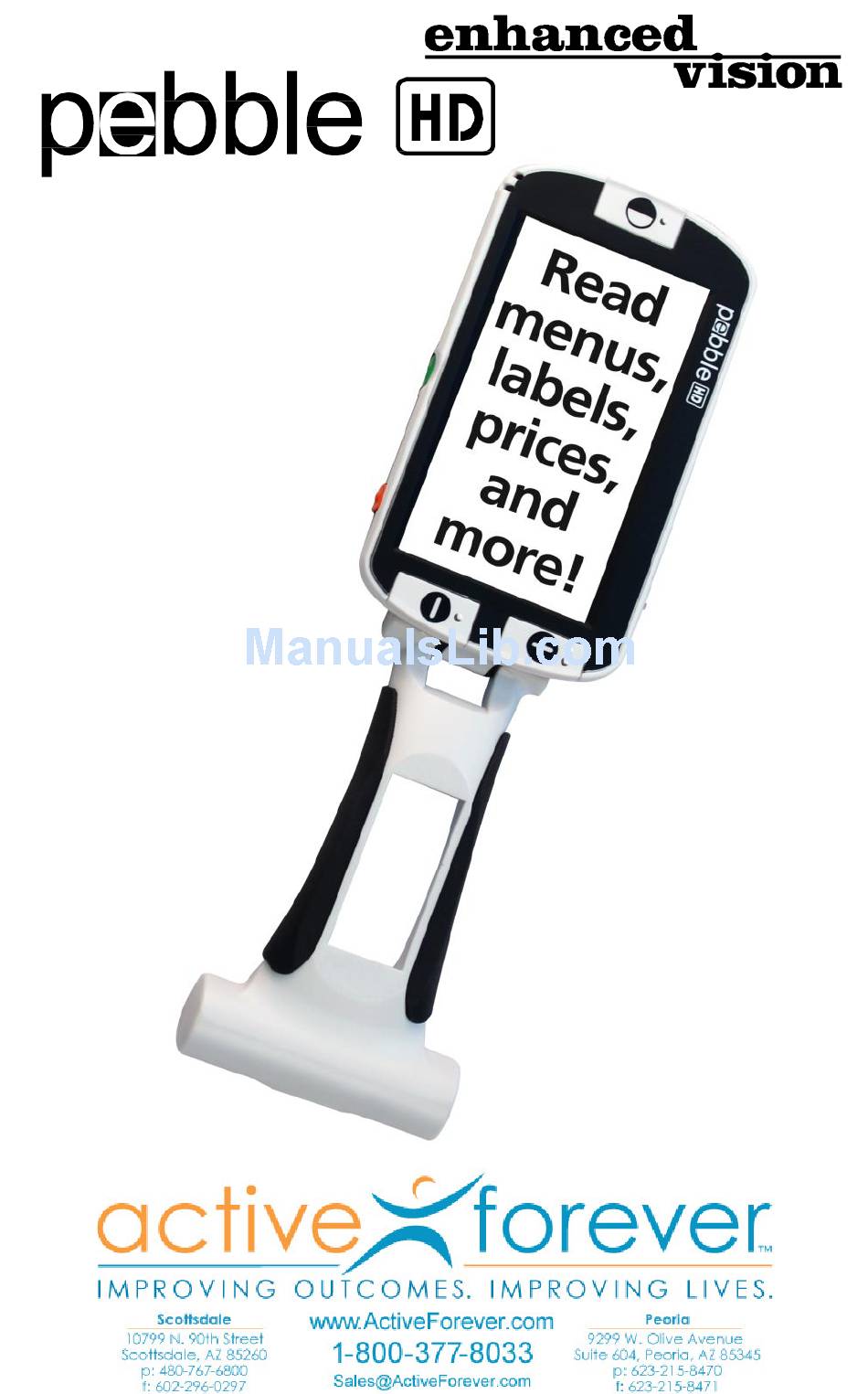

  • Page 1 Screen Size 4.3” Users Manual...
  • Page 2 Small enough to fit in your pocket or purse, the Pebble HD is the ideal companion to provide magnification, on the go. With the Pebble HD, you can easily read bank...
  • Page 3 FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Accessories ......8-9 Chapter 3: Using the Pebble HD Connecting the Power supply ....10 Power Supply .
  • Page 5 Specifications ......31-32 Chapter 7: Warranty Information Warranty Information/Service Process ..33-34 Chapter 8: Other Enhanced Vision Products Other Enhanced Vision Products ..35-37 Table of Contents...

  • Page 6: Chapter 1: Safety Precautions

    Please refer all service to an authorized repair facility. ▶ Do not use the Pebble HD in, near, or around water. The Pebble HD is not designed to offer protection against contact with liquids of any kind.

  • Page 7: Transportation

    ▶ Pebble HD comes with a convenient carrying case for transport. To prevent the unit from being accidentally dropped and damaged, always return the Pebble HD to the carrying case while not in use. ▶ This product is intended to be used as a portable device.

  • Page 8: Chapter 2: Package Contents & Controls

    (Style may vary depending on country) USB to Mini Power Cable (used for Domestic power supply and Firmware Upgrade) Please note the locations of the following controls on your Pebble HD: A. Viewing Mode button (Mode) B. LCD Screen (4.3”) C. Size buttons (Magnification) D.
  • Page 9 (Domestic)

  • Page 10: Chapter 3: Using The Pebble Hd

    Your Pebble HD is packaged with the integrated battery partially charged. We highly recommend that you plug your Pebble HD into wall power in order to fully charge the integrated battery prior to using the device for the first time. (See Page 13 for charging indicator light...

  • Page 11: Power Supply

    (See figure 2). 3.) You may now proceed to plug this into an available outlet and begin to charge your Pebble HD magnifier. To offer additional protection during an electrical storm, a surge protector may also be used and is recommended.

  • Page 12: Charging The Battery

    AC Adaptor/power supply. • Note - If the battery is completely drained the Pebble HD will not turn on while charging (nor have any indicator lights) – after 30 minutes the Pebble HD will turn on automatically.

  • Page 13: Battery Charger Status Indicators

    Amber Battery Battery Low - Battery Only Note: When your Pebble HD battery is getting low (Approximately 15 minutes before shutoff) a battery icon will be displayed for 2 seconds in 5 minute intervals. A ‘chime’ sound will be heard (if Text Voice Prompts is enabled) when the battery icon is displayed first time (Not each time).

  • Page 14: Turning The Power On/Off

    Figure 1 appear on the LCD display. To turn off the Pebble HD, press and hold the [POWER] button again for 2 seconds or more. A short, confirmation tone will be heard when the unit is powered Off.

  • Page 15: Adjusting The Image Size

    Figure 3 decrease the magnification size on the LCD. There are 5 ‘fixed’ zoom levels on the Pebble HD. Pressing and Holding the [+] or [-] SIZE button for more than 1 second activates a ‘continuous zoom’ mode. Chapter 3 Using the Pebble HD...

  • Page 16: Viewing Modes / Voice Volume

    You can also adjust the size and change viewing modes after freezing an image. This feature is quite useful for reading price tags, prescriptions or other information that may need to be temporarily captured. Chapter 3 Using the Pebble HD...

  • Page 17: Saving, Recalling & Deleting Images

    ‘chime’ sound and the message “Saving” will be displayed (and announced if ‘Text Voice Messages’ is enabled) and the Pebble HD will return to normal operation mode. Recalling a Saved Snapshot Once you have a saved snapshot image you can ‘recall’ it and view it.

  • Page 18: Connecting & Transferring Images To Your Pc

    PC. This allows you to store or share these images. Follow the instructions to upload your saved images to the PC. 1) Plug the USB cable into the Pebble HD (See Figure 1) and the opposite end into the PC. (See Figure 2)

  • Page 19: Turning Led On/Off

    The time and date will also be announced (‘Clock Voice Messages’ must be enabled**) ** This feature of the Pebble HD will initially support the following languages: English, French and German. When additional language support for this feature is available a Firmware update will be needed (See Page 20).

  • Page 20: Carrying Case / Firmware Update

    Figure 3 The carrying case is designed to be attached securely to your belt. Firmware Update To keep your Pebble HD up to date visit our software support page at: http://www. enhancedvision. com/support/software. html Chapter 3 Using the Pebble HD...

  • Page 21: Adjusting The Handle

    Adjusting the Handle The Pebble HD features a unique adjustable handle, which can rotate, allowing you to easily magnify a wide variety of objects in various positions. Refer to the illustration below for more information on how the handle can be positioned according to your needs.

  • Page 22: Reading & Hand-Held Position

    Hand-Held Position (180˚ open) Open the handle as shown below. Adjusting the handle in this position is convenient for magnifying a wide variety of objects. (See Figures 2a & 2b) Figure 2a Figure 2b Chapter 3 Using the Pebble HD...

  • Page 23: Writing & Hands- Free/Desk Top Position

    Open the handle at a slight angle, 180˚ or 210˚ for hands-free or desktop use. Adjusting the handle in this position is convenient when both hands are needed to perform other tasks. (See Figures 4a, 4b & 4c) Figure 4a Figure 4b Figure 4c Chapter 3 Using the Pebble HD...

  • Page 24: Chapter 4: Using The Menu

    Pebble HD will automatically exit and resume normal operation Adjusting LCD Brightness: Your Pebble HD is set to the brightest level (5) on the LCD display when shipped from the factory. If desired, use the following procedure to manually adjust the brightness of...
  • Page 25 28 available. Use the following procedure to select between the 28 available color modes: 1) Enter the Pebble HD Menu by pressing the [MODE] and Red [FREEZE] buttons. 2) Rotate the [SCROLL Wheel] clockwise until Color Select is highlighted and press the [+] SIZE button.
  • Page 26 4) Rotate the [SCROLL Wheel] until you have the desired text/background combination and press the [+] SIZE button to select. The Pebble HD will now store this until changed. 5) Repeat steps 3 & 4 to change the pre-set Color Select 2 &...
  • Page 27 Prompts The Pebble HD has four (4) distinct prompts that can be enabled/disabled individually in the Menu. 1. Press the [MODE] and Red [FREEZE] buttons to enter the Pebble HD Menu. 2. Rotate the [SCROLL Wheel] clockwise until ‘Prompts’ is highlighted.

  • Page 28: Product Information

    Product Information Product Information will display the technical information of the Pebble HD and also allows you to restore the Pebble HD back to its factory settings. 1. Press the [MODE] and Red [FREEZE] buttons to enter the Pebble HD Menu.

  • Page 29: Chapter 5 Troubleshooting

    • Try selecting different viewing modes to improve image quality (page 16) • Video image on LCD display is too bright/dark • The Pebble HD is designed to be used in moderate lighting conditions, preferably indoors. Bright lighting (or direct sunlight) may produce shadows and/or reduce visibility.
  • Page 30 It is normal for the Pebble HD to become warm (sometimes, very warm) after extended periods of use. However, this is completely normal and does not indicate a malfunction.

  • Page 31: Chapter 6 Specifications

    Physical Dimensions: ~ 5.5”L x 3.1”W x 1.25” H (with handle closed for Pebble HD 4.3”) ~ 10.2”L x 3.1”W x 1”H (with handle fully extended for Pebble HD 4.3”) Weight: ~ 7.1 oz. for Pebble HD 4.3” Magnification Ranges: 4.5x, 5.5x, 7.8x, 9.4x, 13.4x, 16.2x, 20x (For Pebble HD 4.3”)
  • Page 32 Storage temperature: -4˚ – 140˚F (-20˚ – 60˚C) Battery: • 1x 3.7V Li-Ion rechargeable battery, 3100mAh (included in Pebble HD) Estimated Charge times (using rechargeable batteries): ~4 hours (standby mode), ~ 5.5 hours (live mode), ~ 9.5 hours (PC USB)

  • Page 33: Warranty Information/Service Process

    Enhanced Vision products are designed to give you the highest quality image, convenient features, ease of use and reliable service. The Pebble HD has been inspected and tested prior to shipping. Enhanced Vision warrants the Pebble HD against defects in material and workmanship under normal use for two (2) years from the date of original purchase.
  • Page 34 Enhanced Vision representative or the Enhanced Vision warranty service center. If warranty service is required, please contact Enhanced Vision at (800) 440-9476 Monday through Friday, between 8 a.m. and 5 p.m. Pacific Standard Time (PST) to request a return authorization number.

  • Page 35: Chapter 8 Other Enhanced Vision Products

    (OCR). High definition color and contrast provides a beautiful, crystal clear picture and vibrant colors. Merlin elite’s unique design allows for a wide field of view, displaying more text on the screen. Magnification: 2.4x - 70x Chapter 8 Other Enhanced Vision Products...
  • Page 36 Compatible with popular magnification software and the latest Windows* operating systems, Transformer’s unique compact design is perfect for school, work, or home. Magnification: 3.5X – 14X (digital) Chapter 8 Other Enhanced Vision Products...
  • Page 37 Carrying Cases Convenient cases for storage and transport of all Enhanced Vision products. Power Supplies Spare power supplies for your Enhanced Vision products. Contact Information: (US Office) Phone: (714)465-3400 Fax: (714)374-1821 (UK Office) Phone: +44 (0)115 9442317 Fax: +44 (0)115 9440720...
  • Page 38 NOTES ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ Notes...
  • Page 39 NOTES ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ Notes...
  • Page 40 The extent to which Pebble HD can improve the ability to see images and text depends on a person’s individual condition and level of visual impairment. The...
