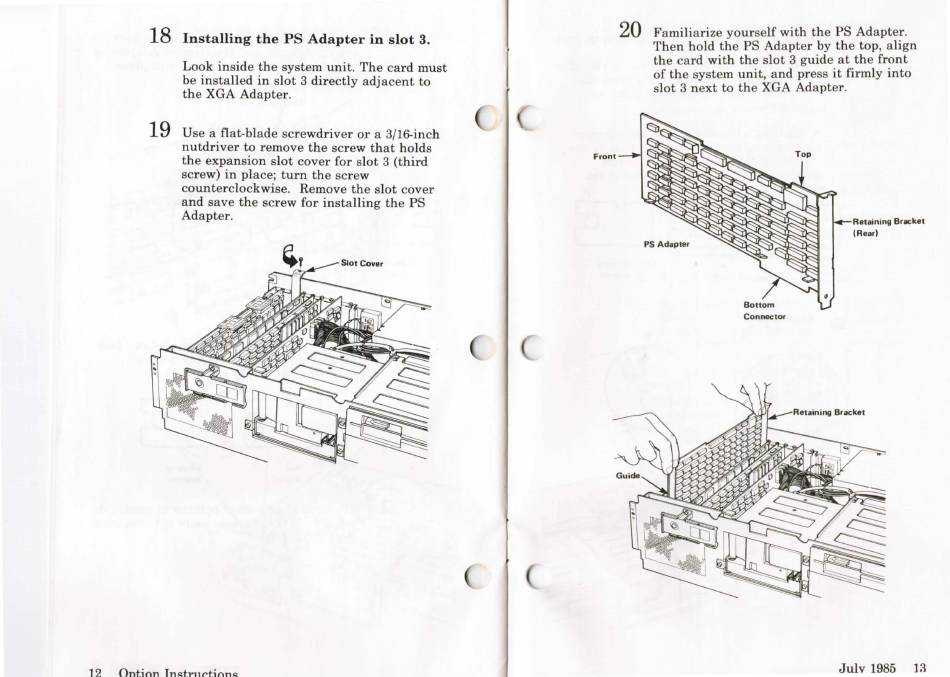

Installing the PS Adapter in slo t 3.
Look inside the system unit. The card must
be installed in slot 3 directly adjacent to
the XGA Adapter.
19
Use a flat-blade screwdriver or a 3/l6-inch
nutdriver to remove the screw that holds
the expansion slot cover for slot 3 (third
screw) in place; turn the screw
counterclockwise. Remove the slot cover
and save the screw for installing the PS
Adapter.
20
Front
Familiarize yourself with the PS Adapter.
Then hold the PS Adapter by the top, align
the card with the slot 3 guide at the front
of the system unit, and press it firmly into
slot 3 next to the XGA Adapter.
PS Adapter
Connector
Retaining Bracket
(Rear)
~t1etal",ng Bracket
