IBM Programmed Symbols Adapter Operating Instructions Manual page 5

5

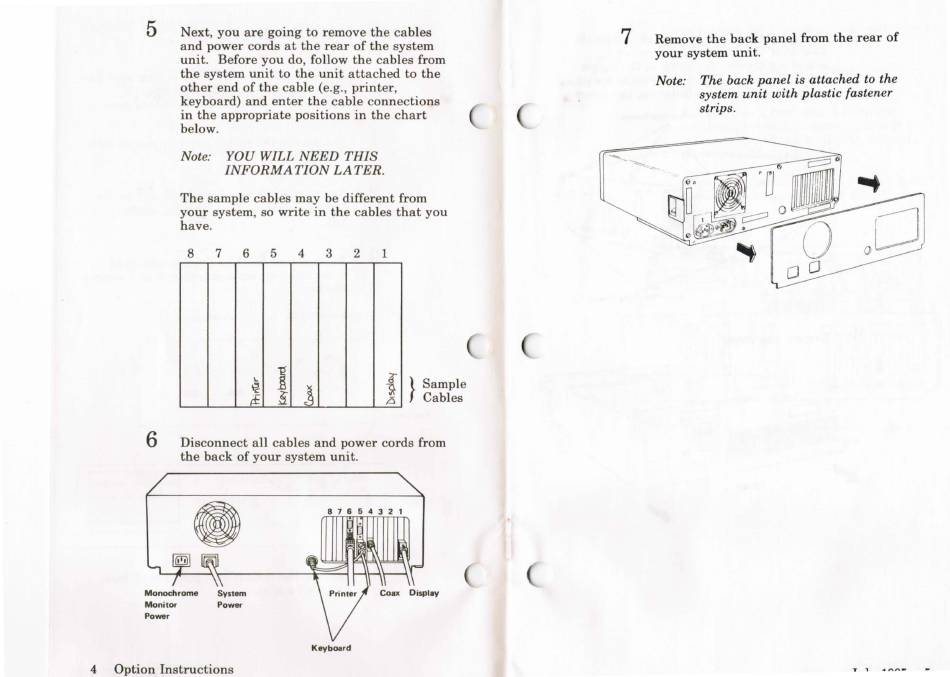

N ext, you are going to remove the cables
and power cords at the rear of the system
unit. Before you do, follow the cables from
the system unit to the unit attached to the
other end of the cable (e.g., printer,
keyboard) and enter the cable connections
in the appropriate positions in the chart
below.
Note: YOU WILL NEED THIS
INFORMATION LATER.
The sample cables may be different from
your system, so write in the cables that you
have.
8
7 6 5
~
I
~
if
E
4
3
2
]
1
;r
~
,c
}
Sample
Cables
6
Disconnect all cables and power cords from
the back of your system unit.
Monochrome System
Monitor Power
Power
Keyboard
4 Option Instructions
7
Remove the back panel from the rear of
your system unit.
Note: The back panel is attached to the
system unit with plastic fastener
strips.
T 1 .... ",... ..
