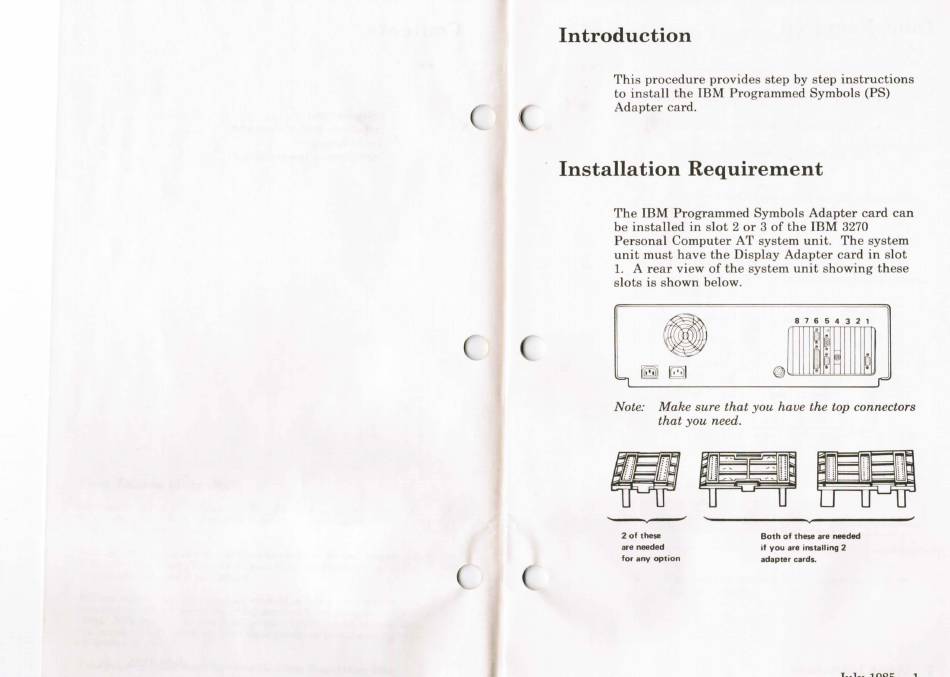

Introduction
This procedure provides step by step instructions
to install the IBM Programmed Symbols (PS)
Adapter card.
Installation Requirement
The IBM Programmed Symbols Adapter card can
be installed in slot 2 or 3 of the IBM 3270
Personal Computer AT system unit. The system
unit must have the Display Adapter card in slot
1.
A rear view of the system unit showing these
slots is shown below.
8 7 6 5 4 3 2 1
-
.
j:
.
.
.
' "
@
~
Note: Make sure that you have the top connectors
that you need.
~ _ _ ~ _ _ _ _ J '~ _ _ _ _ _ _ _ _ _ _
- v __________
~J
2 of these
are needed
for any option
Both of these are needed
if you are installing 2
adapter cards.
T •• l •• 1001:: 1
