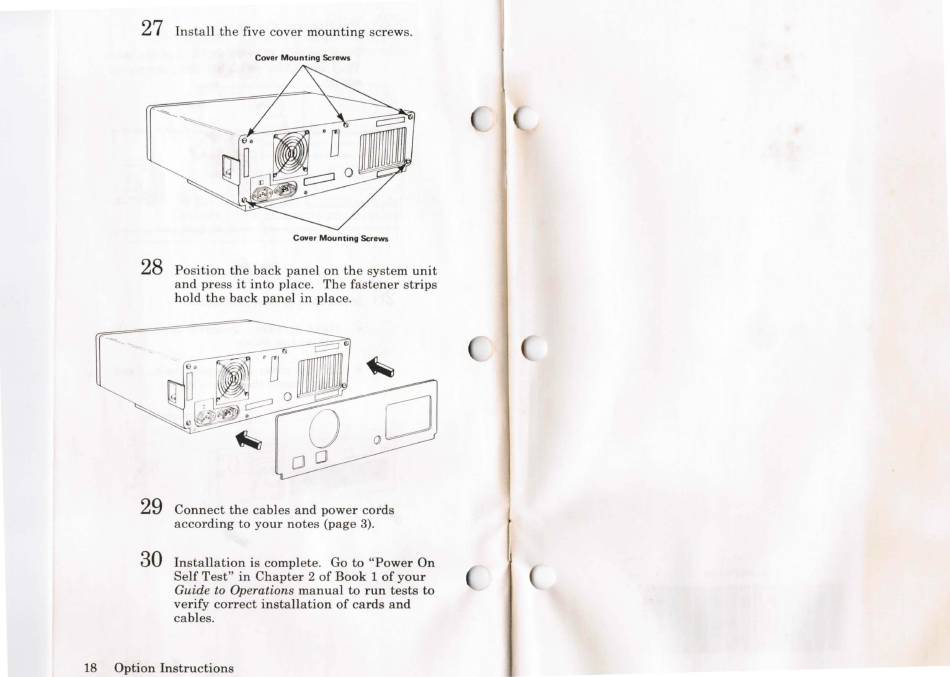

27
Install the five cover mounting
screws.
Cover Mounting Screws
Cover Mounting Screws
28
Position the back panel on the system unit
and press it into place. The fastener strips
hold the back panel in place.
29
Connect the cables and power cords
according to your notes (page 3).
30
Installation is complete. Go to
"Power On
Self Test" in Chapter 2 of Book 1
of
your
Guide to Operations manual to run tests to
verify correct installation of cards and
cables.
18
Option
Instructions
