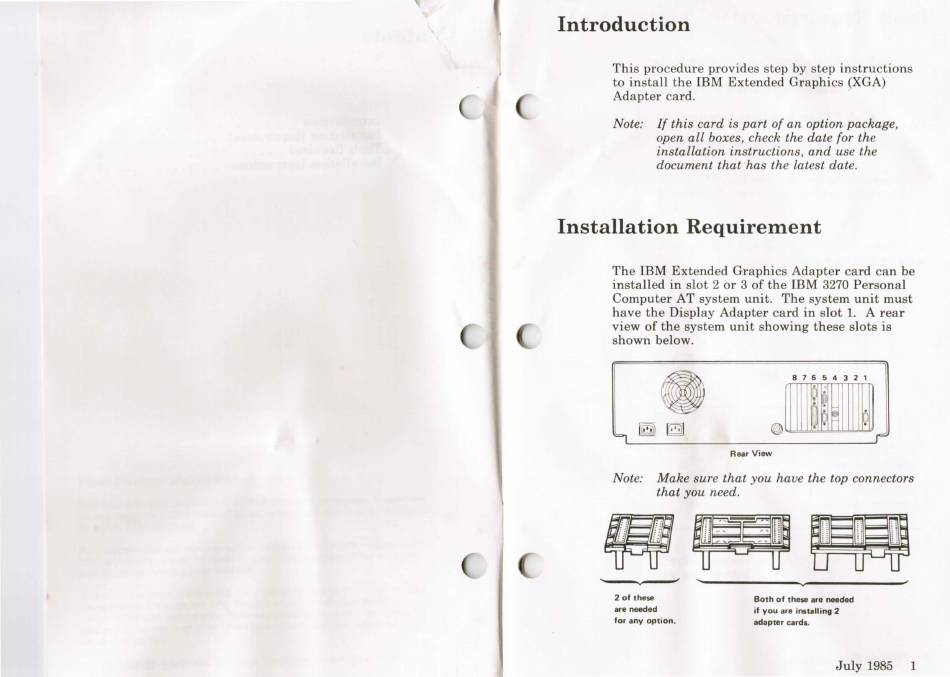

Introduction
This procedure provides step by step instructions
to install the IBM Extended Graphics (XGA)
Adapter card.
Note: If this card is part of an option package,
open all boxes, check the date for the
installation instructions, and use the
document that has the latest date.
Installation Requirement
The IBM Extended Graphics Adapter card can be
installed in slot 2 or 3 of the IBM 3270 Personal
Computer AT system unit. The system unit must
have the Display Adapter card in slot
1.
A rear
view of the system unit showing these slots is
shown below.
8 7 6 5 4 3 2 1
-
j:
~
0 •
Q)
~
•
Rear View
Note: Make sure that you have the top connectors
that you need.
2 of these
are needed
for any option.
Both of these are needed
if you are installing 2
adapter cards.
July 1985 1
