Cordwood BTU's
Emissions (grams/hr) EPA Certified
Efficiency (HHV)*
Flue Size
Maximum Log Size
Firebox Size
*The stated efficiency is based on the higher heating value of the fuel.
This Model cannot be sold in the U.S.A.
UNIT DIMENSIONS
24"
610mm
Images for OUTSIDE AIR DIMENSIONS
OUTSIDE AIR DIMENSIONS
21-1/4"
[540mm]
Rear
F2450CSA Wood Medium Stove
F2450CSA
75,000 BTU's
2.3 grams/hr
0.10 grams/MJ (output)
73.3%
6" (152mm)
18" (457 mm)
2.3 cu.ft.
24"
610mm
21-1/4"
[540mm]
4-9/16" (115mm)
Images for OUTSIDE AIR DIMENSIONS
1
27
"
8
690mm
13
24
"
16
630mm
7
6
"
16
163mm
(from fuel door opening)
Rear
23-1/8"
[587mm]
(from fuel door opening)
Front
21-1/2"
[546mm]
Rear
1
27
"
8
690mm
13
24
"
16
630mm
7
6
"
16
163mm
23-1/8"
[587mm]
4-9/16" (115mm)
21-1/2"
[546mm]
6-13/16"(173mm)
F2450CSA Wood Stove |
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Regency Fireplace Products F2450CSA
Summary of Contents for Regency Fireplace Products F2450CSA

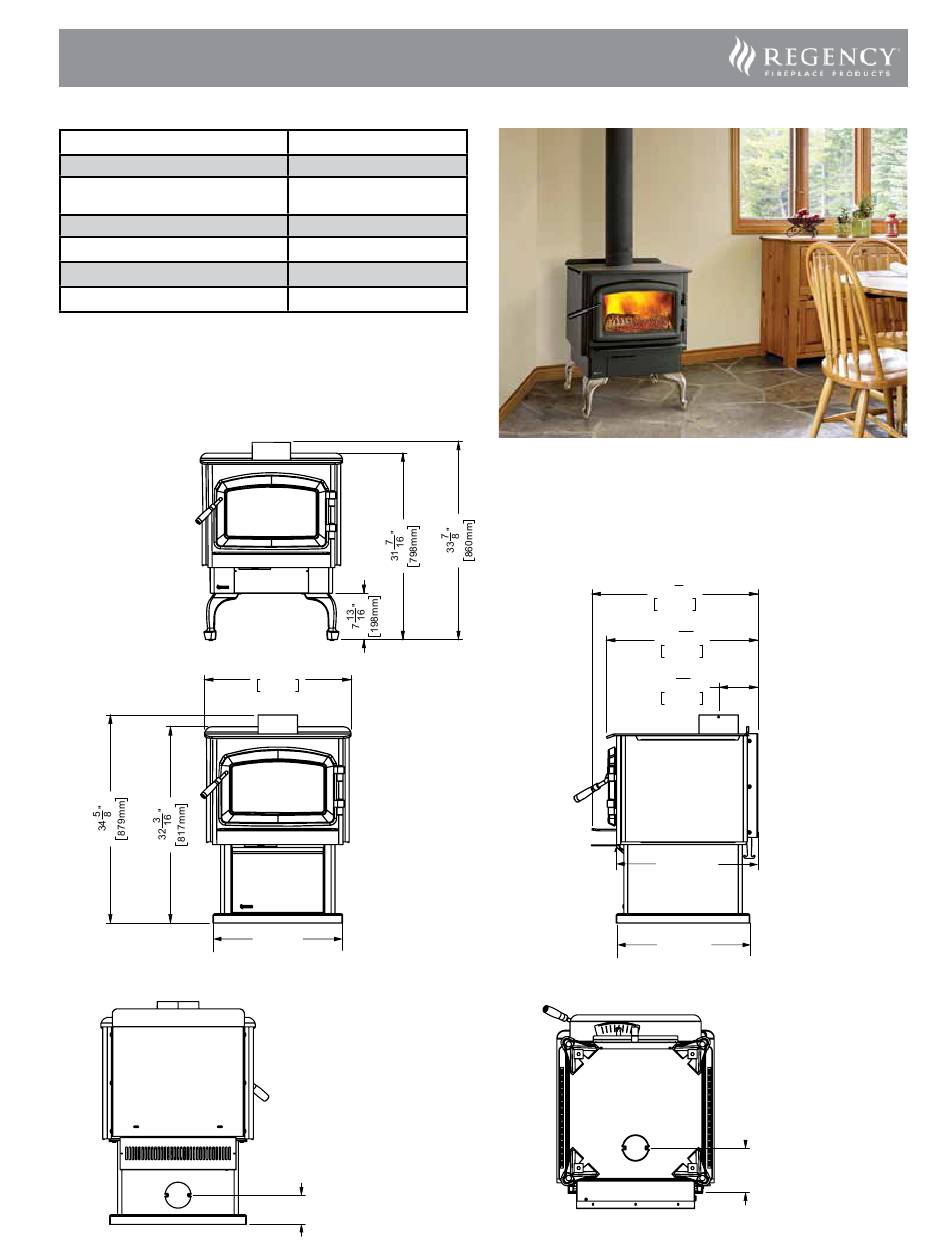

- Page 1 F2450CSA Wood Medium Stove Model F2450CSA Cordwood BTU’s 75,000 BTU’s 2.3 grams/hr Emissions (grams/hr) EPA Certified 0.10 grams/MJ (output) Efficiency (HHV)* 73.3% Flue Size 6" (152mm) Maximum Log Size 18” (457 mm) Firebox Size 2.3 cu.ft. *The stated efficiency is based on the higher heating value of the fuel.
-
Page 2: Minimum Clearance To Combustible Materials
From Corner From Flue Center-Line Medium F2450 with Airmate 15" (381mm) 8" (203mm) 6" (152mm) 27" (686mm) 14-1/2" (368mm) 18" (457mm) with Rear Deflector 15" (381mm) 10" (254mm) 6" (152mm) 27" (686mm) 16-1/2" (419mm) 18" (457mm) | F2450CSA Wood Stove... -
Page 3: Floor Protection
Residential Close Clearance (To be installed with required pipe components) Unit F2450 with Airmate Canada 48" (1219mm) 18" (457mm) 40-3/8" (1026 mm) 8" (203mm) F2450 with Rear Deflector Canada 50" (1270mm) 18" (457mm) 40-3/8" (1026 mm) 8" (203mm) F2450CSA Wood Stove |... - Page 4 Canada 40-3/8" (1026 mm) 63-7/16" (1611 mm) 54-7/8" (1394 mm) 26-5/16" (669 mm) Residential Close Clearance (To be installed with required pipe components) Canada 40-3/8" (1026 mm) 60-9/16" (1539 mm) 52-7/8" (1343 mm) 24-5/16" (618 mm) | F2450CSA Wood Stove...
- Page 5 I N A S L E E P I N G R O O M O F A TRANSPORTABLE BUILDING. 12. Use silicone to create an effective vapour barrier at the location where the chimney or other component penetrates to the exterior of the structure. F2450CSA Wood Stove |...
- Page 6 6. Fasten the raincap with spark screens (if required) to the top of your chimney. 7. To complete your chimney installation, install the double wall connector pipe from the stove’s flue collar to the chimney support device. Horizontal Installation | F2450CSA Wood Stove...
-
Page 7: Masonry Chimney
Maintain proper clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other obstructions for safety and proper draft operation. The space heater is to be connected to a factory-built chimney conforming to CAN/ULC-S629, Standard for 650 C Factory-Built Chimneys. F2450CSA Wood Stove |... -
Page 8: Combustible Wall Chimney Connector Pass-Throughs
Cover opening with and support chimney section on both sides with 24 gage minimum sheet metal supports. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners used to secure the metal chimney connector do not penetrate chimney flue liner. | F2450CSA Wood Stove... -
Page 9: Recommended Heights For Woodstove Flue
Example b) 1000' 18.72' 21.84' 2000' 19.44' 22.68' 5000' 21.60' 25.20' 8000' 23.76' 27.72' WARNING: CAUTION: The structural integrity of the mobile home DO NOT INSTALL IN SLEEPING floor, wall and ceiling/roof must be maintained. ROOM F2450CSA Wood Stove |...
