C44CS

INPUT

OUTPUT

IR OUTPUT

IR INPUT

HDMI 1

HDMI 2

HDMI 3

HDMI 4

HDMI 1

HDBT 1

HDBT 2

HDBT 3

HDBT 4

IR CTRL

TCP/IP

RS-232

UPGRADE

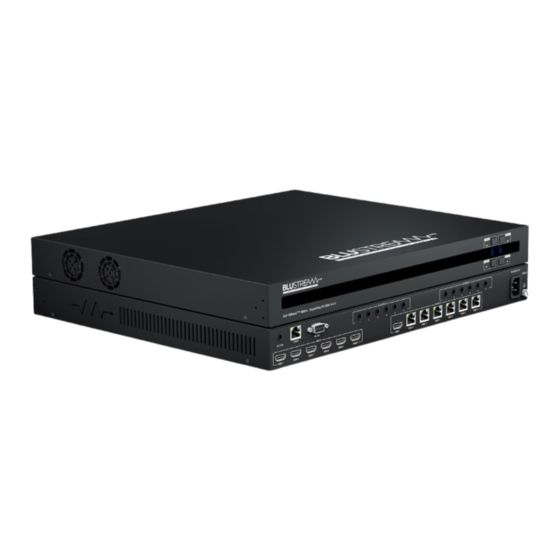

C44CS / C66CS / C88CS

User Manual

RevA3_C44CS-KIT/C66CS/C88CS_User_Manual

C O N T R A C T O R

S E R I E S

Table of Contents

Need help?

Do you have a question about the C44CS and is the answer not in the manual?

Questions and answers

Summary of Contents for BluStream C44CS

Page 1 HDMI 4 HDMI 1 HDBT 1 HDBT 2 HDBT 3 HDBT 4 IR CTRL TCP/IP RS-232 UPGRADE C44CS / C66CS / C88CS User Manual RevA3_C44CS-KIT/C66CS/C88CS_User_Manual C O N T R A C T O R S E R I E S...
Page 2: Table Of Contents
Remote Control Description IR Commands 16-17 Specifications Package Contents Maintenance RS-232 Config & Telnet Commands 19-21 Web-GUI Firmware Update 22-23 Main (MCU) Firmware Update 24-25 Certifications Schematic Notes 28-29 www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 3: Introduction
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency • Features 4 x (C44CS), 6 x (C66CS) or 8 x (C88CS) HDMI inputs which can be independently routed to 4 x (C44CS), 6 x (C66CS) or 8 x (C88CS)HDBaseT™ outputs •...
Page 4: Front Panel Description
4 IR Emitter Outputs - 3.5mm mono connector to connect to Blustream IR emitter. Used for local source control 5 IR Receiver Inputs - 3.5mm stereo connector to connect to Blustream IR receiver. Used to extend IR from matrix to HDBaseT™...
Page 5: Edid Management
15 : DVI 1280x1024@60Hz, Audio None 16 : DVI 1920x1080@60Hz, Audio None 17 : DVI 1920x1200@60Hz, Audio None 18 : HDMI 1920x1200@60Hz, Audio 2ch PCM/6ch PCM 19 : User EDID 1 20 : User EDID 2 contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 6: Front Panel Control
The Blustream range of products include Matrix control via IR. IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR conversion.
Page 7: Understanding The Hdbaset™ Status Led's
When installing CAT cables it is advised that you use the best possible CAT cable quality. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable (or better) for installations, especially when running longer distances, in areas of high EMI, or for 4K signal distribution. It is advised that using any method of patch panel, wall plate, or join within the CAT cable is avoided as these can add degradation to the signal.
Page 8: Web Gui Control
Matrix. Simply select the square that corresponds with the input and zone you wish to change. There is also a power button on the lower right corner to turn the Matrix on or off. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 9 A User or Admin also has the ability to Save or Recall pre-configured Presets. A Saved Preset will store the specified input to output configuration, and allow the configuration to be recalled as required. There is also a power button on the lower right corner to turn the Matrix on or off. contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 10 The Output Page allows settings specific to the outputs of the Matrix to be changed. A Name can be specified as well as turn PoC (Power Over Cable) on or off for each output / receiver. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 11 Please note: CEC is subject to the support of the sources and displays connected to the Matrix. contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 12 HDBT Receiver connceted to a display. If the Local radio box is selected, RS-232 commands will be sent out of the DB9 serial port at the rear of the Matrix. Baud rate and terminator command as well as Hex or ASCII can be selected. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 13 If RS-232 Off is enabeld, the User Off Command will be sent out fo the corresponding HDBT Receiver, when the Matrix is turned off. You can also specify the Baud Rate and Command Ending (eg: new line, carriage return) for the match the RS-232 device connected to the HDBT Receiver. contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 14 Browse and select the appropriate firmware file from your computer (firmware available to download form the Blustream website). Clicking Submit will send the firmware file to the Matrix and begin the upgrade process. The upgrade process will take several minutes to complete and the Matrix will reboot once finished. Please do not disconnect your computer, or Matrix, from the network until the firmware has been delivered successfully.
Page 15 2. Select the User 2 radio button 3. Enter Name as User2 (or the user’s name) 4. Enter Current Password as user2 5. Enter New password and Confirm New Password as 12345 6. Select the ‘Save’ button at the bottom contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 16: Remote Control Description
Please note: Press the PTP button to instantly mirror all inputs and outputs (example - input 1 to output 1, input 2 to output 2 etc). The supplied remote control differs with the number of available buttons for the C44CS-KIT NEC Customer Code = 1898 IR Commands...
Page 17 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689 contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 18: Specifications
• RS-232 Serial Port: 1 x DB-9, female • IR Input Ports (C88CS): 9 x 3.5mm stereo jack, (C66CS): 7 x 3.5mm stereo jack, (C44CS): 5 x 3.5mm stereo jack • IR Output Ports (C88CS): 8 x 3.5mm mono jack, (C66CS): 6 x 3.5mm mono jack, (C44CS): 4 x 3.5mm mono jack •...
Page 19 Some other examples that other control systems deploy include \r or 0D (in hex) • Spaces – Blustream commands do not require space between commands unless specified. There may be some programs that require spacing in order to work.
Page 20 Disable IR Remote-control Mode On HDBT Output xx Enable RS232 Remote-control Mode On HDBT IROUT xx OFF To Allow Matrix To Be Controlled From Receiver IR RS232OUT xx ON Output xx To Allow Matrix To Be Controlled From Remote PC www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 21 Output 1-8 xx = [01-08] : Output 1 - 8 yy=[01…08]: Select One HDMI In Port 1-8 Set OUTPUT:xx use HDMI/HDBT EDID OUT xx EH/ET xx=[00]: All OUTPUT port, [01...08]: OUTPUT port yy=[01...08]: INPUT port contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 22: Web-Gui Firmware Update
As the web-GUI is used to update the main Matrix firmware, it is important to ensure that the web-GUI firmware is the latest version before updating the main Matrix firmware. Please check the reported firmware versions against the versions available to download from the Blustream website. To update the web-GUI firmware: 1) Login to the web-GUI update menu: Default IP Address is: 192.168.0.200:100...
Page 23 C O N T R A C T O R S E R I E S 4) Click 'Choose File' and select the web-GUI (MediaTek) firmware file downloaded from the Blustream website. This will be a .bin type file: 5) Press 'Apply' to begin the firmware update process.
Page 24 2) Once the main product web-GUI has been accessed, click on the tab at the top of the page marked ‘Upgrade Firmware’: 3) Select ‘Browse’ 4) Press ‘Choose File’ and select the main (MCU) firmware file downloaded from the Blustream website. This will be a .app type file. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 25 7) Once the Matrix has rebooted login to the product and confirm the firmware have updated to the latest versions: Please note: you may have to refresh your browser for the updated firmware versions to show. contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 26 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 27: Schematic
C44CS-KIT/C66CS/C88CS USER MANUAL C O N T R A C T O R S E R I E S Schematic contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 28 C O N T R A C T O R S E R I E S Notes –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk...
Page 29 C O N T R A C T O R S E R I E S –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk...
Page 30 C O N T R A C T O R S E R I E S www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
