- Page 1 HMXL88 HMXL88 User Manual...
-
Page 2: Table Of Contents
Cat5e/6/6a cabling with or in close par- allel proximity to mains power cables. Do not substitute or use any other power supply other than the enclosed unit, or a Blustream approved re-placement. Do not disassemble either the Trans- mitter or Receiver units for any reason. -
Page 3: Introduction

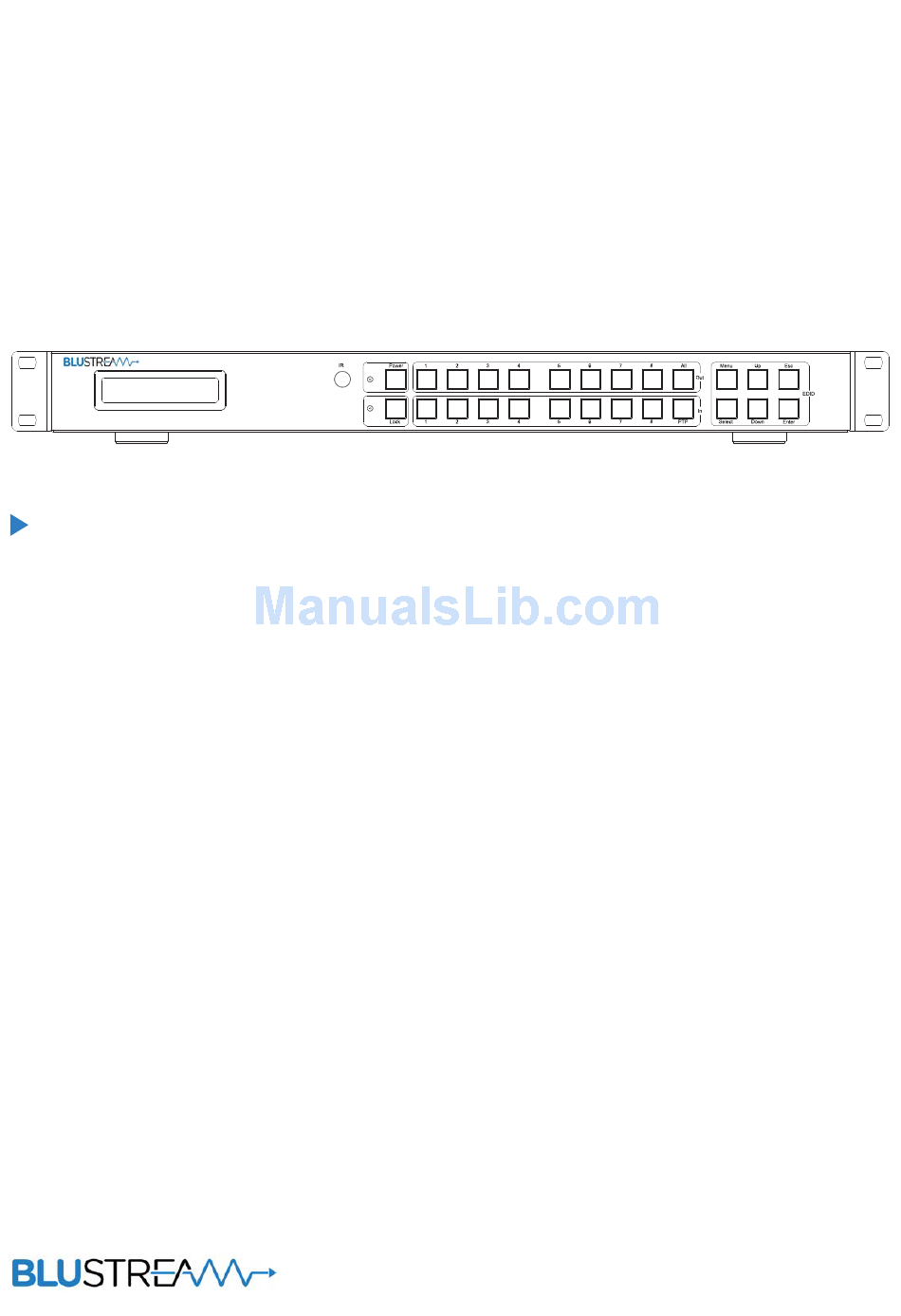

HMXL88 User ManUal Introduction The HMXL88 8x8 HDMI Matrix has six HDbaseT (HDBT) lite outputs and two HDMI only outputs enabling eight sources to be distributed to eight HDTV displays. Using HDBT lite chipsets six of the zone outputs can distribute 1080P video, HD audio and bi-directional IR up to a distance of 70m over Cat5e/Cat6 cable. -
Page 4: Edid Control
POH power port – Use included sensors located in the zones and LAN) 24V/6.25A DC adaptor to power the connected to Blustream HDBT remote receivers. RS232 port – Connect to this port receiver Rx (IR Rx “input” port). This for the control of the matrix from a Power port –... -
Page 5: Remote Control Descriptions
Example: Input 1 to output 1, input 2 to output 2, etc NOTE: EDID Set Up from remote control is not available for HMXL88 Specifications Baud Rate: 57600 bps Video Input Connectors:... -
Page 6: Application Diagram
HMXL88 User ManUal CONNECTION DIAGRAM ZONE 03 ZONE 04 ZONE 05 ZONE 06 ZONE 07 ZONE 08 SOURCE 01 SOURCE 02 70m max SOURCE 03 SOURCE 04 SOURCE 05 SOURCE 06 SOURCE 07 SOURCE 08 contact support@blustream.co.uk / support@blustream.com.au... -
Page 7: Rs232 And Telnet Commands
OUT 03 FR 03 OUTPUT 3 to INPUT 3 OUT 08 FR 08 OUTPUT 8 to INPUT 8 OUT 03 FR 04 OUTPUT 3 to INPUT 4 OUT 03 FR 05 OUTPUT 3 to INPUT 5 contact support@blustream.co.uk / support@blustream.com.au... - Page 8 / www.blustream.com.au...
