BluStream C44-KIT Quick Reference Manual

Introduction
FEATURES:
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Extends HDMI up to a distance of 70m 1080p over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232, and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• 3rd Party drivers available for all major home control brands
• 1U Design for 19" rack mount integration - mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
Contact:
support@blustream.com.au
C44-KIT
Quick Reference Guide

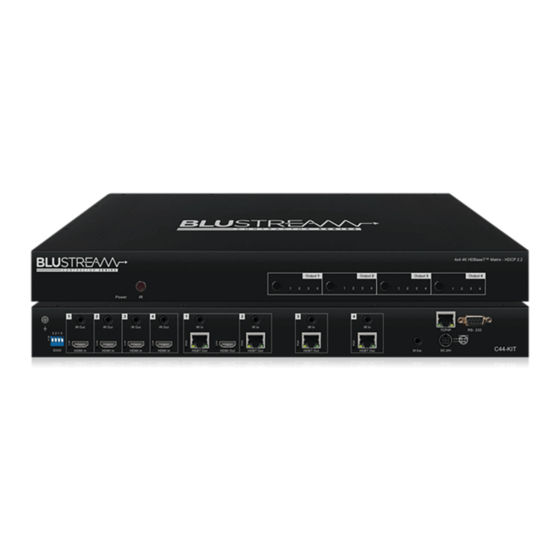

Our Contractor 4x4 HDBaseT™ Matrix offers unprecedented performance and
value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 matrix
package, delivering HDMI, bi-directional IR and PoC up to lengths of 70m over
a single CAT cable. The matrix also provides advanced features including
simultaneous HDBaseT™ / HDMI on output 1 and a web browser interface module
for control and configuration of the matrix. The C44-KIT is supplied with 4 x
HEX70B receivers.
|
support@blustream-us.com
|
support@blustream.co.uk
C44-KIT QUICK REFERENCE GUIDE
01
