C44-KIT
User Manual
RevA1_C44-KIT_User_Manual_190321

Advertisement

loading
Need help?

Need help?

Do you have a question about the C44-KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BluStream C44-KIT

Summary of Contents for BluStream C44-KIT

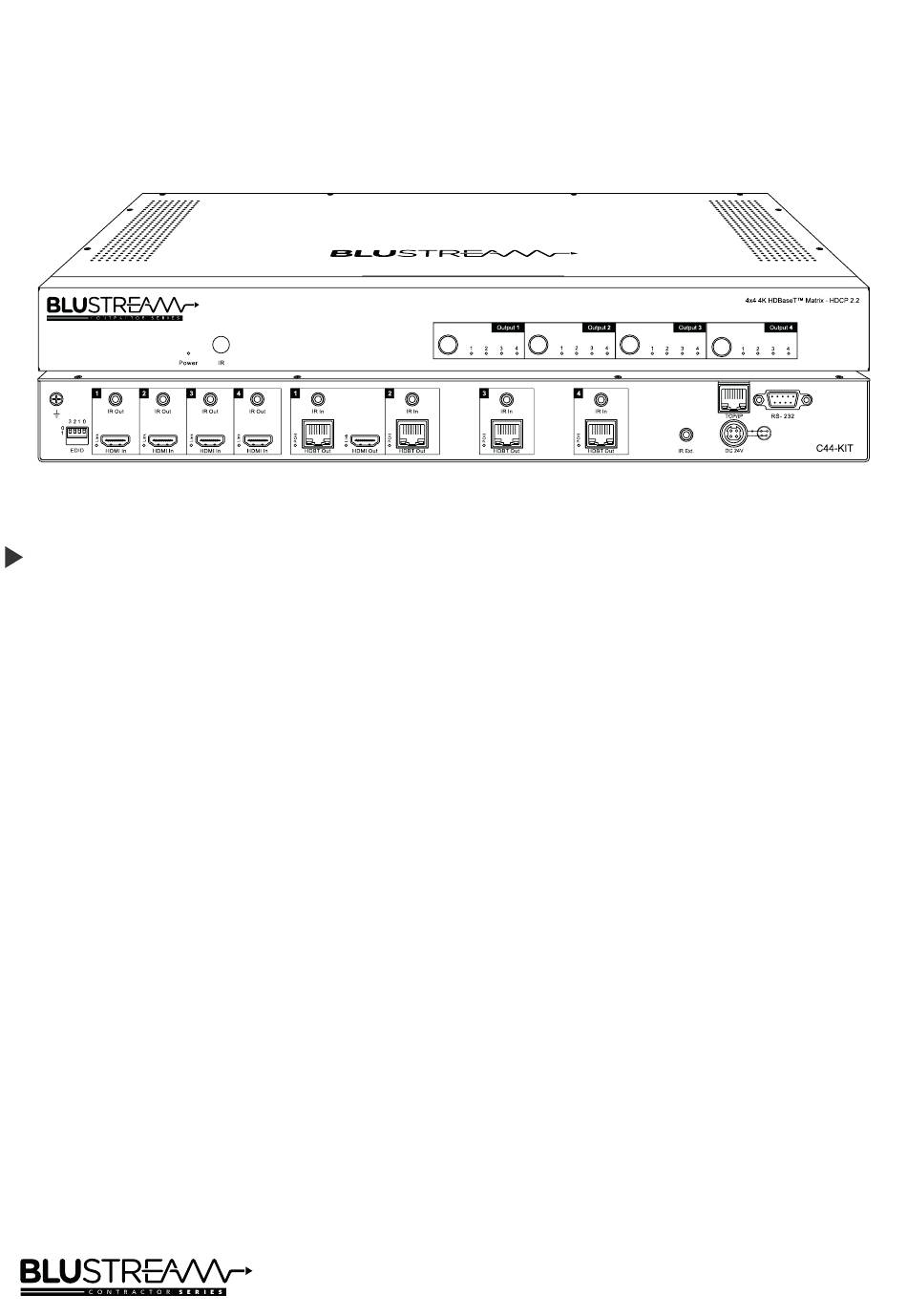

  • Page 1 C44-KIT User Manual RevA1_C44-KIT_User_Manual_190321...
  • Page 2 Web Browser Interface Do not substitute or use any other power supply other than the enclosed PC Configuration Software unit, or a Blustream approved replacement. Certifications Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the manufacturer’s warranty.

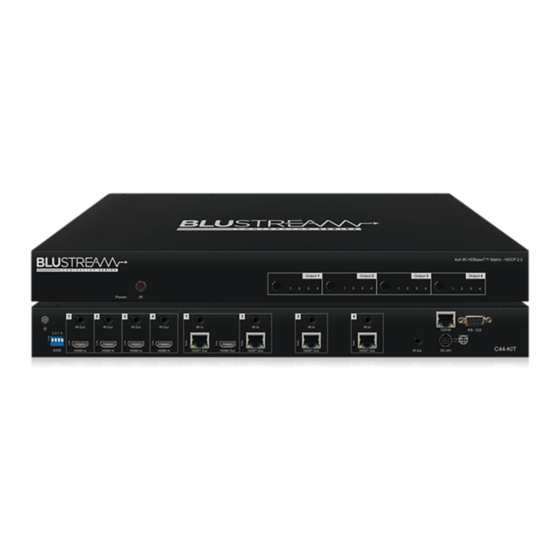

  • Page 3 Introduction Our Contractor 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including simultaneous HDBaseT™...
  • Page 4 C44-KIT USER MANUAL Panel Descriptions Front Panel Power LED Indicator IR Receiver Window HDMI Output Selection Buttons 1-4 - Press to scroll through source inputs per HDMI output Rear Panel IR Outputs 1 to 4 – 3.5mm stereo RS-232 Port - For control of the IR Extension Receiver Input –...
  • Page 5 IR Input (3.5mm stereo jack) for IR pass-through to the associated output HDBaseT Receiver* *Note - Blustream products use 5V IR hardware. For further details please see page 8 ‘Infrared Distribution’ Blustream C44-KIT Matrix is supplied with all required 5V IR emitters and receivers TCP/IP Baud Rate: 57600 bps The Blustream C44-KIT Matrix can be controlled via TCP/IP.
  • Page 6 C44-KIT USER MANUAL Matrix HDBaseT™ Receiver Options HEX70B-RX HDBaseT™ receiver with 2-way IR pass-through. Supports distances up to 40m @ 4K and 70m @ 1080p. HDCP 2.2 compliant. • HDBaseT™ Input • HDMI Output • IR Output 3.5mm mono jack •...
  • Page 7 When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable for your installations, especially when running over longer distances, in areas of high EMI, or for 4K signal distribution. It is advised that using any method of patch panel, wall plate or join in the CAT cable is avoided as these will result in HDBaseT™...
  • Page 8 The Blustream range of matrix products include multiple options for control and routing of IR. IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use optional Blustream IRCAB cable for IR conversion.
  • Page 9 (Example - Input 1 to output 1, input 2 to output 2 etc). EDID SET UP INPUT The C44-KIT Matrix provides a comprehensive range of EDID settings. Below are three examples of how to deploy the desired EDID setting when using the supplied remote.
  • Page 10 Using the EDID dip-switches located on the rear of the Matrix Using the Supplied Blustream Matrix IR Remote Control Using the C44 Web browser interface (For further details see ‘Blustream Web GUI Manual’) DIP ON ▼/OFF▲ SWITCHING POSITIONS EDID TYPE Global EDID Settings 1080p/2.0ch...
  • Page 11 C44-KIT USER MANUAL Link SOURCE 01 Link SOURCE 02 Link SOURCE 03 Link SOURCE 04 70m max Link 70m max Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 12 • 4 x Mounting Kits for HEX70B-RX • 1 x 24V/3.5A Power Supply • 1 x Remote Control • 5 x IRR Blustream 5V IR Receiver • 4 x IRE1 Blustream 5V IR Emitters • 1 x Quick Reference Guide Maintenance Clean this unit with a soft, dry cloth.
  • Page 13 USER MANUAL RS-232 and Telnet Commands The Blustream C44-KIT can be controlled via serial and TCP/IP. The following pages list all available serial commands for the C44-KIT matrix. Details of RS-232 pin assignment can be found on page 5. Commonly Used Serial Commands...
  • Page 14 HMXL44AB V2 USER MANUAL C44-KIT USER MANUAL RS232 and Telnet Commands (Continued) RS232 Command Description OUTxxFRyy Set OUTPUT:xx From INPUT:yy Copy EDID from output (yy) to input (xx) EDIDxxCPyy Both yy & xx can be set individually (01-08) or as ALL (00)
  • Page 15 C44-KIT USER MANUAL 4x4 Matrix IR Database 4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F...
  • Page 16 C44-KIT USER MANUAL 4x4 Matrix IR Database 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F...
  • Page 17 The Blustream C44-KIT matrix unit can be both controlled and configured using the in-built web-server. The C44-KIT matrix must be connected to an active network router / switch and it is advised that the matrix is given a static IP address. You can configure the network settings of the matrix using either the Web Browser Interface (Blustream matrix products are shipped with the network set to DHCP) or using the Blustream PC Configuration Software (downloadable from the Blustream Drivers &...
  • Page 18 C44-KIT USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 19 C44-KIT USER MANUAL Installer Notes –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 20 www.blustream.co.uk...
