Introduction
FEATURES:
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video
resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K
UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for all major control brands
• 1U design for 19" rack mount integration - mounting kit included
• Advanced EDID management and HDCP 2.2 compliant
*CSC feature compatible with RX70CS only
Contact:
support@blustream.com.au

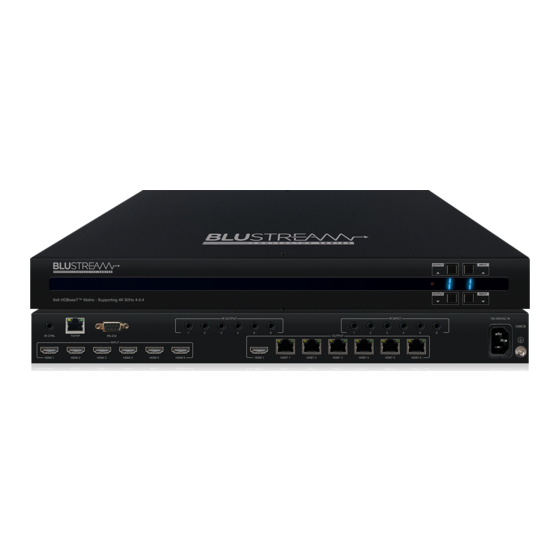

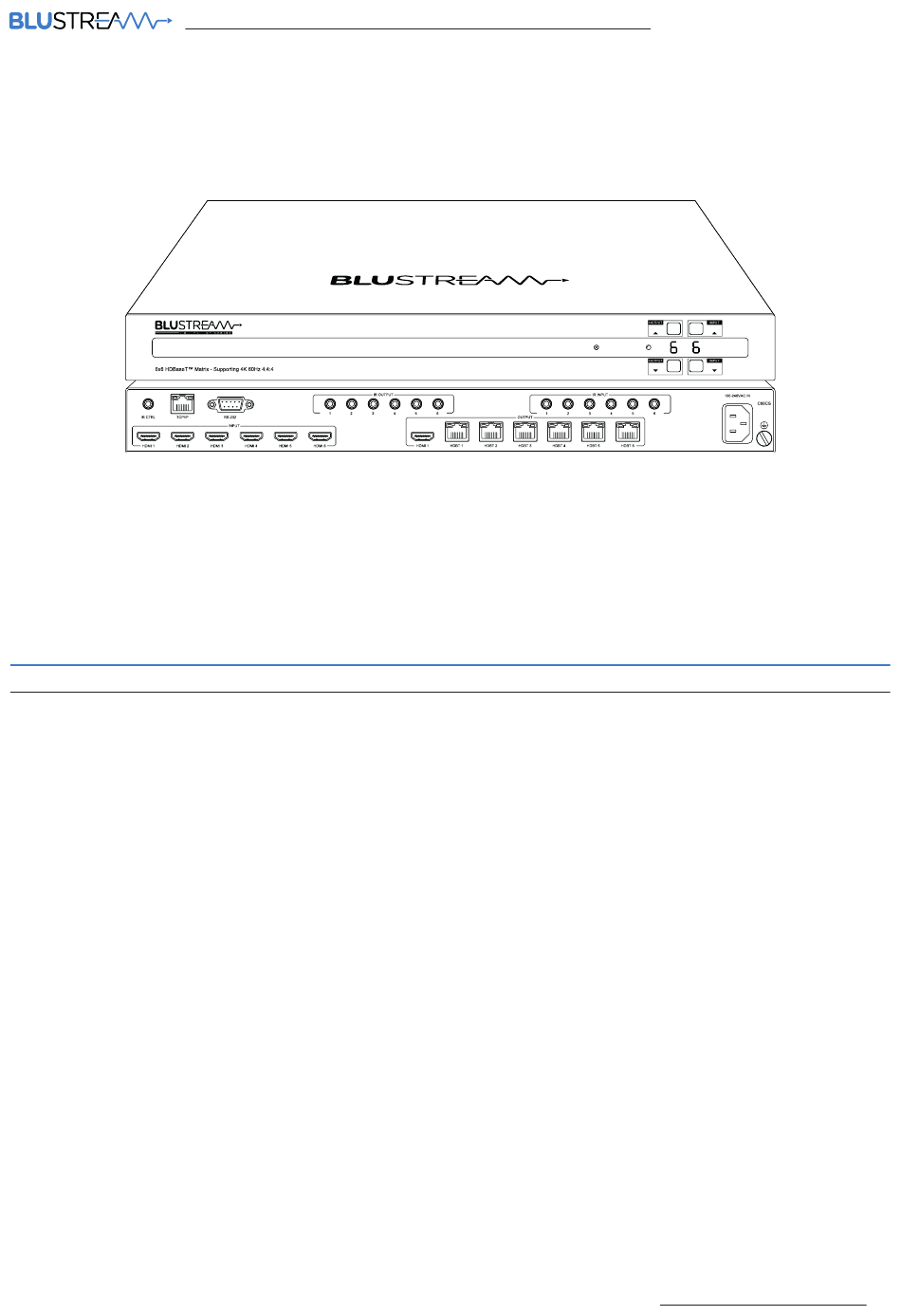

C66CS
Quick Reference Guide
Our Contractor 6x6 HDBaseT™ matrix offers unprecedented performance and
value for the custom installation market. The C66CS is a HDMI 2.0 4K 60Hz 4:4:4
HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, bi-directional IR,
and PoC up to lengths of 70m over a single CAT cable. The matrix also provides
advanced features including simultaneous HDBaseT™ / HDMI on output 1, video
down conversion on HDBaseT™ outputs and a web browser interface module for
control and configuration of the matrix.
|
support@blustream-us.com
|
support@blustream.co.uk
C66CS
QUICK REFERENCE GUIDE
