Introduction
FEATURES:
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video
resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K
UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for all major control brands
• 1U design for 19" rack mount integration - mounting kit included
• Advanced EDID management and HDCP 2.2 compliant
*CSC feature compatible with RX70CS only
Contact:
support@blustream.com.au
C88CS
Quick Reference Guide

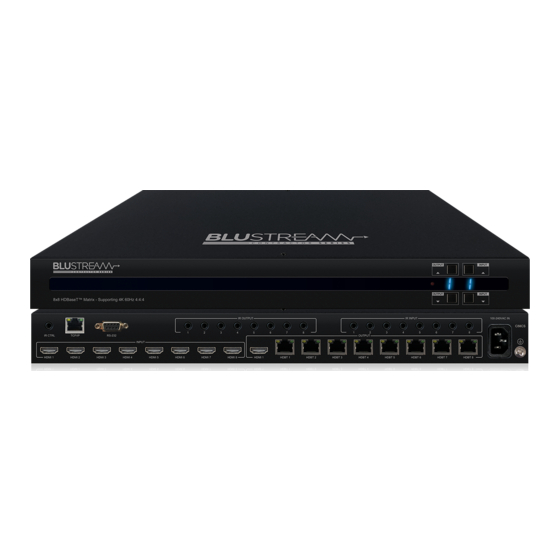

Our Contractor 8x8 HDBaseT™ matrix offers unprecedented performance and
value for the custom installation market. The C88CS is a HDMI 2.0 4K 60Hz 4:4:4
HDCP 2.2 matrix utilising CSC technology to deliver HDMI, bi-directional IR and
PoC up to lengths of 70m over a single CAT cable. The matrix also provides
advanced features including simultaneous HDBaseT™ / HDMI on output 1, video
down conversion on HDBaseT™ outputs and a web browser interface module for
control and configuration of the matrix.
|
support@blustream-us.com
|
support@blustream.co.uk
C88CS
QUICK REFERENCE GUIDE
01
Advertisement
Related Manuals for BluStream C88CS
Summary of Contents for BluStream C88CS
- Page 1 Introduction Our Contractor 8x8 HDBaseT™ matrix offers unprecedented performance and value for the custom installation market. The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix utilising CSC technology to deliver HDMI, bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including simultaneous HDBaseT™...
- Page 2 Web GUI Control The C88CS features an in-built Web GUI which can be used for control and configuration of the matrix. By default the matrix is set to DHCP, however if a DHCP server (eg: network router) is not installed the matrix IP address will revert to...
- Page 3 Stop Bit: Parity Bit: none For a complete RS-232 command list please see the C88CS User Manual - available to download from the Blustream website. EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display.
- Page 4 QUICK REFERENCE GUIDE Specifications Package Contents C88CS C88CS • 1 x C88CS • Video Input Connectors: 8 x HDMI Type A, 19-pin, female • 1 x Rack Mounting Kit • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x •...
