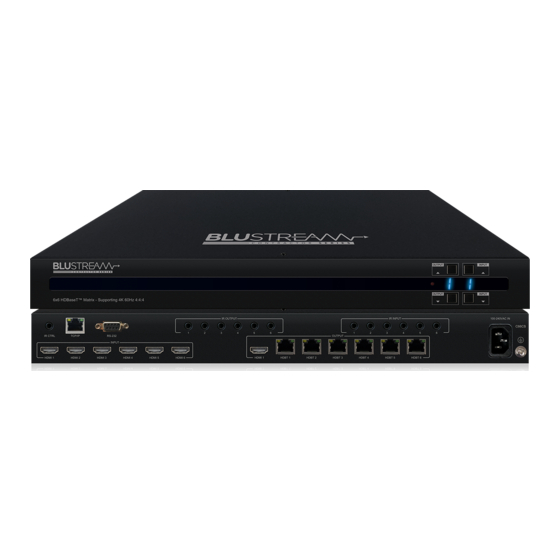

C66CS/C88CS
User Manual
RevA1_C66/88CS_User_Manual_210128

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C66CS and is the answer not in the manual?

Questions and answers

Related Manuals for BluStream C66CS

Summary of Contents for BluStream C66CS

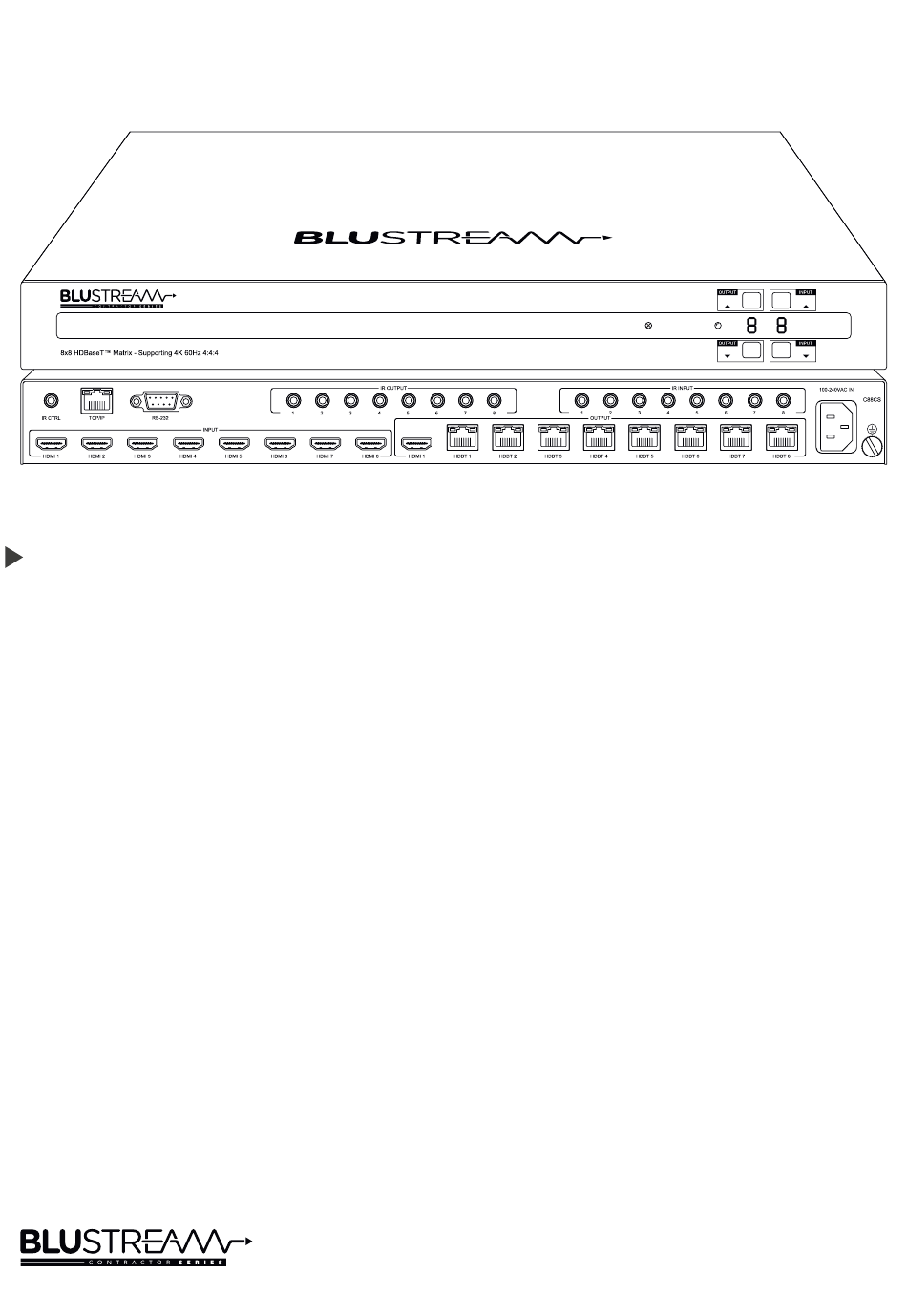

  • Page 1 C66CS/C88CS User Manual RevA1_C66/88CS_User_Manual_210128...

  • Page 2: Table Of Contents

    C66CS/C88CS USER MANUAL Contents Introduction Thank you for purchasing this product. Features For optimum performance and safety, please read these instructions care- Front Panel Description fully before connecting, operating or adjusting this product. Please keep this Rear Panel Description manual for future reference.

  • Page 3: Introduction

    • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR* • Features 6 x (C66CS) or 8 x (C88CS) HDMI inputs which can be independently routed to 6 x (C66CS) or 8 x (C88CS) HDBaseT™ outputs •...

  • Page 4: Front Panel Description

    IR Emitter Outputs - 3.5mm mono connector to connect to Blustream IR emitter. Used for local source control IR Receiver Inputs - 3.5mm stereo connector to connect to Blustream IR receiver. Used to extend IR from matrix to HDBaseT™ outputs 1-8...
  • Page 5 / integrator. To obtain resolutions lower than 1080p, a separate scaler device must be specified. To obtain CSC pass-through the Blustream C66CS / C88CS Matrix must be used with Blustream RX70CS HDBaseT™ Receivers. Using an alternative Blustream HDBaseT™ receiver will result in the CSC functionality not being available so the maximum output resolution will be 4K 60Hz 4:2:0 (10.2Gbps).

  • Page 6: Front Panel Control

    The Blustream range of products include Matrix control via IR. IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR conversion.

  • Page 7: Understanding The Hdbaset™ Status Led's

    When installing CAT cables it is advised that you use the best possible CAT cable quality. HDMI distribution products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable (or better) for installations, especially when running longer distances, in areas of high EMI, or for 4K signal distribution. It is advised that using any method of patch panel, wall plate, or join within the CAT cable is avoided as these can add degradation to the signal.

  • Page 8: Web Gui Control

    By default the matrix is set to DHCP, however if a DHCP server (eg: network router) is not installed the matrix IP address will revert to below details: Default IP Address is: 192.168.0.200 Default Username is: blustream Default Password is: 1234 The Web GUI supports multiple users along with multiple user permissions as follows: Guest Account - This account does not require a user to login.
  • Page 9 C66CS/C88CS USER MANUAL Login Page The Login Page allows a user or admin to login and access additional functionality. This page also shows you the current firmware version of both the Matrix and Web GUI. User Control Page The Control Page allows a user to change inputs for each zone (output). Simply select the square that corresponds with the input and zone you wish to change.
  • Page 10 C66CS/C88CS USER MANUAL Configuration Page - Input The Configuration Page allows for configuration settings for both inputs and outputs of the Matrix. The configuration menu for either Input or Output is located at the top of the window. Within the Input Page, enter a Name for each input as well as specify the required EDID from the drop down menu.
  • Page 11 C66CS/C88CS USER MANUAL CEC Page - Input The CEC Page allows for a pre-defined, or user-defined CEC command to be sent to any Input or Output connected to the Matrix. Choose between Input, Output and User-defined sections at the top of the window.
  • Page 12 C66CS/C88CS USER MANUAL CEC Page - User-defined On the CEC User-defined Page, you can enter custom CEC commands and have these transmitted out of either an input or output. Please Note: CEC is subject to the support of the sources and displays connected to the Matrix.
  • Page 13 C66CS/C88CS USER MANUAL RS-232 Page - HDBT The RS-232 HDBT Page allows you to remotely control devices connected via DB9 serial to remote HDBT Receivers independently. It is also possible to automate the display on, input select and display off process via RS-232 for each HDBT output, when the Matrix is turned on.
  • Page 14 Browse and select the appropriate firmware file from your computer (firmware available to download from the Blustream website). Clicking Submit will send the firmware file to the Matrix and begin the upgrade process. The upgrade process will take several minutes to complete and the Matrix will reboot once finished. Please do not disconnect your computer, or Matrix, from the network until the firmware has been delivered successfully.
  • Page 15 C66CS/C88CS USER MANUAL Admin Page The Admin Page allows the administrator to configure up to 8 users including a guest user. Individual users can adjust their own credentials via this page. The Admin, or Users who have been given Admin permissions, are able to allocate permissions to Users. These permissions include allowing or disabling access to pages contained within the Web GUI, as well as allowing or disabling access to each input or output of the Matrix.

  • Page 16: Remote Control Description

    C66CS/C88CS USER MANUAL Remote Control Description OUTPUT AND INPUT SELECTION Select the zone Output you wish to change the source on (numbers 1-8 correspond to the zone outputs 1-8). Select the source Input you wish to change the selected zone to...
  • Page 17 C66CS/C88CS USER MANUAL IR Commands COMMAND 0000 0069 0000 002a 0150 00a8 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 INPUT 4 0x4a 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015...

  • Page 18: Specifications

    NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents C88CS C66CS • 1 x C88CS • 1 x C66CS • 1 x Rack Mounting Kit • 1 x Rack Mounting Kit • 1 x Remote Control • 1 x Remote Control •...
  • Page 19 \r or 0D (in hex) • Spaces – Blustream commands do not require space between commands unless specified. There may be some programs that require spacing in order to work. - How the string should look is as follows OUT01ON - How the string may look if spaces are required: OUT{Space}01{Space}ON •...
  • Page 20 C66CS/C88CS USER MANUAL RS-232 Configuration and Telnet Commands COMMAND ACTION COMMAND ACTION Disable RS232 Remote-control Mode On HDBT RS232OUT Print help information Output xx To Allow Matrix To Be Controlled From xx OFF Remote PC When detecting a triggering signal, automatically...
  • Page 21 C66CS/C88CS USER MANUAL RS-232 Configuration and Telnet Commands COMMAND ACTION COMMAND ACTION Save External EDID Into Slot zz IN xx CECOK Confirm operation (Enter) on input xx EDID SAVE zz zz = 19 User EDID 1 IN xx CECUP Up on input xx...

  • Page 22: Web-Gui Firmware Update

    Web GUI Firmware Update The Web GUI of the C66CS/C88CS Matrix is used to configure and control the product through a web portal. The C66CS/C88CS can be accessed on any internet connected device including: tablets, smart phones and laptops that are sat on the same network as the Matrix.
  • Page 23 C66CS/C88CS USER MANUAL 4) Click 'Choose File' and select the Web GUI (MediaTek) firmware file downloaded from the Blustream website. This will be a .bin type file: 5) Press 'Apply' to begin the firmware update process. The update process will take up to 1 minute to complete. Do not refresh or navigate away from this page until the update process has completed.
  • Page 24 2) Once the main product Web GUI has been accessed, click on the tab at the top of the page marked ‘Upgrade Firmware’: 3) Select ‘Browse’ 4) Press ‘Choose File’ and select the main (MCU) firmware file downloaded from the Blustream website. This will be a .app type file. www.blustream.com.au www.blustream-us.com...
  • Page 25 C66CS/C88CS USER MANUAL 5) Press 'Submit' to begin the firmware update process: The update process will take up to 1 minute and once complete the message 'Success' will be shown. Do not refresh or navigate away from this page until the update process has completed.

  • Page 26: Certifications

    C66CS/C88CS USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 27: Schematic (C88Cs)

    C66CS/C88CS USER MANUAL Schematic Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 28 C66CS/C88CS USER MANUAL Notes –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
  • Page 29 C66CS/C88CS USER MANUAL –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 30 www.blustream.co.uk...
