4x4 4K HDMI 2.0 Matrix
3
2
1
0
1
EDID
Introduction
FEATURES:
• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
• Supports HDMI2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz
4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on
remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel, IR, RS-232, TCP/IP and Web GUI
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• 3rd party drivers available for major control brands
• Advanced EDID management
• HDCP2.2 compliant
• 1U Design for 19" rack mount integration - mounting kit included
Contact:
support@blustream.com.au
CMX44CS
Quick Reference Guide
INPUT
IR OUT
L/R
IR OUT
L/R
IR OUT
L/R
0
HDMI 1
HDMI 2
HDMI 3

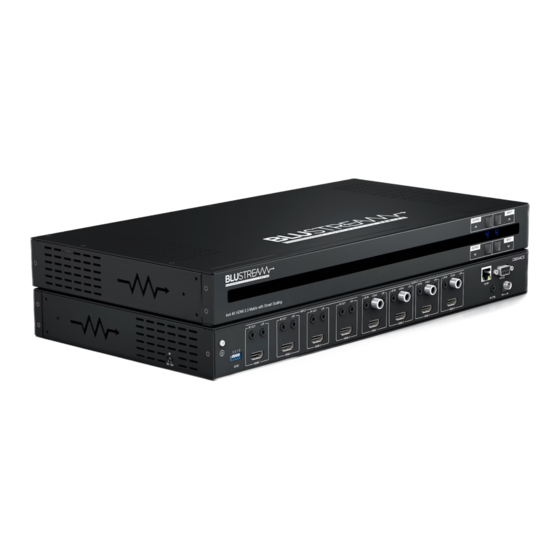

Our Contractor CMX44CS 4K HDMI Matrix offers unprecedented performance and
value for the custom installation market. The CMX44CS supports HDMI2.0 with
HDCP2.2, allowing distribution of four HDMI sources to four displays. This enables
all sources to be viewed as required within a matrix configuration. The unit
transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4 with automatic
video down conversion. The 4-way matrix also includes audio breakout and
advanced EDID management.
|
support@blustream-us.com
OUTPUT
IR OUT
L/R
IR IN
COAX
L/R
IR IN
COAX
L/R
IR IN
COAX
HDMI 4
HDMI 1
HDMI 2
HDMI 3
|
support@blustream.co.uk
CMX44CS
OUTPUT
OUTPUT
L/R
IR IN
COAX
L/R
RS-232
TCP/IP
IR CTRL
12V
HDMI 4
QUICK REFERENCE GUIDE
INPUT
INPUT
CMX44CS
2A
01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BluStream Contractor CMX44CS
Summary of Contents for BluStream Contractor CMX44CS
- Page 1 HDMI 3 HDMI 4 Introduction Our Contractor CMX44CS 4K HDMI Matrix offers unprecedented performance and value for the custom installation market. The CMX44CS supports HDMI2.0 with HDCP2.2, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4 with automatic video down conversion.
- Page 2 HDMI Inputs - Connect to source devices HDMI Outputs - Connect to display devices IR Control Input - 3.5mm stereo connector to connect to Blustream IR receiver for IR control of the matrix Power Port - Use included 12V/2A DC power adaptor Web-GUI Control The CMX44CS features an in-built web-GUI which can be used for control and configuration of the matrix.
- Page 3 Parity Bit: 57600 none For a complete RS-232 command list please see the CMX44CS User Manual - available to download from the Blustream website. EDID Control EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source to find out what audio and video resolutions are supported by the display.
- Page 4 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
