BluStream CMX44AB Quick Reference Manual

CMX44AB
3 2 1 0
0
1
EDID
HDMI 1
CMX44AB
3 2 1 0
0
1
EDID
HDMI 1
Introduction

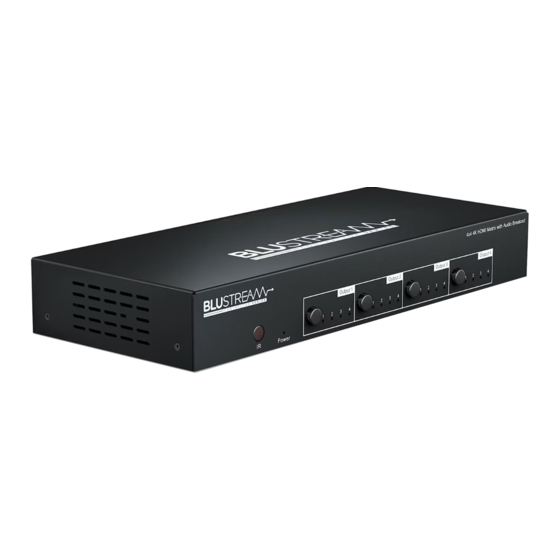

Our Contractor CMX44AB 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing
distribution of four HDMI sources to four displays. This enables all sources to be viewed seamlessly as
required within a matrix configuration. The unit transmits all HDMI resolutions up to and including HDR and
4K 60Hz 4:4:4. The 4-Way matrix also includes audio breakout and EDID management.
Key Features:
• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
• Supports 4K UHD video including HDR (up to 4K @60Hz 4:4:4)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and
DTS-HD Master Audio transmission
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel, IR and RS-232
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP 2.2 compliant
01
CMX44AB
IR Input IR Output
Input
Quick Reference Guide
HDMI 2 HDMI 3 HDMI 4
1 2
IR Power
IR Input IR Output
Input
HDMI 2 HDMI 3 HDMI 4
1 2
IR Power
Output 1 Output 2 Output 3
Coaxial L/R Coaxial L/R Coaxial
Output
HDMI 1 HDMI 2 HDMI 3
3 4 1 2 3 4
Output 1 Output 2 Output 3
Coaxial L/R Coaxial L/R Coaxial
Output
HDMI 1 HDMI 2 HDMI 3
3 4 1 2 3 4
CMX44AB QUICK REFERENCE GUIDE
Output 4
L/R Coaxial L/R
IR Ext .
HDMI 4
1 2 3 4 1 2 3
Output 4
L/R Coaxial L/R
IR Ext .
HDMI 4
1 2 3 4 1 2 3
DC 12V
4x4 4K HDMI 2.0 Matrix
4
DC 12V
4x4 4K HDMI 2.0 Matrix
4
www.blustream.co.uk
