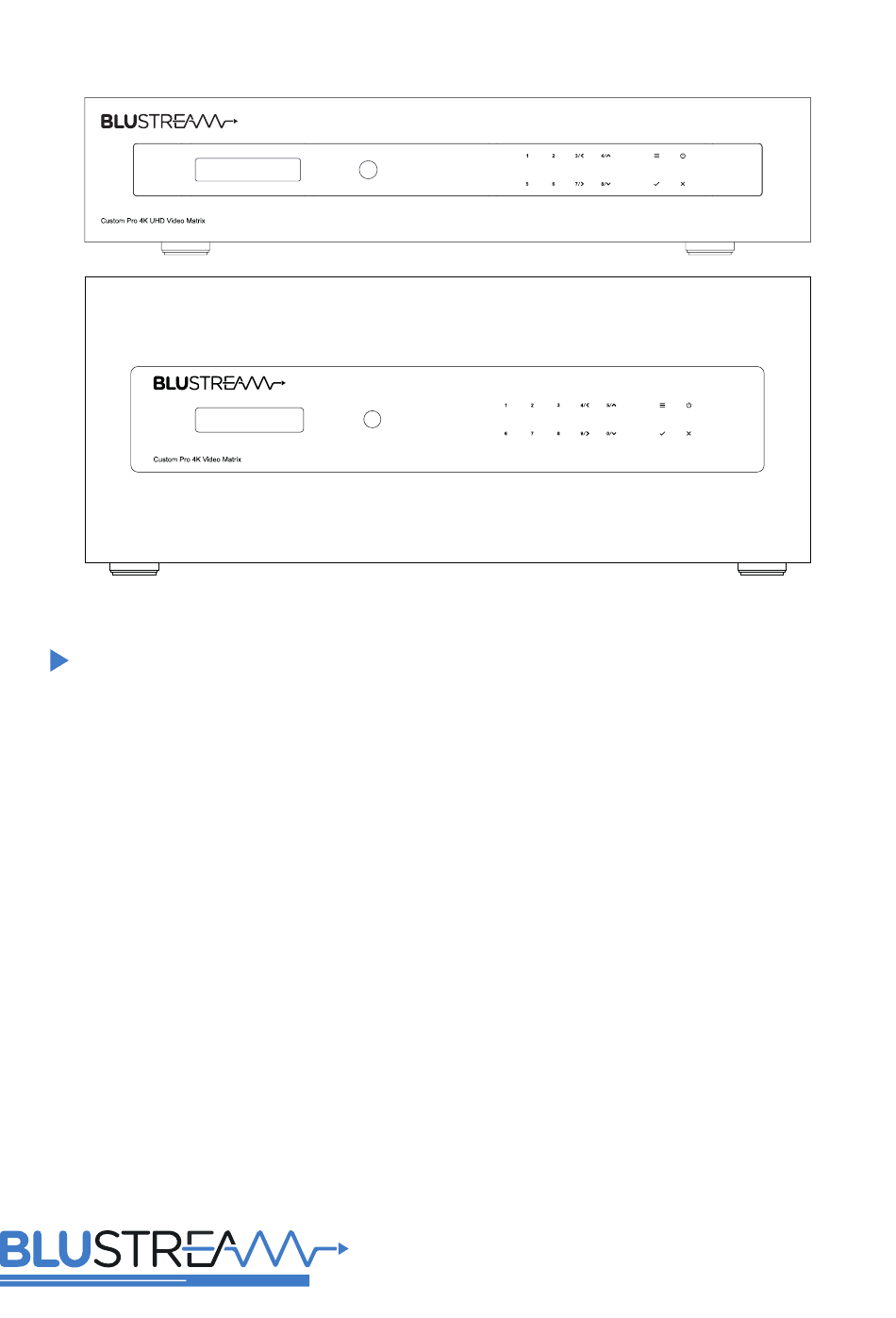

  • Page 1 Custom Pro Matrix User Manual RevA4_Custom_Pro_Matrix_User_Manual_180620 C U S T O M P R O...
  • Page 2 26 - 27 Do not substitute or use any other power supply other than the enclosed RS-232 and Telnet Commands 38 - 30 unit, or a Blustream approved replacement. Certifications Do not disassemble either the Transmitter or Receiver units for Notes any reason.
  • Page 3 USER MANUAL Introduction The Blustream Custom Pro matrix series achieves new levels of performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific project. The Custom Pro matrix chassis’ have been specifically designed to operate in challenging AV environments. The robust housing and interlocking board configuration make both installation and maintenance a seamless experience.
  • Page 4 Audio output card slot - insert optional audio card for card (optional) zone / output audio breakout Power port – use supplied 24V 8A DC adaptor to IR control card slot - insert optional IR control card for power matrix 2-way & Global IR control www.blustream.co.uk www.blustream.com.au...
  • Page 5 HDBaseT™ receivers video output cards (output card slot 1 mandatory; 2-4 optional) Audio output card slots - insert optional audio cards for zone / output audio breakout Power port – use supplied IEC cable to power matrix contact support@blustream.co.uk support@blustream.com.au...
  • Page 6 HDMI In TCP/IP The Blustream matrix can be fully controlled via TCP/IP. For a full list of protocols please see ‘RS-232 & Telnet Commands’ located at the rear of this manual. A ‘straight-through’ RJ45 patch lead should be used. RS-232 The Blustream matrix can be controlled via the 9-pin serial connection.
  • Page 7 Password: 1234 For further details and instructions on using the matrix web-GUI, please download the Blustream ‘Web GUI & App Interface Guide’ from the Blustream website. Custom Pro Matrix Input Boards PRO-IN4HAB - 4-Way HDMI 2.0 Input Board with Source Audio Breakout (4K 60Hz 4:4:4 - 18Gbps) •...
  • Page 8 HEX70CS-TX can be used where CAT cable distance is less than 40m at 4K 60Hz 4:4:4, or 70m at 1080p Please Note: PoC (Power over Cable) is not supplied from the HDBaseT™ input ports. HEX70CS-TX or HEX100CS-TX units must be powered locally using a Blustream 12V 2A power supply (part code: PS122) which must be purchased separately.
  • Page 9 Supports 70m at 4K 60Hz 4:4:4, or 100m at 1080p when used with the HEX100CS-RX • HEX70CS-RX can be used where CAT cable distance is less than 40m at 4K 60Hz 4:4:4, or 70m at 1080p • Supports PoC (Power over Cable) to compatible Blustream HDBaseT™ receivers HDMI In HDMI In OUT4HTCS...
  • Page 10 Supports 70m at 4K 60Hz 4:4:4, or 100m at 1080p when used with the HEX100CS-RX • HEX70CS-RX can be used where CAT cable distance is less than 40m at 4K 60Hz 4:4:4, or 70m at 1080p • Supports PoC (Power over Cable) to compatible Blustream HDBaseT™ receivers OUT4TCS HDBaseT™ PoC Outputs (RJ45) PRO-OUT2TCS - 2-Way HDBaseT™...
  • Page 11 PoC Outputs (RJ45) Automatic Smart Scaling Functionality in CSC Blustream HDBaseT™ CSC output boards have an in-built automatic smart scaling feature allowing for a 4K video signal to be independently downscaled per individual HDBaseT™ output connection. The output card will read the EDID of the display attached to the HDBaseT™...
  • Page 12 8 x simultaneous analogue L/R, 3.5mm stereo jack Please Note: when using the analogue audio outputs, the audio input must be 2ch PCM audio as the Custom Pro matrix does not down-mix multichannel audio signals. Analogue fixed 2ch output 3.5mm stereo jack Coaxial digital output www.blustream.co.uk www.blustream.com.au...
  • Page 13 Location/s - bi-directional IR control board/s only (supplied in the 16x16 chassis) • Location/s - video output board/s only Once all Custom Pro matrix modular boards are installed, connect the external power supply and power the matrix. contact support@blustream.co.uk support@blustream.com.au...
  • Page 14 PRO-8RS232 board. Using Other Blustream HDBaseT™ Receivers or Transmitters Whilst HDBaseT™ as a technology is interoperable, and Blustream have designed their HDBaseT™ equipment to be interoperable, using other HDBaseT™ receivers or transmitters will likely limit the performance of the system. The HDBaseT™...
  • Page 15 3. F/W Version of the matrix. Please Note: matrix firmware cannot be upgraded from the front panel of the matrix. Firmware upgrading is carried out using firmware upgrade software. Please contact a member of the Blustream Technical Support Team for more information.
  • Page 16 Configuration of matrix input EDID settings can be achieved in one of four ways: 1. Using the matrix web-GUI - see page 7 for details, or download the ‘Blustream Web Browser Interface Guide’ from the Blustream website for more in depth instructions. Recommended - when setting EDID for multiple inputs.
  • Page 17 The LED’s will not indicate a termination, bandwidth, interference or cable length issue on a CAT cable run. Blustream would always recommend qualifying / verifying / certifying a CAT cable run for suitability prior to the installation of HDBaseT™...
  • Page 18 Please Note: the Coax digital and L/R analogue audio outputs are concurrent and do not down-mix multichannel audio signals. The Coax digital output can handle a digital audio stream up to 7.1ch. The Custom Pro matrix solution does not support ARC (Audio Return Channel) through any of the input, output, or audio board configurations. www.blustream.co.uk www.blustream.com.au...
  • Page 19 Infrared (IR) Distribution The Blustream Custom Pro matrix products include multiple options for control and routing of IR when using the IR control boards. IR matricing can be achieved (routed IR from zone to any matrix output, or matrix input to any receiver output), using TCP/IP or serial commands to select the route an IR signal can be sent from / to.
  • Page 20 USER MANUAL Infrared (IR) Control The Blustream Custom Pro matrix units are supplied with an IR Remote Control for source selection and general setup. As well as controlling matrix solutions using the original Blustream remote, Blustream products can also be controlled using the original Infrared NEC codes documented towards the rear of this manual.
  • Page 21 CUSTOM PRO MATRIX USER MANUAL contact support@blustream.co.uk support@blustream.com.au...
  • Page 22 CUSTOM PRO MATRIX USER MANUAL www.blustream.co.uk www.blustream.com.au...
  • Page 23 17 x IR 3.5mm - 3.5mm Stereo to Mono, 12V to 5V Control Cable (IRCAB) • 1 x Quick Reference Guide Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. contact support@blustream.co.uk support@blustream.com.au...
  • Page 24 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689 www.blustream.co.uk www.blustream.com.au...
  • Page 25 0016 003F 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689 contact support@blustream.co.uk support@blustream.com.au...
  • Page 26 0016 0042 0016 0042 0016 0016 0016 0016 0016 0042 0016 0042 0016 0016 0016 0042 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0042 0016 0016 0016 0042 0016 0042 0016 0042 0016 0042 0016 0042 0016 061a www.blustream.co.uk www.blustream.com.au...
  • Page 27 0016 0042 0016 0042 0016 0016 0016 0016 0016 0042 0016 0016 0016 0042 0016 0016 0016 0016 0016 0042 0016 0016 0016 0042 0016 0016 0016 0042 0016 0016 0016 0042 0016 0042 0016 0016 0016 0042 0016 0016 0016 0042 0016 061a contact support@blustream.co.uk support@blustream.com.au...
  • Page 28 CUSTOM PRO MATRIX USER MANUAL RS-232 and Telnet Commands The Blustream Custom Pro matrix can be controlled via serial and/or TCP/IP. The following pages list all available commands for the Custom Pro matrix chassis. Details of RS-232 pin assignment below: CUSTOM PRO...
  • Page 29 Save current output connection to preset:pp PRESET pp SAVE config Input port:xx insert stereo to DVI signal only AUD RX xx AUTO xx==[00]: All Input Port, [01...08]: Input Port PRESET pp APPLY Apply preset:pp config to output connection contact support@blustream.co.uk support@blustream.com.au...
  • Page 30 Global all IR Out signal goes to which IR input:xx xx=[17..32]: Local IR input xx=[33..48]: Remote HDBT receiver IR input MXIR GO (+-)xx xx=[49]: Global all IR in +: Add xx to current setting -: Remove xx from current setting www.blustream.co.uk www.blustream.com.au...
  • Page 31 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. contact support@blustream.co.uk support@blustream.com.au...
  • Page 32 CUSTOM PRO MATRIX USER MANUAL Notes –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– www.blustream.co.uk www.blustream.com.au...
