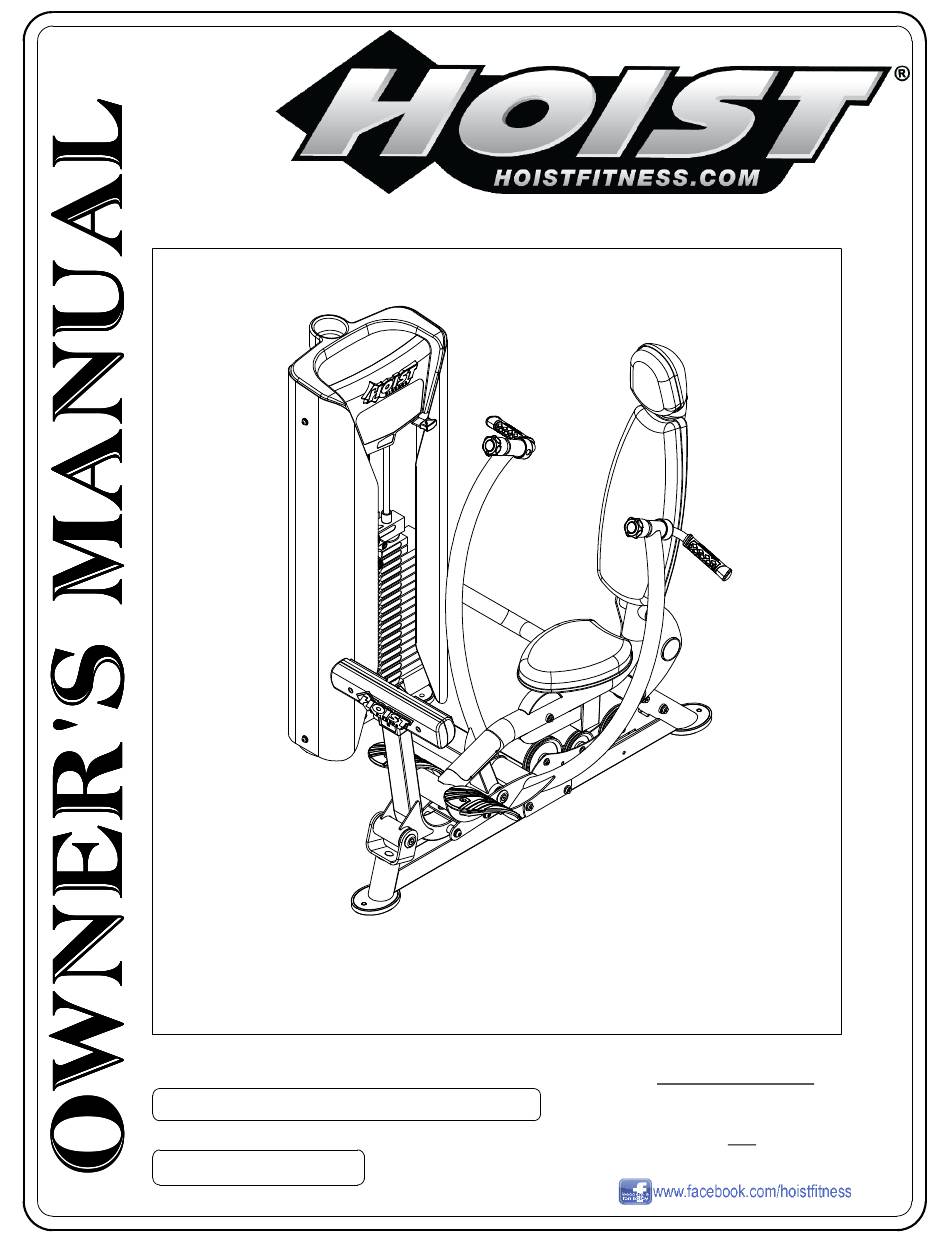

- Page 1 RS-2301 CHEST PRESS **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR USING MINIMUM 4 - 1/2" LONG BOLTS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts...
-
Page 2: Table Of Contents
OWNER'S MANUAL OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............PAGE 01 RS-2301 ASSEMBLY... -
Page 3: Instructions
Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Ratchet Wrench 1/2", 9/16" and 3/4" Sockets Adjustable Wrench Rubber Mallet Tape Measure Level SAE Hex Key Wrench Set Two People RS-2301 ASSEMBLY PAGE 02... - Page 4 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 RS-2301 ASSEMBLY...
-
Page 5: Frame Assembly
OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY ALTERNATE WEIGHT CAGE POSITION ALTERNATE POSITION THE ROC-IT WEIGHT CAGE-NG IS DESIGNED TO BE INSTALLED ON EITHER THE LEFT OR RIGHT SIDE OF THE RS-2301 IN ORDER TO ACCOMMODATE THE USER. RS-2301 ASSEMBLY PAGE 04... - Page 6 ** DELRIN SPACERS INCLUDED WITH TOP WEIGHT ASSEMBLY ** IF YOU PURCHASED AN OPTIONAL ADD ON WEIGHT SYSTEM, ENSURE THE USE OF RS-CAGE-NG-OPT1 NOTE: RETURN TO RS-CAGE-NG MANUAL TO FINISH WEIGHT CAGE ASSEMBLY 188 1/2" 4788 PAGE 05 RS-2301 ASSEMBLY...
- Page 7 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-2301 ASSEMBLY PAGE 06...
- Page 8 OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. LIGHT CABLING PROFILE FROM WEIGHT STACK NOTE: BE SURE CABLE RUNS BETWEEN THE PULLEYS AND THE GUARD PINS, AS SHOWN. PAGE 07 RS-2301 ASSEMBLY...
- Page 9 OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. HEAVY CABLING PROFILE FROM WEIGHT STACK NOTE: BE SURE CABLE RUNS BETWEEN THE PULLEYS AND THE GUARD PINS, AS SHOWN. RS-2301 ASSEMBLY PAGE 08...
- Page 10 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 09 RS-2301 ASSEMBLY...
- Page 11 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-2301 ASSEMBLY PAGE 10...
- Page 12 REPEAT PROCEDURE FOR - SOME PARTS MAY HAVE BEEN ALL OTHER INSTANCES (28). REMOVED FOR CLARITY. ALIGN TO ENSURE TAB IS SECURE IN NOTCH ALIGN SHAFT (22) WITH ROTATION LOCK (28) AS SHOWN STEP 1 STEP 2 PAGE 11 RS-2301 ASSEMBLY...
- Page 13 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. STEP 1 STEP 2 RS-2301 ASSEMBLY PAGE 12...
- Page 14 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 13 RS-2301 ASSEMBLY...
- Page 15 BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT. CABLE BOLT WARNING - CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8" WITH JAM NUT TIGHTENED JAM NUT SECURELY TO ENSURE PROPER CONNECTION. PROPERLY INSTALLED VIEW RS-2301 ASSEMBLY PAGE 14...
- Page 16 BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT. CABLE BOLT WARNING - CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8" WITH JAM NUT TIGHTENED JAM NUT SECURELY TO ENSURE PROPER CONNECTION. PROPERLY INSTALLED VIEW PAGE 15 RS-2301 ASSEMBLY...
- Page 17 NOTE: - WRENCH TIGHTEN HARDWARE. - REPEAT ASSEMBLY FOR OPPOSITE SIDE (10) & (35). - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: BE SURE ORIENTATION OF PULL PIN IS AS SHOWN. PROPERLY INSTALLED VIEW RS-2301 ASSEMBLY PAGE 16...
- Page 18 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. PAGE 17 RS-2301 ASSEMBLY...
- Page 19 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-2301 ASSEMBLY PAGE 18...
- Page 20 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. PAGE 19 RS-2301 ASSEMBLY...
- Page 21 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. RS-2301 ASSEMBLY PAGE 20...
- Page 22 PLEASE SEE RS-CAGE-NG MANUAL FOR FINAL ASSEMBLY. *IMPORTANT* NOW THAT THE RS-2301 IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. IF NOT, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
-
Page 23: Pre-Assembly
OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL PRE-ASSEMBLY NOTE: - REPEAT ASSEMBLY FOR OPPOSITE SIDE (19). RS-2301 ASSEMBLY PAGE 22... -
Page 24: Decal Placement
OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL DECAL PLACEMENT NOTE: - ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 23 RS-2301 ASSEMBLY... -
Page 25: Decal Reference
OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL DECAL REFERENCE 021-0013332 021-0003503 021-0003512 021-0003093 021-0004197 021-0004207 021-0004208 021-0004032 SERIAL # DECAL RS-2301 ASSEMBLY PAGE 24... - Page 26 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL DECAL REFERENCE 021-0004241 021-0018022 PAGE 25 RS-2301 ASSEMBLY...
- Page 27 OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 26 RS-2301 ASSEMBLY...
-
Page 28: Part List
PAD MOUNT BRACKET 026-01P7199 7" STAINLESS STEEL SCUFF GUARD W/ RIVETS 026-01P7210 ROTATION LOCK 026-01PL0125 E-Z GLIDE PLASTIC SLEEVE 026-01PL2122 OVAL-SHAPED RUBBER FOOT 026-01PL2148 PLASTIC FOOT ASSIST - 'HOIST' 026-01PL2200 PINETREE PLUG 026-01PL2687 KNOB CAP 026-01PL2949 TURN KNOB PAGE 27 RS-2301 ASSEMBLY... - Page 29 011-0701049 1/2"-13UNC X 1.50" BHCS (Ni) 011-0708002 M5 X 20mm FHB (Ni) 011-0702020 3/8"-16UNC X 1.00" FHCS (Ni) W/NYLON PATCH 011-0116145 3/8"-16UNC X 1.75" LOW HEAD SHCS (Ni) 011-0116148 3/8"-16UNC X 2.50" LOW HEAD SHCS (Ni) RS-2301 ASSEMBLY PAGE 28...
- Page 30 ADJUSTER HANDLE DECAL, LEFT 021-0004208 ADJUSTER HANDLE DECAL, RIGHT 021-0004241 WEIGHT STACK #26: 335LB WEIGHT STACK DECALS 021-0013332 RS-2301 PLACARD 021-0018022 HOIST EMBLEM + 2 SIDED TAPE SERIAL # DECAL DECAL HOIST SERIAL # 1.63" X 2.63" RS-CAGE-NG RS WEIGHT CAGE NG...
-
Page 31: Abbreviations
HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw RS-2301 ASSEMBLY PAGE 30... -
Page 32: Bolt Sizing Chart
RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 47-65 ft-lbs 5-7 ft-lbs 19-26 ft-lbs 3/8" SHSS 5/16" SHSS 1/4" SHSS RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 17-22 ft-lbs 8-10 ft-lbs 3-4 ft-lbs PAGE 31 RS-2301 ASSEMBLY... -
Page 33: Washer Sizing Chart
CURVED WASHER LOCK WASHER LOCK WASHER LOCK WASHER SPACER 026-01M0238 016-0009003 013-0003002 2" ALUMINUM 1" SHIM WASHER 3/8" FENDER WASHER FLATHEAD CAP 013-0003004 026-01PL151 1 1/16" PLASTIC 1 1/16" FENDER WASHER FENDER WASHER 014-0018002 1" LONG SPACER RS-2301 ASSEMBLY PAGE 32... - Page 34 026-01M0762 026-01M0768 .44" LONG HEAVY 1 1/4" LONG HEAVY 1 1/2" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0239 026-01M0240 1 5/8" ALUMINUM 1 3/8" ALUMINUM FLATHEAD CAP FLATHEAD CAP 026-01M0600 .625" LONG FLANGED SPACER PAGE 33 RS-2301 ASSEMBLY...
-
Page 35: Maintenance Schedule
Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. Never use ammonia, acid-based, or petroleum-based solvents on any portion of the machine as it may damage the finish. RS-2301 ASSEMBLY PAGE 34... -
Page 36: General Maintenance Information
OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. -
Page 37: Weight Training Tips
Now that you have your RS-2301, it is only natural that you want to get started immediately. First, determine a set of realistic goals and objectives for yourself. By deciding on an exercise plan that is right for you prior to starting, you will contribute significantly to your success. -
Page 38: Exercise Log
OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL PAGE 37 RS-2301 ASSEMBLY... -
Page 39: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
