TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE
EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
MACHINE CODE
C03
RS-1101-A

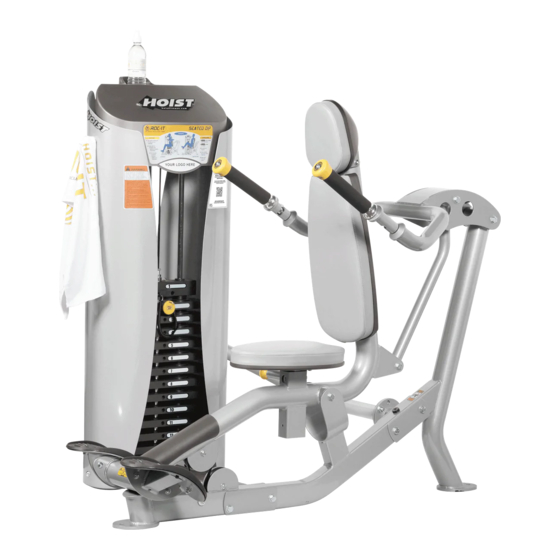

SEATED DIP
**WARNING!**
INJURY OR DEATH.
Customer Service
(800) 548-5438
(858) 578-7676
Fax
(858) 578-9558
Advertisement
Table of Contents
Related Manuals for Hoist Fitness ROC-IT RS-1101-A
Summary of Contents for Hoist Fitness ROC-IT RS-1101-A

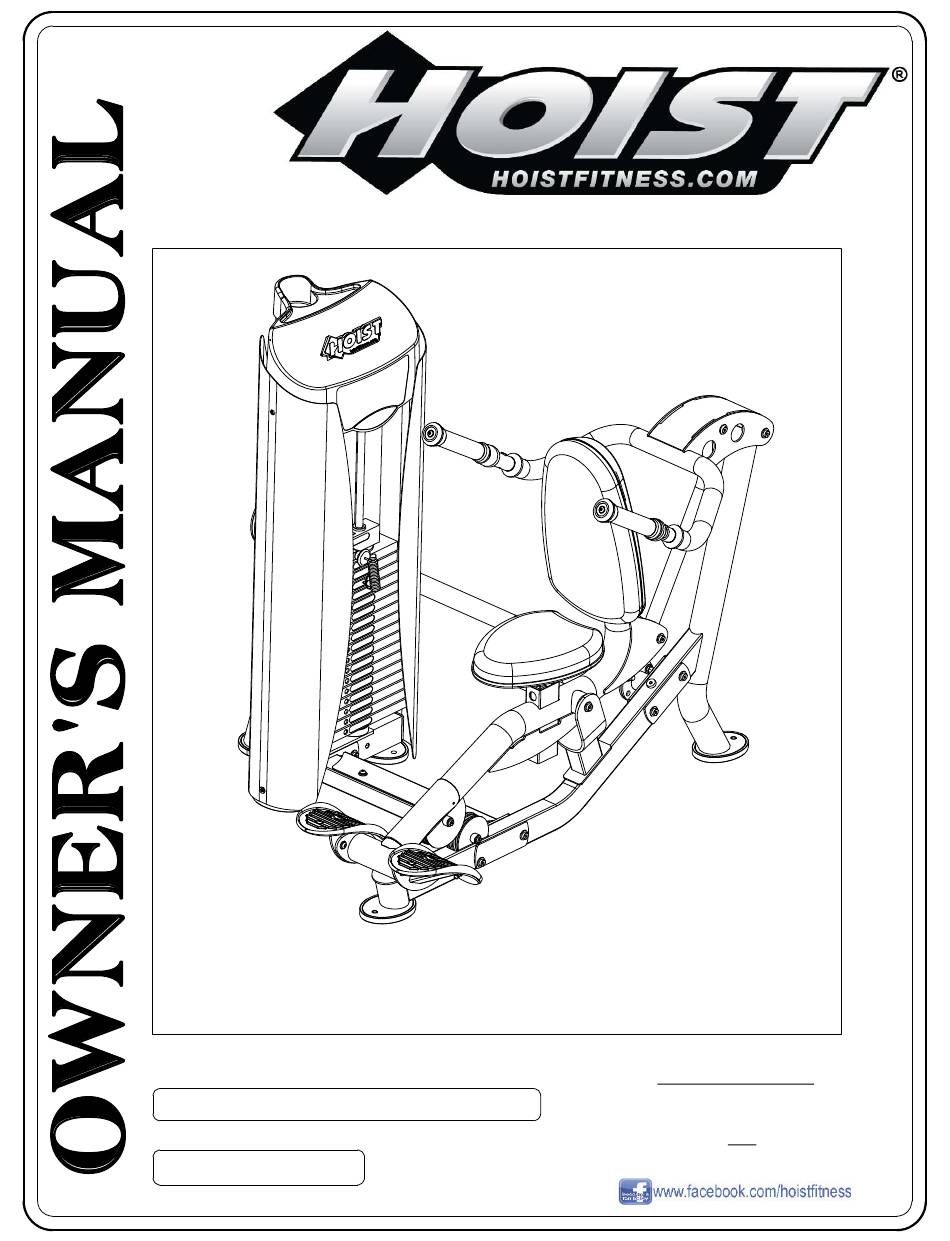

- Page 1 RS-1101-A SEATED DIP **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676...
-
Page 2: Table Of Contents
OWNER'S MANUAL CONTENTS INSTRUCTIONS ..............FRAME ASSEMBLY .............. PRE-ASSEMBLY..............DECAL PLACEMENT............. DECAL REFERENCE............. PART LIST................ABBREVIATIONS..............BOLT SIZING CHART............WASHER SIZING CHART............MAINTENANCE SCHEDULE..........GENERAL MAINTENANCE INFORMATION......WEIGHT TRAINING TIPS............EXERCISE LOG..............LIMITED WARRANTY............PAGE 01 RS-1101-A ASSEMBLY... -
Page 3: Instructions
OWNER'S MANUAL INSTRUCTIONS Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists. Use only HOIST replacement parts when servicing. - Page 4 OWNER'S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 RS-1101-A ASSEMBLY...
-
Page 5: Frame Assembly
OWNER'S MANUAL FRAME ASSEMBLY ALTERNATE WEIGHT CAGE POSITION ALTERNATE POSITION THE ROC-IT WEIGHT CAGE IS DESIGNED TO BE INSTALLED ON EITHER LEFT OR RIGHT SIDE OF THE RS-1101-A IN ORDER ACCOMMODATE THE USER RS-1101-A ASSEMBLY PAGE 04... - Page 6 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE (55). - HAND TIGHTEN ALL OTHER HARDWARE. - INSTALL CABLE (63) AND PULLEY (23) AT THE SAME TIME. ENSURE THE USE OF WEIGHT STACK #2 133 11/16" 3395 PAGE 05 RS-1101-A ASSEMBLY...
- Page 7 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE. RS-1101-A ASSEMBLY PAGE 06...
- Page 8 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. - REPEAT FOOT REST ASSEMBLY FOR OPPOSITE PAGE 07 RS-1101-A ASSEMBLY...
- Page 9 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. - INSTALL CABLE AND PULLEYS AT THE SAME TIME. CABLE BOLT JAM NUT FINE TUNING: LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION.
- Page 10 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 09 RS-1101-A ASSEMBLY...
- Page 11 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. RS-1101-A ASSEMBLY PAGE 10...
- Page 12 OWNER'S MANUAL FRAME ASSEMBLY NOTE: - WRENCH TIGHTEN HARDWARE. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. STOP WHEN FINISHED WITH THIS STEP PLEASE SEE ROC-IT WEIGHT CAGE MANUAL FOR FINAL ASSEMBLY. *IMPORTANT* NOW THAT THE RS-1101-A MACHINE IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR.
-
Page 13: Pre-Assembly
OWNER'S MANUAL PRE-ASSEMBLY RS-1101-A ASSEMBLY PAGE 12... -
Page 14: Decal Placement
OWNER'S MANUAL DECAL PLACEMENT NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 13 RS-1101-A ASSEMBLY... -
Page 15: Decal Reference
OWNER'S MANUAL DECAL REFERENCE 021-0003417 SERIAL # DECAL 021-0003427 021-0003416 021-0003544 021-0013300 021-0003322 021-0003093 021-0003851 021-0003934 RS-1101-A ASSEMBLY PAGE 14... -
Page 16: Part List
OWNER'S MANUAL PART LIST NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01X3754 MAIN FRAME ASSEMBLY 026-01X5655 BASE FRAME ASSEMBLY 026-01X2373 PRESS ARM ASSEMBLY 026-01X5656 LINK ASSEMBLY 026-01X2402 FOOT PLATE ASSEMBLY 026-01X2447 HANDLE ASSEMBLY 026-01X2581 CROSS MEMBER ASSEMBLY 026-01X2596... - Page 17 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01M1103 THREADED CABLE ANCHOR Ø1.00" O.D X 2.50" LG. 026-01M2360 SHAFT - 25mm X 4.71" LG. 026-01M0760 HEAVY FLANGED SPACER: Ø.67 O.D. X Ø.39 I.D. X .50 LG. 026-01M2629 SHAFT - 1.181"...
- Page 18 OWNER'S MANUAL PART LIST CONTINUED NOTE: SOME OF THESE PARTS MAY COME PRE-INSTALLED ITEM NO. PART NUMBER DESCRIPTION QTY. 026-01PL2511 BACK PAD PLASTIC BACKING 011-0116119 1/2"-13UNC X 4.00" LOW HEAD SHCS (Ni) 026-01X2975 FOOT PLATE MOUNT ASSEMBLY 014-0101020 BUSHING: OILITE FLANGED Ø.63" O.D. X Ø.38" I.D. X .50" LG. 026-01PL2520 PLASTIC SCUFF GUARD WITH RIVETS 011-0701003...
-
Page 19: Abbreviations
OWNER'S MANUAL ABBREVIATIONS BZ = Black Zinc WZ = White Zinc SS = Stainless Steel Ni = Nickel Plated HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw... -
Page 20: Bolt Sizing Chart
OWNER'S MANUAL BOLT SIZING CHART 1/4" HHB 5/16" HHB 3/8" HHB 1/2" HHB RECOMMENDED RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 6-8 ft-lbs 14-17 ft-lbs 24-30 ft-lbs 60-75 ft-lbs 3/8" BHCS 1/4" BHCS 5/16" BHCS 1/2" BHCS RECOMMENDED RECOMMENDED RECOMMENDED... -
Page 21: Washer Sizing Chart
OWNER'S MANUAL WASHER SIZING CHART 013-0102026 013-0102004 013-0002004 013-0402005 013-0102003 013-0002003 1/2" 1/4" 5/16" 3/8" 3/8" 1/2" FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER FLAT WASHER LARGE, USS, 34mm SMALL, SAE, 13mm LARGE, USS, 22mm SMALL, SAE, 21mm LARGE, USS, 25mm SMALL, SAE, 27mm 013-0402007... - Page 22 OWNER'S MANUAL WASHER SIZING CHART (CONTINUED) 026-01M0211 026-01M0760 026-01M0198 1/4" LONG 1/2" LONG HEAVY 1/2" LONG FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M211T 026-01M0532 026-01M0551 1/4" LONG HEAVY 11/16" LONG HEAVY 1" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0780 026-01M0788 026-01M0761...
-
Page 23: Maintenance Schedule
OWNER'S MANUAL MAINTENANCE SCHEDULE COMMERCIAL / HOME ROUTINE LATEST DATE ENTRY LIGHT COMMERCIAL MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; WEEKLY DAILY Upholstery Inspect; Cables or Belts and their WEEKLY DAILY tension Inspect;... -
Page 24: General Maintenance Information
OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment. *If the spring sticks or has lost its rigidity, replace it immediately. -
Page 25: Weight Training Tips
OWNER'S MANUAL WEIGHT TRAINING TIPS Use this manual to guide you through the basic exercises you can perform on your RS-1101-A HOIST® Fitness System. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. -
Page 26: Exercise Log
OWNER'S MANUAL PAGE 25 RS-1101-A ASSEMBLY... -
Page 27: Limited Warranty
Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
