Page 1: Connection Example Preset

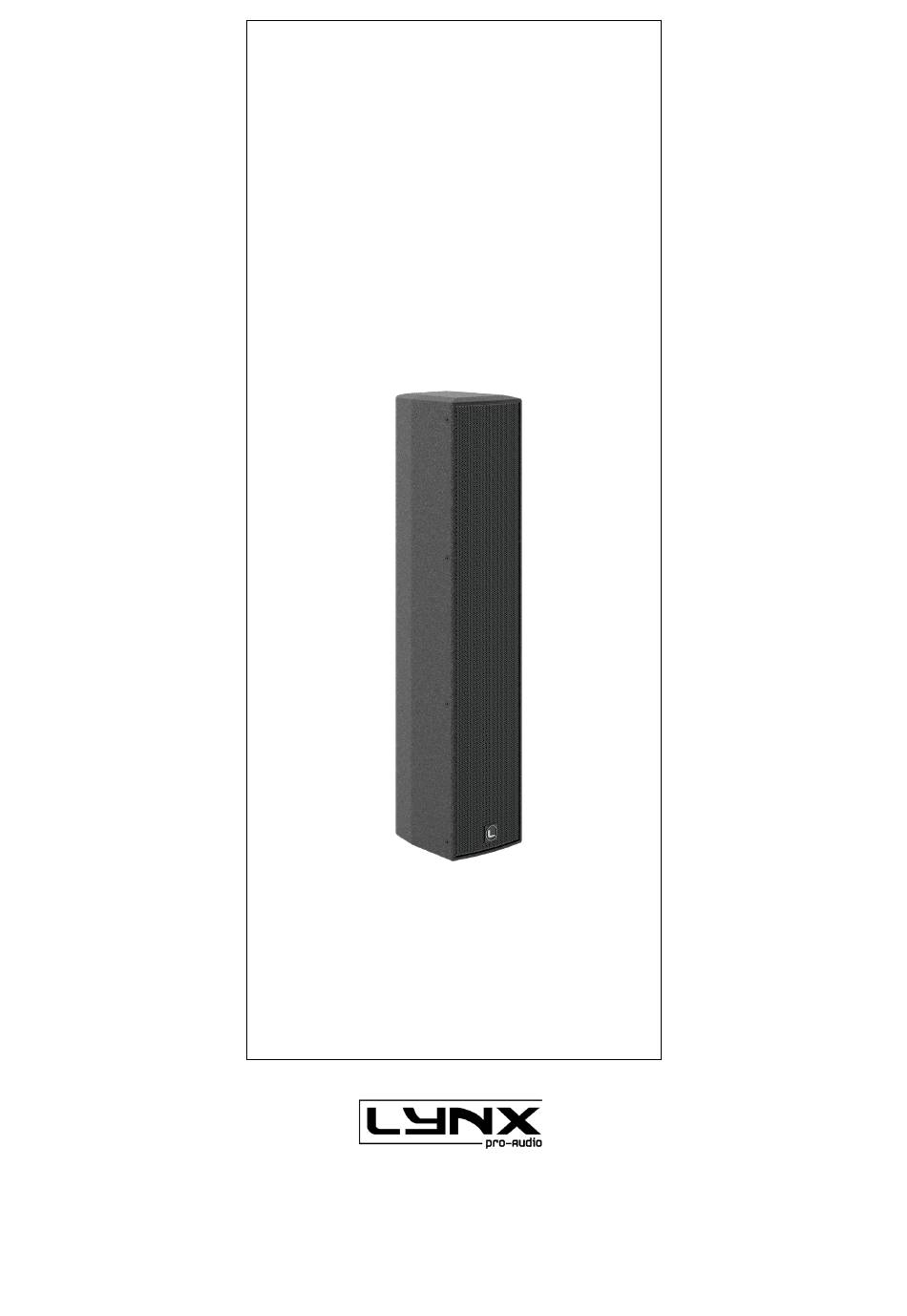

Ionic series USER MANUAL IONIC-V24 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com V.24.07... -
Page 2: Connection Example Preset
LYNX Pro Audio S.L. Calle 1 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2020. All rights reserved. -
Page 3: Table Of Contents
This manual describes the recommended installation procedure for the Ionic-V24. The Ionic series is Lynx Pro Audio’s answer to light, portable and permanent column speakers. The Ionic series comprise four full-range modular columns (Ionic-100, Ionic-50, Ionic -v24 and Ionic- v28), one small coaxial cabinet (Ionic-5CX) and two subwoofers (Ionic-18S and Ionic-12S). - Page 4 “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only flying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. • Delicate Material Please ensure no foreign object or water enters the speaker.
-
Page 5: System Overview
2: Calculated based on power rating and measured sensitivity processed. • Ionic v-24 measurements • Ionic v24 column back panel Installation kit fixing points Input Speakon +1/-1 Loop thru Input Speakon +1/-1 Loop thru Installation kit fixing points Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 6: Connectors And Connections
NAC3PX-TOP NAC3FX-W TOP NAC3MX-W-TOP NAC3MX-W TOP NAC3FX-W-TOP XLR SOCKET CONNECTORS XLR AEREAL CONNECTORS INPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) OUTPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 7: Acoustic Centre
Note that the Lynx round logo indicates which way is up, so you can see when a column is upside down, when you see that the round logo of the cabinet is at the top of the column, and the L is inverted. - Page 8 Ionic Series User Manual CONNECTORS AND CONNECTIONS • CONNECTION EXAMPLE (mono channel): Ionic-v24 + one Ionic-12S PRESET 1 ACOUSTIC CENTRE Connect to power input Speakon +1/-1 Connect to power output Speakon +1/-1 Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 9 • CONNECTION EXAMPLE (mono channel): 2 Ionic-v24 + 1 Ionic-12S PRESET 2 Cabinet placed upside down Speakon +1/-1 Connect to ACOUSTIC CENTRE power input Speakon +1/-1 Speakon +1/-1 Connect to power input Connect to power output Speakon +1/-1 Lynx Pro Audio S.L www.lynxproaudio.com...
- Page 10 CONNECTORS AND CONNECTIONS • CONNECTION EXAMPLE (mono channel): 4 Ionic-v24 + 1 Ionic-12S PRESET 3 Connect to power input Connect to Connect to Connect to power input power input power input Connect to power output Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 11: Configuring The Digital Signal Processor
You can check the compressor and control the dynamic activity. On the second screen you can modify some parameters. • Gain • Mute • Polarity • Delay • Xover: You can setup a High Pass filter selecting type, frequency and order. Lynx Pro Audio S.L www.lynxproaudio.com... - Page 12 Here you can see the cabinet model, its serial number, DSP DSP Fw v1.4.3 firmware and hardware versions, amp module model with DSP Hw v5 hardware version, as well as the accelerometer status. Amplifier: LiteMod 4HC Amplifier Hw v.1 Accelerometer detected Lynx Pro Audio S.L www.lynxproaudio.com...
-
Page 13: Online Control System
User Manual ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 14: Rainbow 3D Acoustic Simulation Software
• Multiple listening zones The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and front views. It can also define multiple listening zones and allows offset positioning and symmetry. -
Page 15: Wall Installation
This is the way to install Ionic-v24 column speakers into walls. These column speakers are ideal for clubs, theatres, houses of worship, public buildings and commercial complex applications. Cabinet placed upside down WB-1 WB-1 ACOUSTIC CENTRE SV-21 ACOUSTIC CENTRE Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 16: Hardware And Accessories
The Ionic cabinets offer a variety of practical accessories to help use the system in a number of applications. WB-120 Wall bracket for column SV - 23 installation – inclinable Wall bracket SV-POLE 35mm inclinable Pole adaptor Lynx Pro Audio S.L www.lynxproaudio.com... -
Page 17: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 18 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts.
